A1 = 750 mm, W1 = 500 mm
Article number 950.22.13099 92

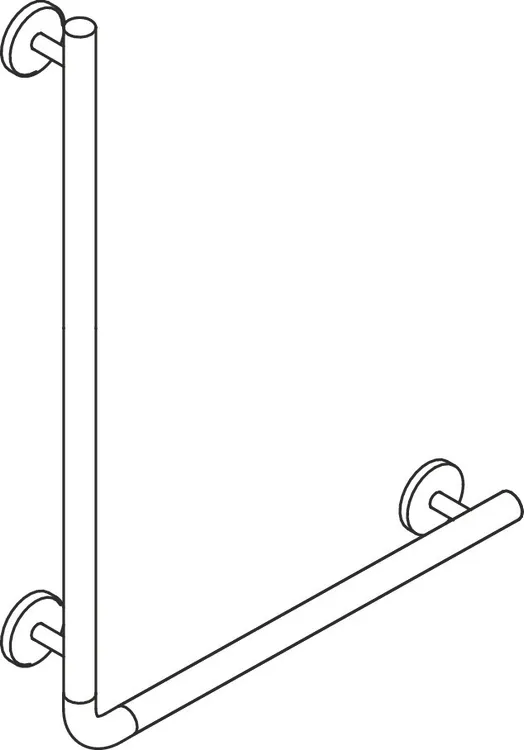

HEWI L-shaped support rail
Polyamide, high gloss, supports and roses made of high-quality polyamide in HEWI colour 99 (Pure white), Horizontal length 500 mm, vertical length 750 mm, diameter 33 mm, Can be mounted on the left and right, tested up to 200 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg, fulfils the ÖNORM B1600/1601 requirements.
Show more Polyamide, high gloss, supports and roses made of high-quality polyamide in HEWI colour 99 (Pure white), Horizontal length 500 mm, vertical length 750 mm, diameter 33 mm, Can be mounted on the left and right, tested up to 200 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg, fulfils the ÖNORM B1600/1601 requirements.
Current color: 92 (anthracite grey)
EAN
4014885416456
article group
L-shaped support rail
Version
continuous steel core/ steel fixing roses
Size
750 x 500 mm
Colour
Angle
90° L-shaped support rail
Material
Polyamide
L-shaped support rail System 800 K
- Rails arranged vertically and horizontally, rods connected at right angles
- Used for holding and supporting
- Angled handle made of high-quality polyamide according to HEWI colour chart
- Supports and rosettes made of high-quality polyamide in HEWI colour 99 (pure white)
- With continuous, corrosion-resistant steel core
- horizontal length 500 mm, vertical length 750 mm, 90 mm depth, Rod diameter 33 mm
- Wall connection with filigree supports straight to the wall (diameter 18 mm) and flat rosettes
- Rosette diameter 80 mm, cap height 13 mm
- Simple installation thanks to individually mountable fastening plates made of high-quality stainless steel for attaching the angled handle
- Can be mounted on the right and left side
- tested up to 200 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- including corrosion-free HEWI fixing material
- fulfils the requirements of ÖNORM B1600/1601
- Rails arranged vertically and horizontally, rods connected at right angles
- Used for holding and supporting
- Angled handle made of high-quality polyamide according to HEWI colour chart
- Supports and rosettes made of high-quality polyamide in HEWI colour 99 (pure white)
- With continuous, corrosion-resistant steel core
- horizontal length 500 mm, vertical length 750 mm, 90 mm depth, Rod diameter 33 mm
- Wall connection with filigree supports straight to the wall (diameter 18 mm) and flat rosettes
- Rosette diameter 80 mm, cap height 13 mm
- Simple installation thanks to individually mountable fastening plates made of high-quality stainless steel for attaching the angled handle
- Can be mounted on the right and left side
- tested up to 200 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- including corrosion-free HEWI fixing material
- fulfils the requirements of ÖNORM B1600/1601
Downloads
| 2D drawing | DXF | |
| 3DF | DXF | |
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| Ausschreiben.de | Link | |
| Colour Chart | Link |
