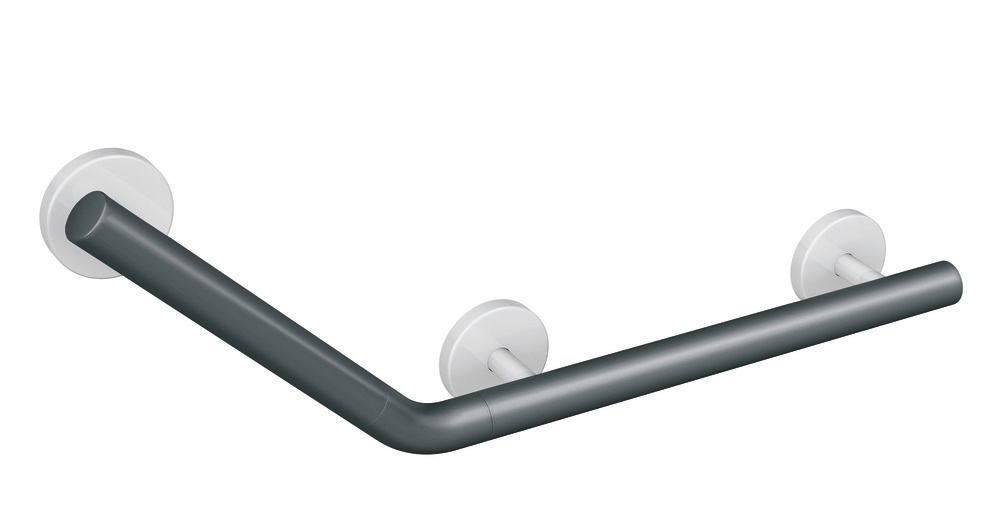

L-shaped support rail

L-shaped support rail System 800 K
- rods connected at a shallow angle
- Used for holding and supporting
- Angled handle made of high-quality polyamide according to HEWI colour chart
- Supports and rosettes made of high-quality polyamide in HEWI colour 99 (pure white)
- With continuous, corrosion-resistant steel core
- Axle dimensions 264 mm, 295 mm and 169 mm, Angle 135°, 90 mm deep, Rod diameter 33 mm
- Increased stability thanks to 3 mounting supports
- Wall connection with filigree supports straight to the wall (diameter 18 mm) and flat rosettes
- Rosette diameter 80 mm, cap height 13 mm
- Simple installation thanks to individually mountable fastening plates made of high-quality stainless steel for attaching the angled handle
- Can be mounted on the right and left side
- tested up to 200 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- including corrosion-free HEWI fixing material
