A1 = 1000 mm, W1 = 500 mm
Article number 805.22.140L

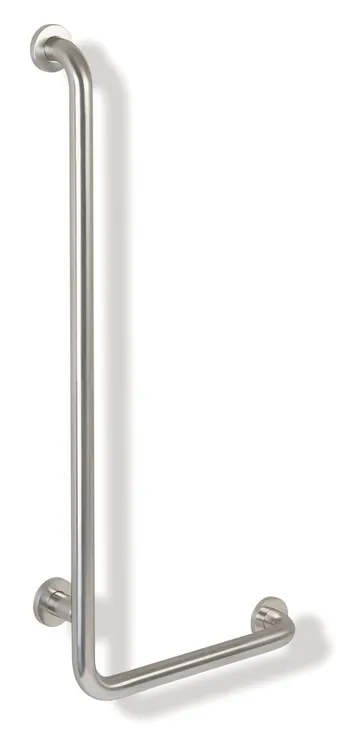

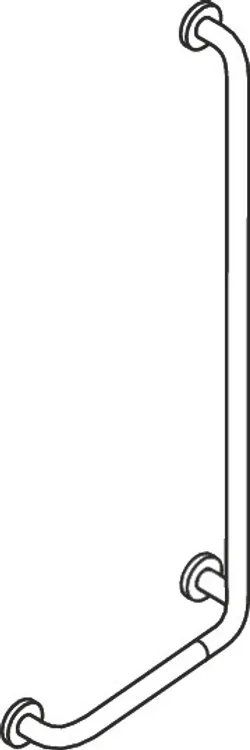

HEWI L-shaped support rail, left-hand version
Stainless steel, matt polished, Horizontal length 500 mm, vertical length 1000 mm, diameter 33 mm, left-hand version, tested up to 200 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg, fulfils the SIA 500 requirements.
Show more Stainless steel, matt polished, Horizontal length 500 mm, vertical length 1000 mm, diameter 33 mm, left-hand version, tested up to 200 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg, fulfils the SIA 500 requirements.
EAN
4014884975343
article group
L-shaped support rail
Version
left (user perspective)
Size
1000 x 500 mm
Angle
90° L-shaped support rail
Material
Stainless steel
Series 805 Classic angled handle
- left-hand version
- Rails arranged vertically and horizontally, Rods connected at right angles with steel fixing rosettes
- Used for holding and supporting

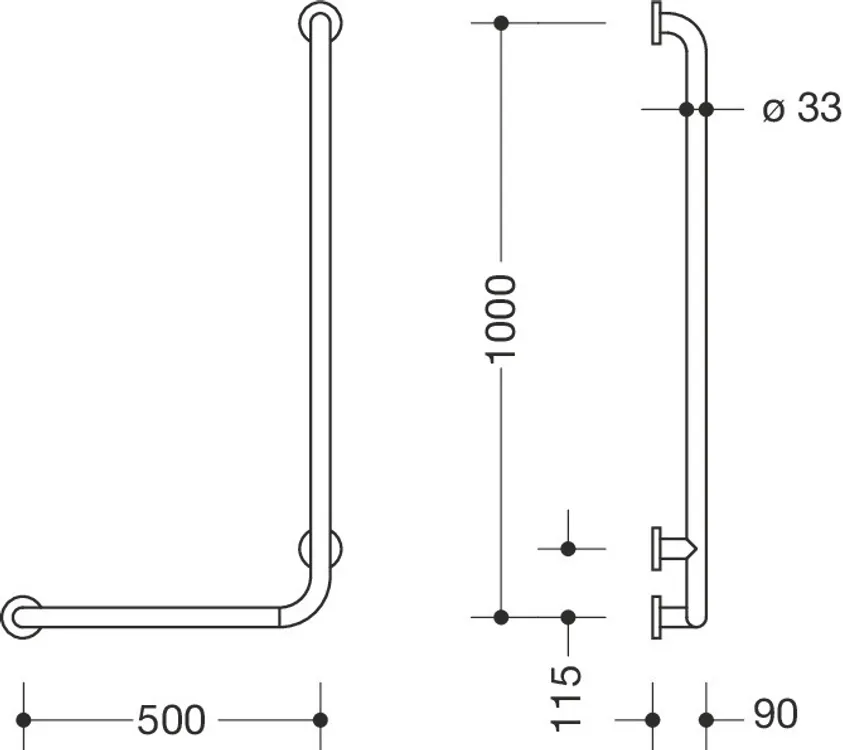

- horizontal length 500 mm, vertical length 1000 mm
- Depth 90 mm , Clearance to the wall 57 mm , Rod diameter 33 mm, Tube thickness 2 mm, Rosette diameter 70 mm
- Wall mounting with wall-specific mounting material and HEWI rosettes
- tested up to 200 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- Made from high-quality stainless steel, Matt ground surface
- Toilet paper holder upgrade kit 805.50.015 and toilet flush release upgrade kit (radio) 805.50.060 can be retrofitted
- Fulfils the SIA 500 requirements
- left-hand version
- Rails arranged vertically and horizontally, Rods connected at right angles with steel fixing rosettes
- Used for holding and supporting
- horizontal length 500 mm, vertical length 1000 mm
- Depth 90 mm , Clearance to the wall 57 mm , Rod diameter 33 mm, Tube thickness 2 mm, Rosette diameter 70 mm
- Wall mounting with wall-specific mounting material and HEWI rosettes
- tested up to 200 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- Made from high-quality stainless steel, Matt ground surface
- Toilet paper holder upgrade kit 805.50.015 and toilet flush release upgrade kit (radio) 805.50.060 can be retrofitted
- Fulfils the SIA 500 requirements
Downloads
| 2D drawing | DXF | |
| 3DF | DXF | |
| Product data sheet | ||
| Installation instructions |
