Article number 805.22.200R

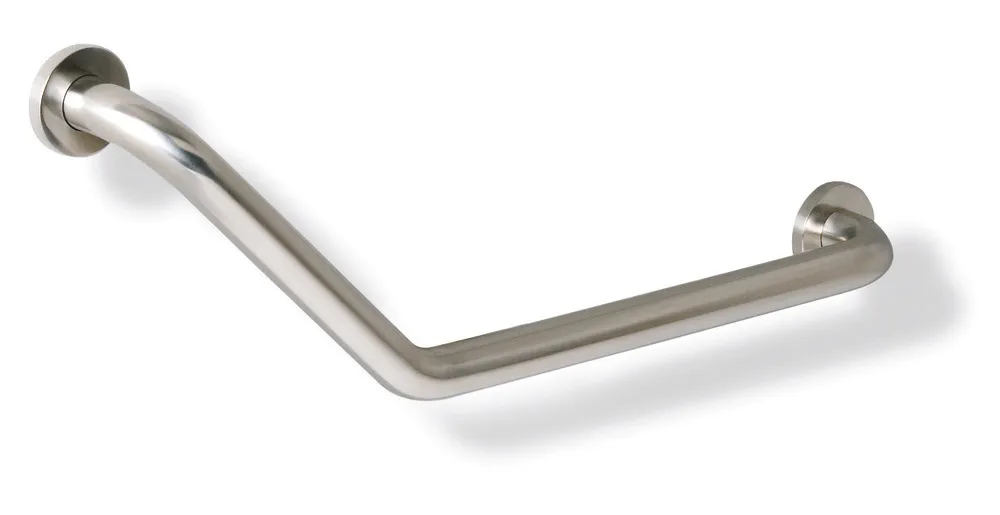

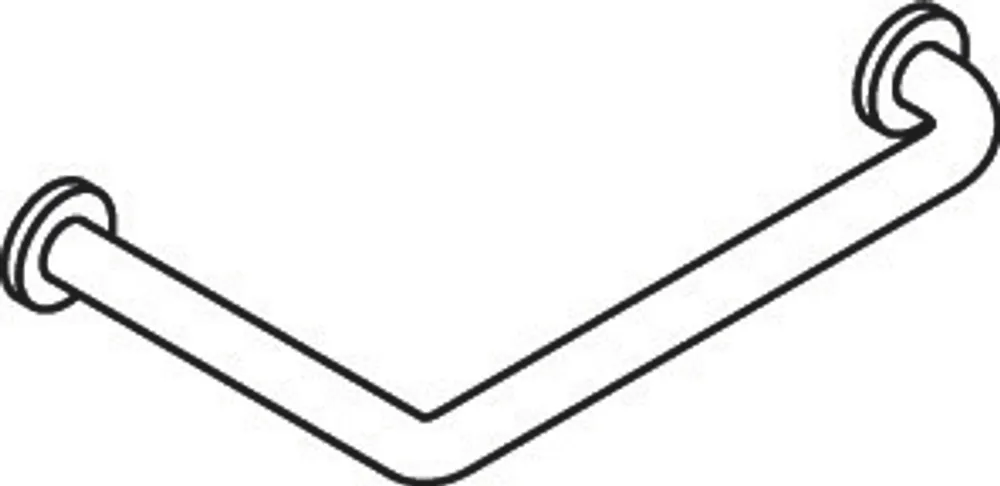

HEWI Range 805 L-shaped support rail
right-hand version, rails joined at an obtuse angle (> 45°) with fixing roses, centre-to-centre 620 mm and 200 mm, angle 135 °, 200 mm high, 90 mm deep, rail diameter 33 mm, rose diameter 70 mm, made of high-quality stainless steel, Surface satin finished, incl. non-corrosive HEWI fixing material.
Show more right-hand version, rails joined at an obtuse angle (> 45°) with fixing roses, centre-to-centre 620 mm and 200 mm, angle 135 °, 200 mm high, 90 mm deep, rail diameter 33 mm, rose diameter 70 mm, made of high-quality stainless steel, Surface satin finished, incl. non-corrosive HEWI fixing material.
EAN
4014884929810
article group
L-shaped support rail
Version
right (user perspective)
Size
620 x 200 mm
Angle
135° L-shaped support rail
Material
Stainless steel
Range 805 L-shaped support rail
- right-hand version
- rails joined at a flat angle with fixing roses
- for holding on to and providing support
- for wall mounting with special HEWI fixing materials and roses

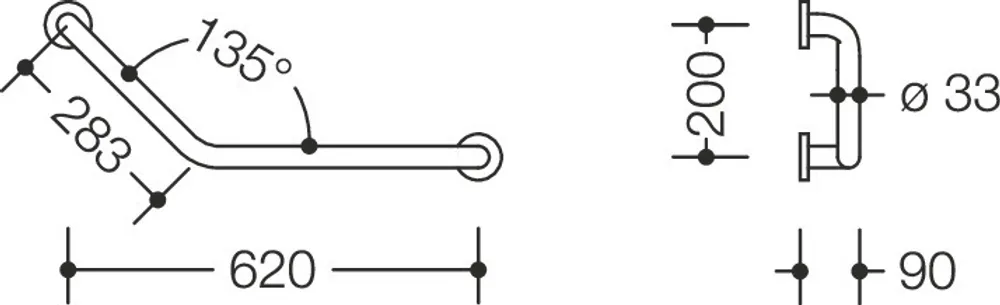

- centre-to-centre dimensions 620 mm and 200 mm, 135° angle, 200 mm high, 90 mm deep
- bar diameter 33 mm, tube thickness 2 mm, rose diameter 70 mm
- made of high-quality stainless steel, satin surface finish
- toilet roll holder upgrade kit 805.50.015, can be retrofitted
- right-hand version
- rails joined at a flat angle with fixing roses
- for holding on to and providing support
- for wall mounting with special HEWI fixing materials and roses
- centre-to-centre dimensions 620 mm and 200 mm, 135° angle, 200 mm high, 90 mm deep
- bar diameter 33 mm, tube thickness 2 mm, rose diameter 70 mm
- made of high-quality stainless steel, satin surface finish
- toilet roll holder upgrade kit 805.50.015, can be retrofitted
Downloads
| 2D drawing | DXF | |
| 3DF | DXF | |
| Product data sheet | ||
| Installation instructions |
