Article number 900.50.41760 DC}

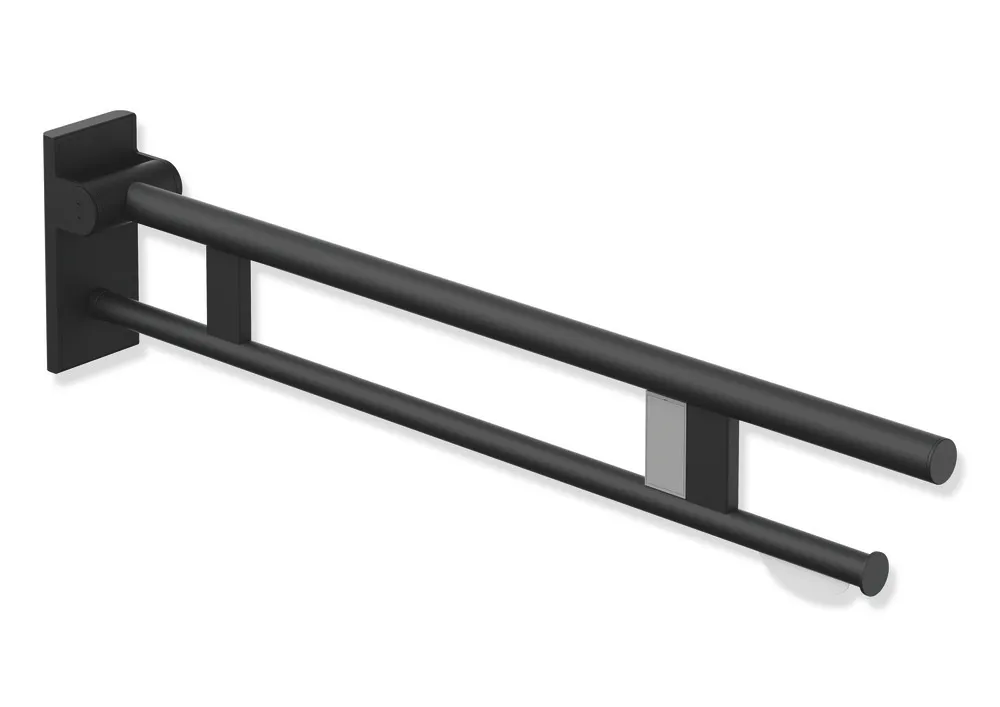

Mobile HEWI duo hinged support rail, design (A), System 900
two parallel, round bars one on top of each other, stainless steel, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica), w/toilet roll holder and flushing mechanism, right-hand version, suitable for radio-controlled WC flushing systems made by Geberit, Friatec, Mepa, Sanit, Viega, TECE and Grohe, for mobile use, for retrofitting on mounting plate 900.50.00160, must be ordered separately, blue button (wave symbol) for triggering toilet flushing mechanism, projection 900 mm, 210 mm high and 101 mm wide, dia. of upper rail 33.7 mm, bottom rail 25 mm, weight capacity up to 100 kg, produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices.Fulfils ÖNORM B1600/1601 requirements.
Show more
two parallel, round bars one on top of each other, stainless steel, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica), w/toilet roll holder and flushing mechanism, right-hand version, suitable for radio-controlled WC flushing systems made by Geberit, Friatec, Mepa, Sanit, Viega, TECE and Grohe, for mobile use, for retrofitting on mounting plate 900.50.00160, must be ordered separately, blue button (wave symbol) for triggering toilet flushing mechanism, projection 900 mm, 210 mm high and 101 mm wide, dia. of upper rail 33.7 mm, bottom rail 25 mm, weight capacity up to 100 kg, produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices.Fulfils ÖNORM B1600/1601 requirements.
Current color: DC (matt black)
EAN
4014885572718
Function
hinged
Version
right (user perspective)
Size
900 mm
Colour
Wall plate
Design A
Variant
Toilet roll holder / WC flushing mechanism (radio-controlled)
Assembly
mobile
Material
Powder-coated
This article is also available in special colours.
Duo mobile hinged support rail, System 900
- two parallel, round gripping levels arranged on top of each other
- with toilet roll holder and radio-controlled toilet flushing mechanism
- right-hand version
- can be folded upwards and folded downwards with braked movement
- for mobile use
- for easy and flexible retrofitting on existing, preassembled mounting plate 900.50.00160, must be ordered separately
- toolless and quick installation by simple attachment of the hinged support rail
- secured by fixing screw to prevent unintentional removal
- blue button (wave symbol) for triggering the toilet flushing mechanism
- transmission frequency 868.4 MHz
- suitable for radio-controlled toilet flushing systems made by Geberit, Friatec, Mepa, Sanit, Viega, TECE and Grohe
- projection 900 mm, 210 mm high and 101 mm wide, top rail diameter 33.7 mm, bottom rail diameter 25 mm
- weight capacity up to 100 kg
- made of stainless steel, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica)
- floor supports 900.50.02060 and 900.50.02160 for retrofitting
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- fulfils the ÖNORM B1600/1601 requirements
- two parallel, round gripping levels arranged on top of each other
- with toilet roll holder and radio-controlled toilet flushing mechanism
- right-hand version
- can be folded upwards and folded downwards with braked movement
- for mobile use
- for easy and flexible retrofitting on existing, preassembled mounting plate 900.50.00160, must be ordered separately
- toolless and quick installation by simple attachment of the hinged support rail
- secured by fixing screw to prevent unintentional removal
- blue button (wave symbol) for triggering the toilet flushing mechanism
- transmission frequency 868.4 MHz
- suitable for radio-controlled toilet flushing systems made by Geberit, Friatec, Mepa, Sanit, Viega, TECE and Grohe
- projection 900 mm, 210 mm high and 101 mm wide, top rail diameter 33.7 mm, bottom rail diameter 25 mm
- weight capacity up to 100 kg
- made of stainless steel, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica)
- floor supports 900.50.02060 and 900.50.02160 for retrofitting
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- fulfils the ÖNORM B1600/1601 requirements
