Article number 950.50.13150}
HEWI Duo hinged support rail, mobile
with two gripping levels arranged above each other, upper rail diameter 33 mm, bottom rail 25 mm diameter, projection 850 mm, bracket 181 mm high and 130 mm wide, weight capacity to 100 kg to DIN 18040, made environmentally friendly of chrome-look coated polyamide, with continuous, corrosion resistant steel core, with bracket cover made of environmentally friendly chrome-look coated polyamide, produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices. Mounting only possible in conjunction with the matching wall plate. Wall Specific HEWI Fixing material to be ordered separately.
Show more
with two gripping levels arranged above each other, upper rail diameter 33 mm, bottom rail 25 mm diameter, projection 850 mm, bracket 181 mm high and 130 mm wide, weight capacity to 100 kg to DIN 18040, made environmentally friendly of chrome-look coated polyamide, with continuous, corrosion resistant steel core, with bracket cover made of environmentally friendly chrome-look coated polyamide, produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices. Mounting only possible in conjunction with the matching wall plate. Wall Specific HEWI Fixing material to be ordered separately.
EAN
4014884981795
Function
hinged
Version
suitable for both sides
Size
850 mm
Variant
without additional function
Assembly
mobile
Material
Chrome
Insert
Steel core
Supplied only with wall-specific HEWI fixing material (Stainless steel).
Mobile hinged support rail Duo WARM TOUCH
- for easy and flexible retrofitting on existing, preassembled mounting plate: 950.50.01440, must be ordered separately
- for mobile use
- with two gripping levels arranged above each other
- upper rail is merged with the top rail at an angle of 135°
- upper rail (diameter 33 mm) for holding on to and providing support

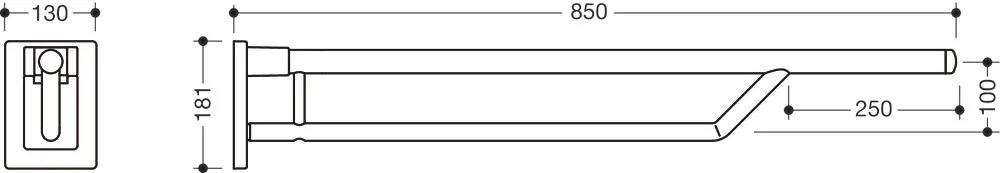

- bottom rail (diameter 25 mm) starts at a distance of 250 mm from the front edge of the upper rail and is used for holding on to and for turning in from the side
- 850 mm projection, bracket 181 mm high and 130 mm wide
- can be folded upwards and, folded downwards with braking mechanism
- made of chrome-look coated polyamide that is warm to touch
- with continuous, anti-corrosion steel core and integrated bracket made of metal with cover made of chrome-look coated polyamide
- tool-free and quick installation by means of short, simple hanging
- secured against unintentional removal
- unlocking for flexible use by spring actuation
- with toilet roll holder 950.50.01050, toilet roll holder with WC flushing mechanism 950.50.07090 (right), 950.50.07190 (left), and floor supports 950.50.020XA, 950.50.025XA and 950.50.026XA for retrofitting
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- fulfils the DIN 18040, ÖNORM B1600/1601 and SIA 500 requirements
- weight capacity 100 kg
- for easy and flexible retrofitting on existing, preassembled mounting plate: 950.50.01440, must be ordered separately
- for mobile use
- with two gripping levels arranged above each other
- upper rail is merged with the top rail at an angle of 135°
- upper rail (diameter 33 mm) for holding on to and providing support
- bottom rail (diameter 25 mm) starts at a distance of 250 mm from the front edge of the upper rail and is used for holding on to and for turning in from the side
- 850 mm projection, bracket 181 mm high and 130 mm wide
- can be folded upwards and, folded downwards with braking mechanism
- made of chrome-look coated polyamide that is warm to touch
- with continuous, anti-corrosion steel core and integrated bracket made of metal with cover made of chrome-look coated polyamide
- tool-free and quick installation by means of short, simple hanging
- secured against unintentional removal
- unlocking for flexible use by spring actuation
- with toilet roll holder 950.50.01050, toilet roll holder with WC flushing mechanism 950.50.07090 (right), 950.50.07190 (left), and floor supports 950.50.020XA, 950.50.025XA and 950.50.026XA for retrofitting
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- fulfils the DIN 18040, ÖNORM B1600/1601 and SIA 500 requirements
- weight capacity 100 kg
