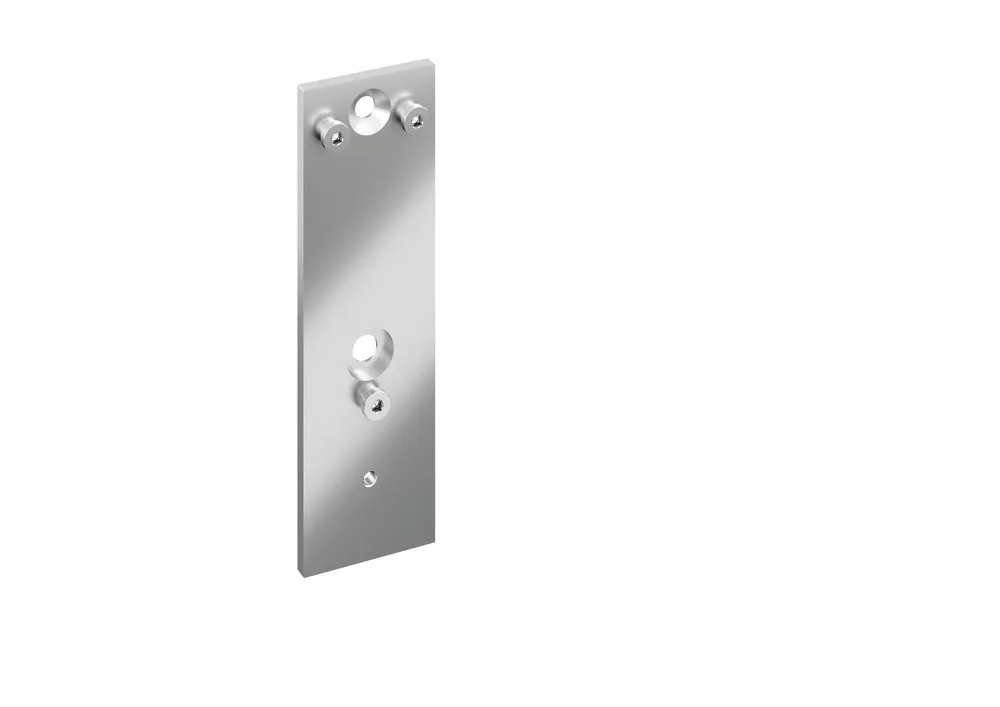

HEWI Mounting plate for mobile hinged support rails, Series 805 Classic and Series 801
Rectangular mounting plate with fixing screw, serves to hold and fix the mobile hinged support rails 805.50.1..., 805.50.2..., 801.50.1..., 801.50D1..., 801.50B1..., 801.50.2..., 801.50D2... and 801.50B2..., 74 mm wide, 249 mm high, 18 mm deep, made of stainless steel, satin finish, for mounting with corrosion-free and tested HEWI fixing material for different wall structures (to be ordered separately). Sealing tape for sealing the fixing points is included in the scope of delivery.
Show more
Rectangular mounting plate with fixing screw, serves to hold and fix the mobile hinged support rails 805.50.1..., 805.50.2..., 801.50.1..., 801.50D1..., 801.50B1..., 801.50.2..., 801.50D2... and 801.50B2..., 74 mm wide, 249 mm high, 18 mm deep, made of stainless steel, satin finish, for mounting with corrosion-free and tested HEWI fixing material for different wall structures (to be ordered separately). Sealing tape for sealing the fixing points is included in the scope of delivery.
EAN
4014885618201
Material
Stainless steel
Mounting plate for mobile hinged support rails, Series 805 Classic and Series 801
- rectangular mounting plate with fixing screw
- serves to hold and fix the mobile hinged support rails 805.50.1..., 805.50.2..., 801.50.1..., 801.50D1..., 801.50B1..., 801.50.2..., 801.50D2... and 801.50B2...

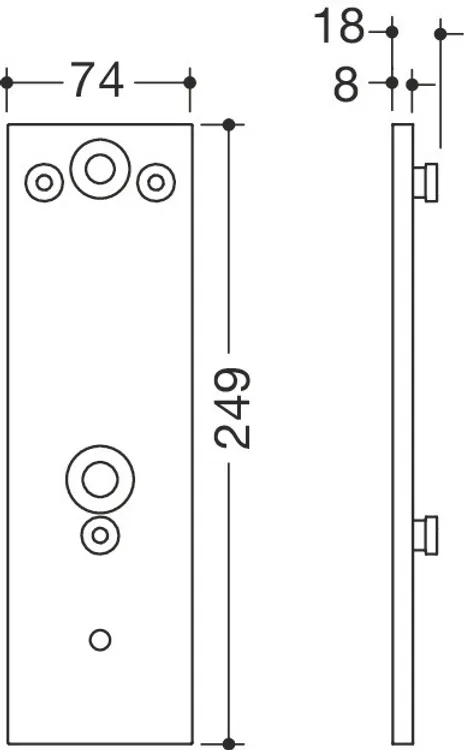

- 74 mm wide, 249 mm high, 18 mm deep
- made of stainless steel, satin finish
- for mounting with corrosion-free and tested HEWI fixing material for different wall structures (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of delivery
- rectangular mounting plate with fixing screw
- serves to hold and fix the mobile hinged support rails 805.50.1..., 805.50.2..., 801.50.1..., 801.50D1..., 801.50B1..., 801.50.2..., 801.50D2... and 801.50B2...
- 74 mm wide, 249 mm high, 18 mm deep
- made of stainless steel, satin finish
- for mounting with corrosion-free and tested HEWI fixing material for different wall structures (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of delivery
Downloads
| Fixing types | ||
| Ordering aid HEWI_Ordering-aid_S801_805C_Mobile-hinged-support-rails.pdf | ||
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| Colour Chart | Link | |
| Product video 1 | Link |
