Article number 950.50.10090 98
HEWI Mounting plate
rectangular mounting plate made of stainless steel, with matching, rectangular cover made of synthetic material, HEWI colour 98 (signal white), used to hold the mobile hinged support rails, 130 mm wide, 181 mm high and 22 mm deep, for mounting with non-corrosive and tested fixing materials for different wall systems (to be ordered separately), produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices, Wall Specific HEWI Fixing material to be ordered separately.
Show more
rectangular mounting plate made of stainless steel, with matching, rectangular cover made of synthetic material, HEWI colour 98 (signal white), used to hold the mobile hinged support rails, 130 mm wide, 181 mm high and 22 mm deep, for mounting with non-corrosive and tested fixing materials for different wall systems (to be ordered separately), produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices, Wall Specific HEWI Fixing material to be ordered separately.
Current color: 98 (signal white)
![CE-Kennzeichen CE-Kennzeichen](https://catalog.hewi.com/storage/downloads/ce_kennzeichen.png)
EAN
4014884977316
Colour
Material
Polyamide
Supplied only with wall-specific HEWI fixing material (Stainless steel).

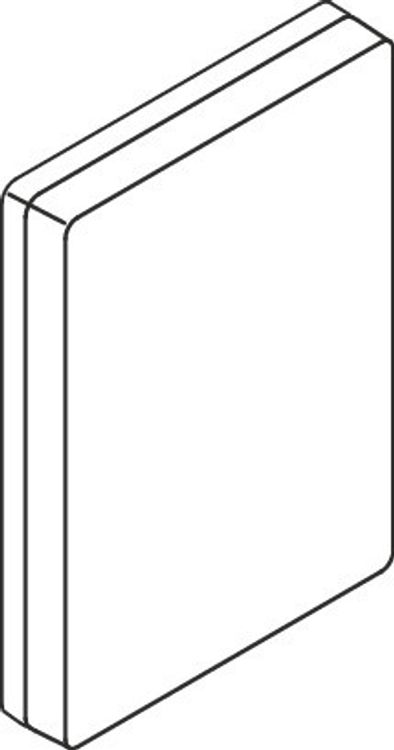

Mounting plate with cover for mobile hinged support rails
- rectangular mounting plate with matching, rectangular cover
- used to hold the mobile hinged support rails

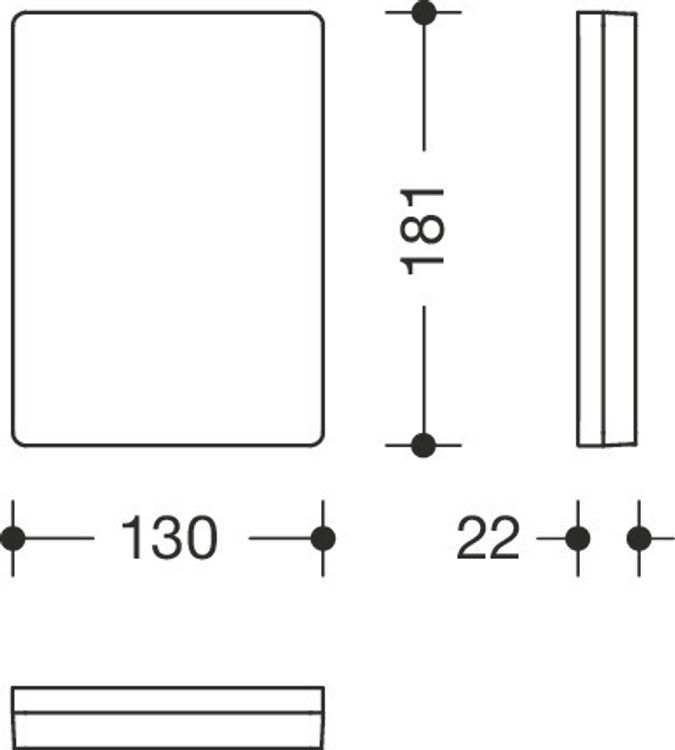

- 130 mm wide, 181 mm high and 22 mm deep
- mounting plate made of stainless steel
- for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of supply
- cover made of high-quality synthetic material in the HEWI colour 98 (signal white) or 99 (pure white)
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- rectangular mounting plate with matching, rectangular cover
- used to hold the mobile hinged support rails
- 130 mm wide, 181 mm high and 22 mm deep
- mounting plate made of stainless steel
- for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of supply
- cover made of high-quality synthetic material in the HEWI colour 98 (signal white) or 99 (pure white)
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
Downloads
Documents
Colour Chart | Link |
Mounting plate with cover
Article number 950.50.10090 98
