{Article number 805.06.500 99}

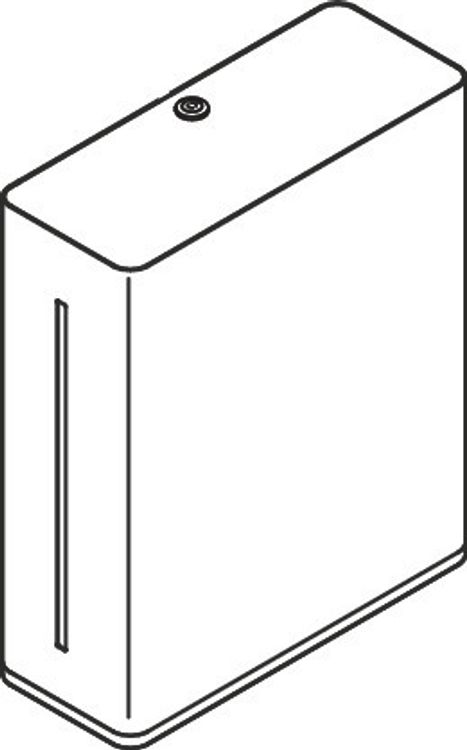

HEWI Range 805 Paper towel dispenser
cubic body with recessed wall base, used to hold standard paper towels with width from 240 - 250 mm and folded length / depth of 90 - 100 mm. (HEWI recommends paper towels with C-fold in folding position), capacity approx. 300 - 450 paper towels, 301 mm wide, 360 mm high and 120 mm deep, wall-mounted base 15 mm deep, made of high-quality stainless steel, Surface satin finished, opening made of high-quality polyamide in HEWI colours 90 (jet black), 92 (anthracite grey), 98 (signal white) or 99 (pure white).
Show more
cubic body with recessed wall base, used to hold standard paper towels with width from 240 - 250 mm and folded length / depth of 90 - 100 mm. (HEWI recommends paper towels with C-fold in folding position), capacity approx. 300 - 450 paper towels, 301 mm wide, 360 mm high and 120 mm deep, wall-mounted base 15 mm deep, made of high-quality stainless steel, Surface satin finished, opening made of high-quality polyamide in HEWI colours 90 (jet black), 92 (anthracite grey), 98 (signal white) or 99 (pure white).
Current color: 99 (pure white)
EAN
4014884937600
Version
manual
Colour
Material
Stainless steel
Range 805 Paper towel dispenser
- cubic body with recessed wall base
- used to hold standard paper towels with width from 240 - 250 mm and folded length / depth of 90 - 100 mm. (HEWI recommends paper towels with C-fold in folding position)
- capacity approx. 300 - 450 paper towels
- side level indicator
- with locking system as protection against misuse
- 301 mm wide, 360 mm high and 120 mm deep, wall-mounted base 15 mm deep
- for wall mounting
- made of high-quality stainless steel, satin surface finish
- opening made of high-quality polyamide in HEWI colours 90 (jet black), 92 (anthracite grey), 98 (signal white) or 99 (pure white)
- cubic body with recessed wall base
- used to hold standard paper towels with width from 240 - 250 mm and folded length / depth of 90 - 100 mm. (HEWI recommends paper towels with C-fold in folding position)
- capacity approx. 300 - 450 paper towels
- side level indicator
- with locking system as protection against misuse
- 301 mm wide, 360 mm high and 120 mm deep, wall-mounted base 15 mm deep
- for wall mounting
- made of high-quality stainless steel, satin surface finish
- opening made of high-quality polyamide in HEWI colours 90 (jet black), 92 (anthracite grey), 98 (signal white) or 99 (pure white)
Design awards
Awarded by
Downloads
| 2D drawing | DXF | |
| 3DF | DXF | |
| 3DV | DXF | |
| Product data sheet | ||
| Installation instructions | ||
| Assembly note | ||
| Cleaning and Care Instructions |
Documents
| BIM | Link | |
| Colour Chart | Link |
Paper towel dispenser
{Article number 805.06.500 99}
