Article number 950.19.040 99

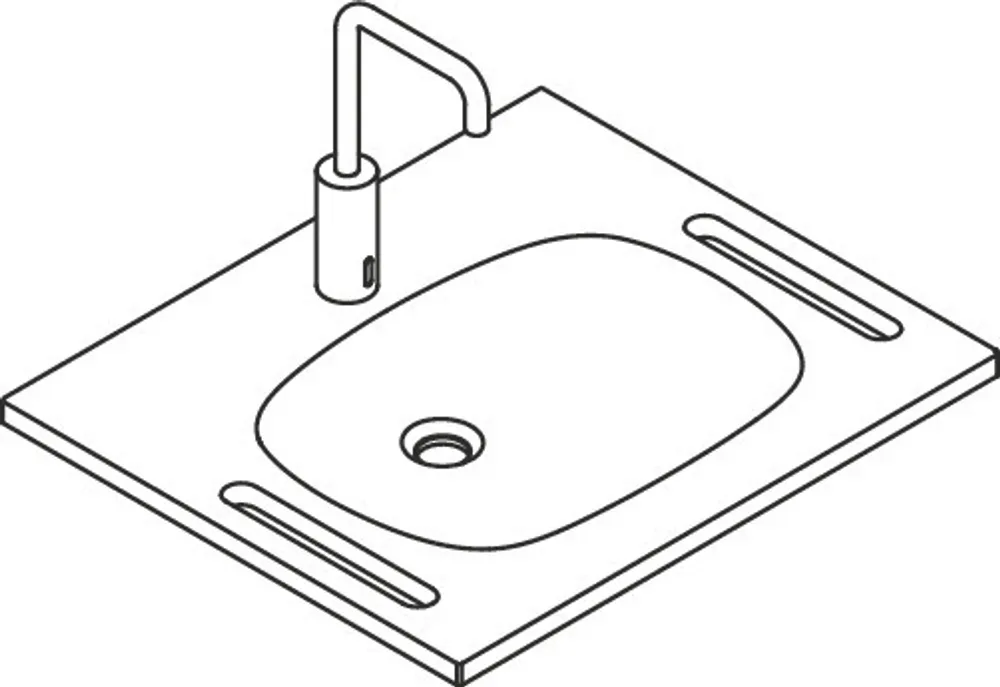

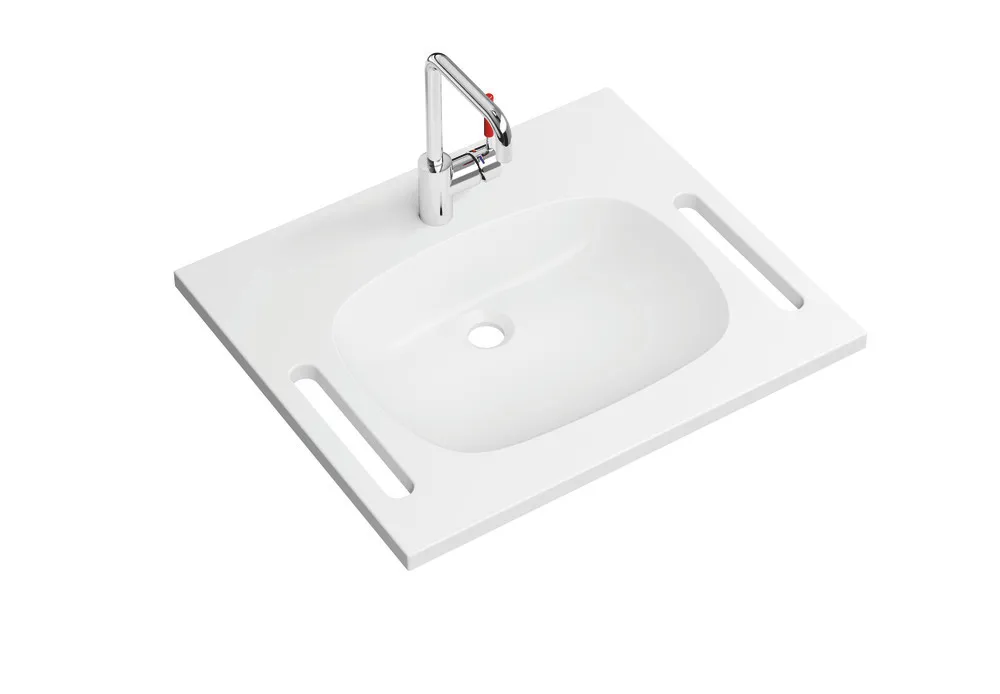

HEWI Product set washbasin and fitting
comprising washbasin M40.11.501 made of mineral composite with non-porous surface, alpine white, with shelf and oval basin, integrated gripping feature on the side, can be used as a towel holder, prepared for single hole mixer tap, wheelchair accessible to DIN 18040 and ÖNORM B1600/1601, 650 mm wide and 550 mm deep, CE marking according to Construction Products Regulation No. 305/2011.
Single-lever washbasin mixer tap AQ1.12M10640 high-quality chrome-plated, round tube, with coloured lever grip element made of polyamide in selected HEWI colours, flow rate 5 l/min, Ceramic cartridge Kerox K-35B, pressure resistant up to 35 bar, open operating lever with hot-cold marking, 270 mm high, projection 187 mm, Swivel outlet, optionally lockable, without waste fittings.
Show more comprising washbasin M40.11.501 made of mineral composite with non-porous surface, alpine white, with shelf and oval basin, integrated gripping feature on the side, can be used as a towel holder, prepared for single hole mixer tap, wheelchair accessible to DIN 18040 and ÖNORM B1600/1601, 650 mm wide and 550 mm deep, CE marking according to Construction Products Regulation No. 305/2011.
Single-lever washbasin mixer tap AQ1.12M10640 high-quality chrome-plated, round tube, with coloured lever grip element made of polyamide in selected HEWI colours, flow rate 5 l/min, Ceramic cartridge Kerox K-35B, pressure resistant up to 35 bar, open operating lever with hot-cold marking, 270 mm high, projection 187 mm, Swivel outlet, optionally lockable, without waste fittings.
Current color: 99 (pure white)
EAN
4014885552963
Kind
- Furniture washbasins
Fitting
Washbasin and fitting product set
Colour
Washbasin width
650 mm
Product set washbasin and fittings comprising
Washbasin M40.11.501
- made of mineral composite with non-porous surface, alpine white
- with shelf and oval basin
- integrated gripping feature on the side, can be used as a towel holder
- without overflow, prepared for single hole mixer tap
- wheelchair accessible to DIN 18040 and ÖNORM B1600/1601
- weight capacity to EN 14688, for hanger bolt fixing
- 650 mm wide and 550 mm deep
- CE marking according to Construction Products Regulation No. 305/2011
and
Single lever washbasin mixer tap AQ1.12M10640
- high-quality chrome-plated, round tube
- with coloured lever grip element made of polyamide in selected HEWI colours
- flow rate 5 l/min, noise class 1
- Kerox K-35B ceramic cartridge, pressure resistant up to 35 bar
- laminar flow regulator with dynamic flow control 5 l/min, with anti-theft protection
- connection via flexible pressure hoses with woven-in hot-cold marking, 450 mm long, G 3/8
- brass fitting body
- open operating lever with hot-cold marking
- 270 mm high, 187 mm projection
- swivel spout, can be optionally locked in position, without waste fittings
- suitable for thermal disinfection to WRAS
- WRAS certified
Washbasin M40.11.501
- made of mineral composite with non-porous surface, alpine white
- with shelf and oval basin
- integrated gripping feature on the side, can be used as a towel holder
- without overflow, prepared for single hole mixer tap
- wheelchair accessible to DIN 18040 and ÖNORM B1600/1601
- weight capacity to EN 14688, for hanger bolt fixing
- 650 mm wide and 550 mm deep
- CE marking according to Construction Products Regulation No. 305/2011
and
Single lever washbasin mixer tap AQ1.12M10640
- high-quality chrome-plated, round tube
- with coloured lever grip element made of polyamide in selected HEWI colours
- flow rate 5 l/min, noise class 1
- Kerox K-35B ceramic cartridge, pressure resistant up to 35 bar
- laminar flow regulator with dynamic flow control 5 l/min, with anti-theft protection
- connection via flexible pressure hoses with woven-in hot-cold marking, 450 mm long, G 3/8
- brass fitting body
- open operating lever with hot-cold marking
- 270 mm high, 187 mm projection
- swivel spout, can be optionally locked in position, without waste fittings
- suitable for thermal disinfection to WRAS
- WRAS certified
Design awards
Awarded by
Downloads

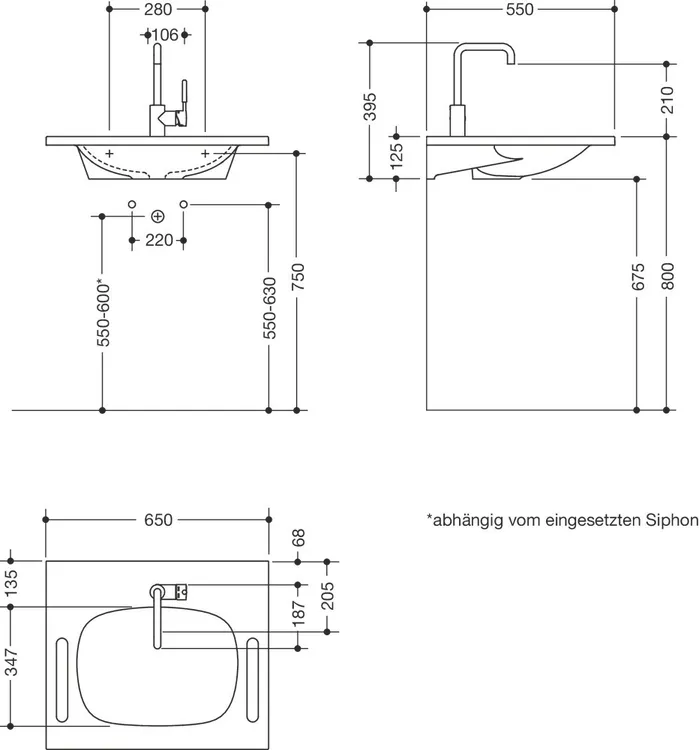

| 2D drawing | DXF | |
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions | ||
| Cleaning and Care Instructions |
