Article number 900.36.00840}
HEWI mobile support rail
Stainless steel, chrome-plated, centre-to-centre distance 300 mm, 32 mm diameter, easy mounting due to individually mountable stainless steel fastening plates (included in the scope of supply) for hooking in the support rail, secured with fastening screw (theft protection).
Show more
Stainless steel, chrome-plated, centre-to-centre distance 300 mm, 32 mm diameter, easy mounting due to individually mountable stainless steel fastening plates (included in the scope of supply) for hooking in the support rail, secured with fastening screw (theft protection).
EAN
4014885673903
Diameter bar
32 mm
Size
300 mm
Assembly
mobile
Material
Chrome

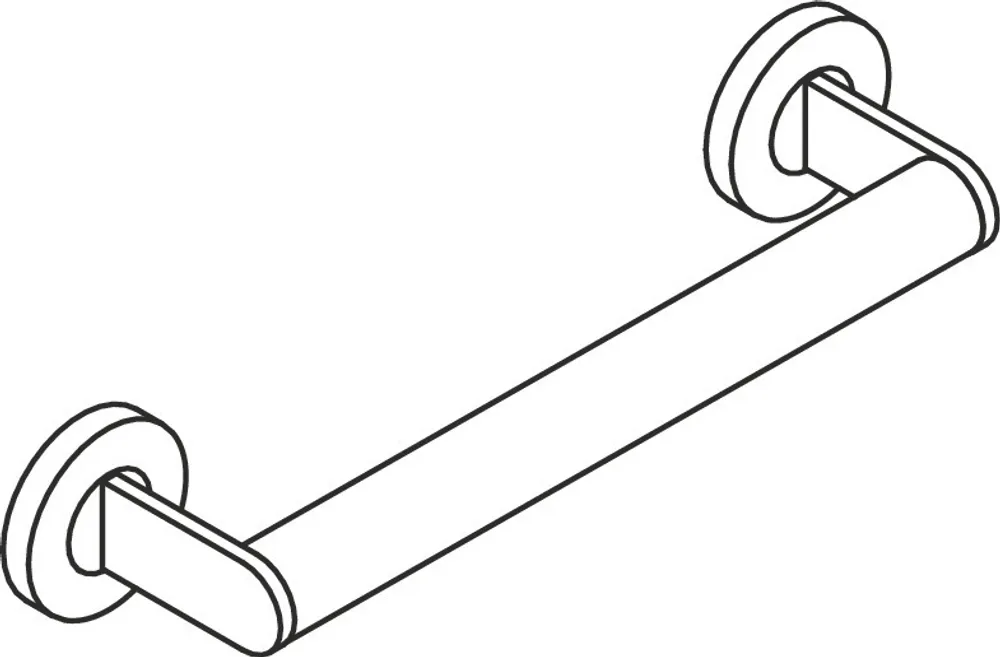

Mobile support rail, System 900
- straight rail with supports straight to the wall and roses
- for mobile use
- Centre-to-centre distance 300 mm, 90 mm depth
- rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm
- easy installation due to individually mountable fixing plates made of stainless steel (included in the scope of supply), for hanging the support rail
- is secured with fastening screw (theft protection)
- made of high-quality stainless steel, chrome-plated
- including non-corrosive and tested HEWI fixing material for wall mounting
- Please note when using with hanging seats: Compatibility check required.
- A detailed list of possible combinations of hand rails, L-shaped rails and shower handrails with matching hanging seats can be found in our online catalogue in the download area of the respective product.
- straight rail with supports straight to the wall and roses
- for mobile use
- Centre-to-centre distance 300 mm, 90 mm depth
- rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm
- easy installation due to individually mountable fixing plates made of stainless steel (included in the scope of supply), for hanging the support rail
- is secured with fastening screw (theft protection)
- made of high-quality stainless steel, chrome-plated
- including non-corrosive and tested HEWI fixing material for wall mounting
- Please note when using with hanging seats: Compatibility check required.
- A detailed list of possible combinations of hand rails, L-shaped rails and shower handrails with matching hanging seats can be found in our online catalogue in the download area of the respective product.
