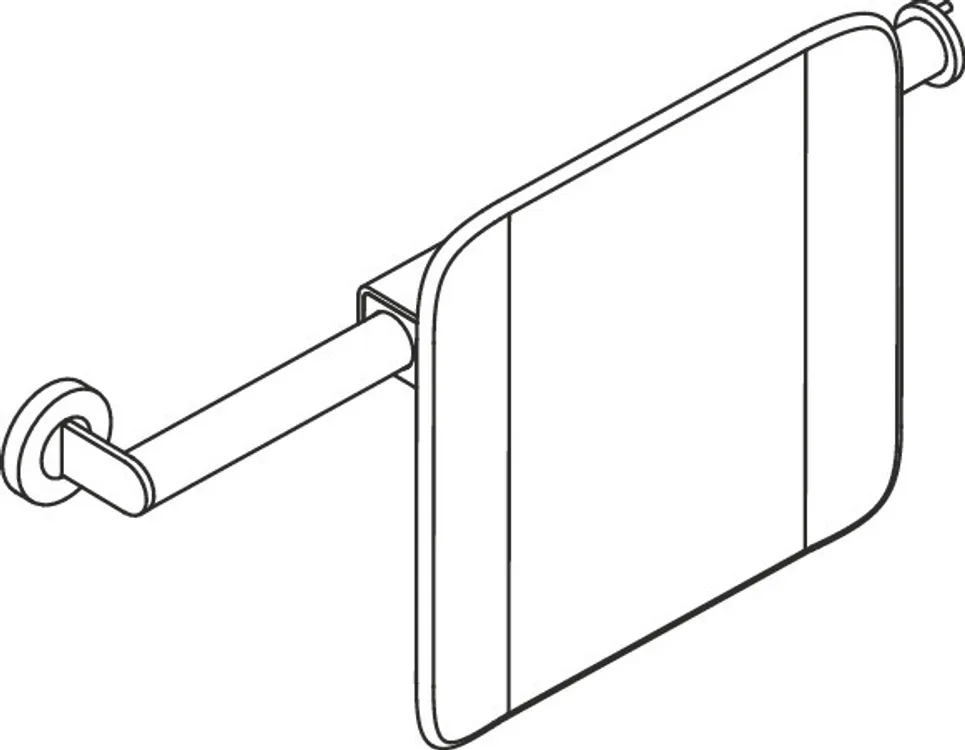

Model lefthand, support left, rose right
Article number 900.51.912XA 98
HEWI mobile back support
Stainless steel connection, satin finished, backrest made of synthetic material in HEWI colours 98 (signal white) or 92 (anthracite grey), centre-to-centre distance adjustable (clear dimension between the spar of the hinged support rail and the centre-to-centre distance of the wall fixing 616-716 mm), 150 mm deep, one-sided installation on the wall with roses (right), one-sided fitting onto hinged support rails, design (A) from the System 900 (left), easy mounting due to individually mountable stainless steel fixing plates for hanging the rail, secured with fastening screw (theft protection), fulfils the DIN 18040 and ÖNORM B1600/1601 requirements.
Show more Stainless steel connection, satin finished, backrest made of synthetic material in HEWI colours 98 (signal white) or 92 (anthracite grey), centre-to-centre distance adjustable (clear dimension between the spar of the hinged support rail and the centre-to-centre distance of the wall fixing 616-716 mm), 150 mm deep, one-sided installation on the wall with roses (right), one-sided fitting onto hinged support rails, design (A) from the System 900 (left), easy mounting due to individually mountable stainless steel fixing plates for hanging the rail, secured with fastening screw (theft protection), fulfils the DIN 18040 and ÖNORM B1600/1601 requirements.
Current color: 98 (signal white)
EAN
4014885673750
article group
Backrest
Mounting distance
616 - 716 mm
Colour
Wall plate
Design A
Variant
one sided hinged support rail
Material Seat/ Backrest
Synthetic material
Material
Stainless steel

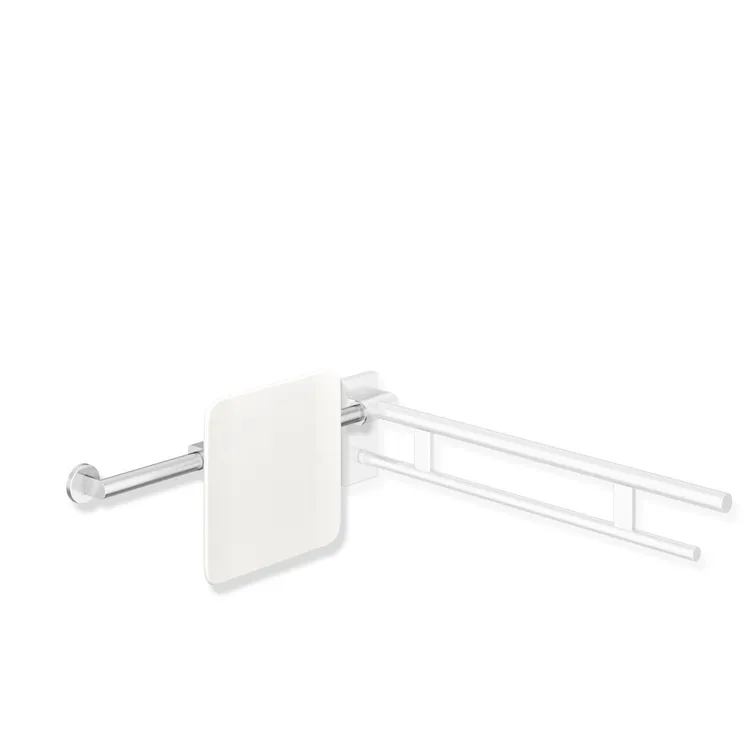

Mobile back support, System 900
- backrest with fixing rails on both sides
- serves as back support for toilet users
- one-sided installation on the wall with rose (right)
- single-sided mounting on folding support handle, design (A) from the System 900 (left)
- for mobile use
- 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm
- Centre-to-centre distance adjustable by the customer (clear dimension between the bar of the hinged support rail and the centre-to-centre distance of the wall fastening 616-716 mm)
- easy wall mounting due to individually mountable stainless steel fastening plate for hanging the rail
- is secured with fastening screw (theft protection)
- backrest made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey)
- connection made of high-quality stainless steel, satin finished
- including non-corrosive and tested HEWI fixing material
- fulfils the DIN 18040 and ÖNORM B1600/1601 requirements.
- backrest with fixing rails on both sides
- serves as back support for toilet users
- one-sided installation on the wall with rose (right)
- single-sided mounting on folding support handle, design (A) from the System 900 (left)
- for mobile use
- 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm
- Centre-to-centre distance adjustable by the customer (clear dimension between the bar of the hinged support rail and the centre-to-centre distance of the wall fastening 616-716 mm)
- easy wall mounting due to individually mountable stainless steel fastening plate for hanging the rail
- is secured with fastening screw (theft protection)
- backrest made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey)
- connection made of high-quality stainless steel, satin finished
- including non-corrosive and tested HEWI fixing material
- fulfils the DIN 18040 and ÖNORM B1600/1601 requirements.
