Mobile backrest rail

Article number 900.51.914XA 98

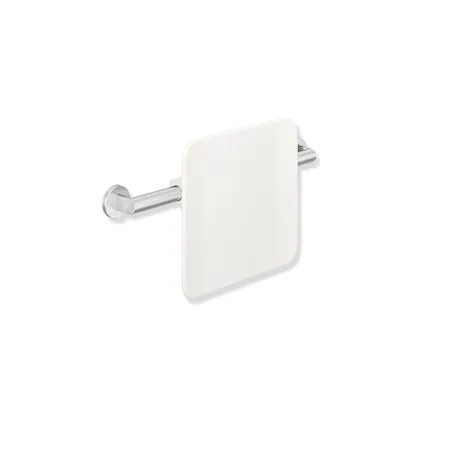

HEWI mobile back support
Stainless steel connection, satin finished, backrest made of synthetic material in HEWI colours 98 (signal white) or 92 (anthracite grey), Centre-to-centre distance from 478 to 578 mm, adjustable on site, 150 mm deep, For wall mounting, easy mounting due to individually mountable stainless steel fixing plates for hanging the rail, secured with fastening screw (theft protection), meets the requirements of BS standard BS 8300:2009 (+A1:2010)/Doc M.

Current color: 98 (signal white)

Downloads and documents

Product data sheet

Add to the comparison list comparison list

EAN

4014885673897

article group

Backrest

Mounting distance

478 - 578 mm

Colour

98signal white

Variant

without hinged support rails

Material Seat/ Backrest

Synthetic material

Material

Stainless steel

Mobile back support, System 900
- backrest with fixing rails with roses on both sides
- serves as back support for toilet users
- for wall mounting
- for mobile use
- 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm
Centre-to-centre distance from 478 to 578 mm, adjustable on site
- easy wall mounting due to individually mountable stainless steel fastening plate for hanging the rail
- is secured with fastening screw (theft protection)
- backrest made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey)
- connection made of high-quality stainless steel, matt satin surface
- including non-corrosive and tested HEWI fixing material
- meets the requirements of BS standard BS 8300:2009 (+A1:2010)/Doc M
