Mobile backrest rail

Article number 900.51.91140 98

HEWI mobile back support
Stainless steel connection, chrome-plated, backrest made of synthetic material in HEWI colours 98 (signal white) or 92 (anthracite grey), Centre-to-centre distance from 582 to 682 mm, adjustable on site, 150 mm deep, For wall mounting, easy mounting due to individually mountable stainless steel fixing plates for hanging the rail, is secured with fastening screw (theft protection), fulfils the DIN 18040 and ÖNORM B1600/1601 requirements.

Current color: 98 (signal white)

Downloads and documents

Product data sheet

Add to the comparison list comparison list

EAN

4014885673637

article group

Backrest

Mounting distance

582 - 682 mm

Colour

98signal white

Variant

without hinged support rails

Material Seat/ Backrest

Synthetic material

Material

Chrome

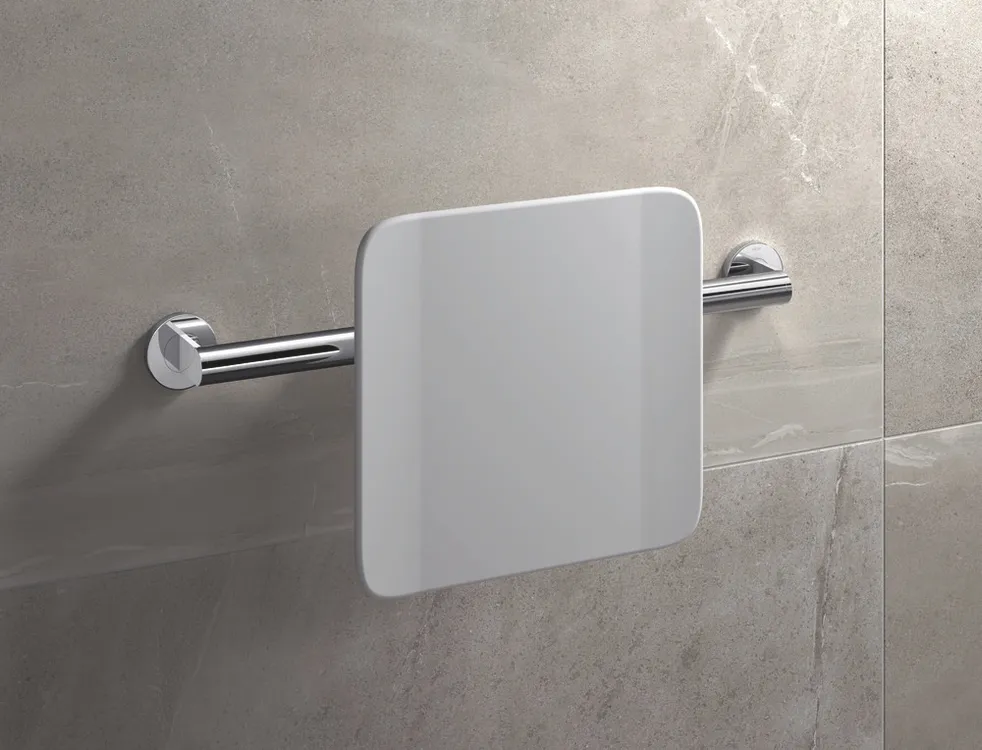

Mobile back support, System 900
- backrest with fixing rails with roses on both sides
- serves as back support for toilet users
- for wall mounting
- for mobile use
- 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm
- Centre-to-centre distance from 582 to 682 mm, adjustable on site
- easy mounting due to individually mountable stainless steel fixing plates for hanging the rail
- is secured with fastening screw (theft protection)
- backrest made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey)
- connection made of high-quality stainless steel, Surface chrome
- including non-corrosive and tested HEWI fixing material
- fulfils the DIN 18040 and ÖNORM B1600/1601 requirements.
