{Article number 900.51.91260 AS}

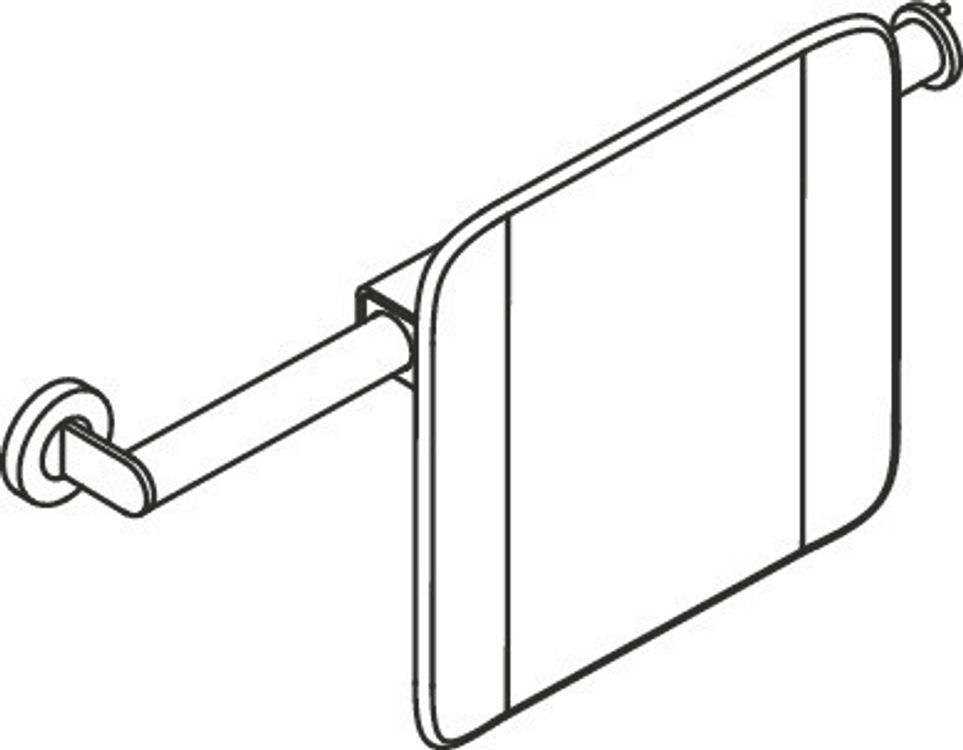

HEWI mobile back support
Stainless steel connection, powder coated, Plastic backrest, centre-to-centre distance adjustable (clear dimension between the spar of the hinged support rail and the centre-to-centre distance of the wall fixing 616-716 mm), 150 mm deep, one-sided installation on the wall with roses (right), one-sided fitting onto hinged support rails, design (A) from the System 900 (left), easy mounting due to individually mountable stainless steel fixing plates for hanging the rail, is secured with fastening screw (theft protection), fulfils the DIN 18040 and ÖNORM B1600/1601 requirements.
Show more
Stainless steel connection, powder coated, Plastic backrest, centre-to-centre distance adjustable (clear dimension between the spar of the hinged support rail and the centre-to-centre distance of the wall fixing 616-716 mm), 150 mm deep, one-sided installation on the wall with roses (right), one-sided fitting onto hinged support rails, design (A) from the System 900 (left), easy mounting due to individually mountable stainless steel fixing plates for hanging the rail, is secured with fastening screw (theft protection), fulfils the DIN 18040 and ÖNORM B1600/1601 requirements.
EAN
4014885673736
Befestigungsabstand
616 - 716 mm
Colour
AS (matt white - matt white)
Wall plate
Design A
Variant
one sided hinged support rail
Material Seat/ Backrest
Synthetic material
Material
Powder-coated
Mobile back support, System 900
- backrest with fixing rails on both sides
- serves as back support for toilet users
- one-sided installation on the wall with rose (right)
- single-sided mounting on folding support handle, design (A) from the System 900 (left)
- for mobile use
- 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm
- Centre-to-centre distance adjustable by the customer (clear dimension between the bar of the hinged support rail and the centre-to-centre distance of the wall fastening 616-716 mm)
- easy wall mounting due to individually mountable stainless steel fastening plate for hanging the rail
- is secured with fastening screw (theft protection)
- Wall connector made of high-quality stainless steel, powder-coated in HEWI colour CV (deep matt black) and ER (deep matt dark grey pearl mica) with black backrest or powder-coated in HEWI colour AS (deep matt white) with white backrest
- including non-corrosive and tested HEWI fixing material
- fulfils the DIN 18040 and ÖNORM B1600/1601 requirements.
- backrest with fixing rails on both sides
- serves as back support for toilet users
- one-sided installation on the wall with rose (right)
- single-sided mounting on folding support handle, design (A) from the System 900 (left)
- for mobile use
- 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm
- Centre-to-centre distance adjustable by the customer (clear dimension between the bar of the hinged support rail and the centre-to-centre distance of the wall fastening 616-716 mm)
- easy wall mounting due to individually mountable stainless steel fastening plate for hanging the rail
- is secured with fastening screw (theft protection)
- Wall connector made of high-quality stainless steel, powder-coated in HEWI colour CV (deep matt black) and ER (deep matt dark grey pearl mica) with black backrest or powder-coated in HEWI colour AS (deep matt white) with white backrest
- including non-corrosive and tested HEWI fixing material
- fulfils the DIN 18040 and ÖNORM B1600/1601 requirements.
