HEWI Soap or disinfectant dispenser with holder

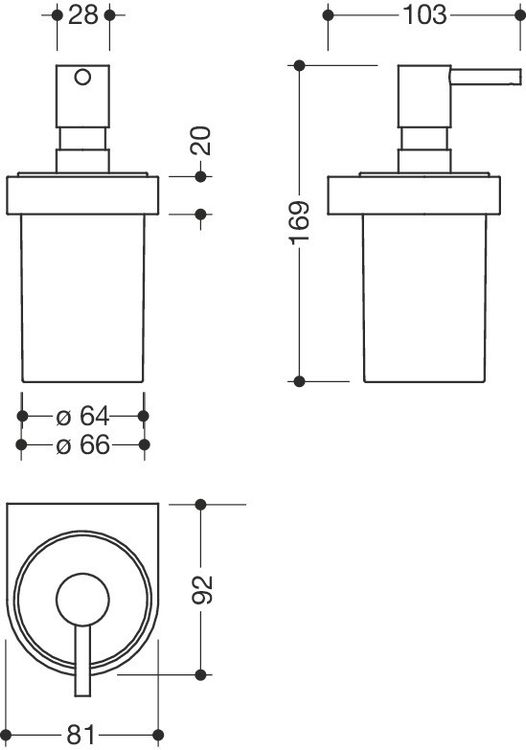

holder and pump head made of metal, powder-coated in HEWI colour CV (deep matt black) or in HEWI colour AS (deep matt white), Soap dispenser in matt polyamide in the same colour as the holder, capacity approx. 200 ml, Width 81 mm, Height 170 mm, Depth 92 mm.
Show more
holder and pump head made of metal, powder-coated in HEWI colour CV (deep matt black) or in HEWI colour AS (deep matt white), Soap dispenser in matt polyamide in the same colour as the holder, capacity approx. 200 ml, Width 81 mm, Height 170 mm, Depth 92 mm.
EAN
4014885672616
Colour
AS (matt white - matt white)
Material
Powder-coated
Holder with soap or disinfectant dispenser System 800
- ring-shaped wall-mounted bracket
- Holder with protective ring made of plastic for a safe, defined position and to protect against damage to the insert
- holder and pump head made of metal, powder-coated in HEWI colour CV (deep matt black) with soap dispenser made of matt black polyamide or powder-coated in HEWI colour AS (deep matt white) with soap dispenser made of matt white polyamide
- Used to hold standard liquid soap, Disinfectants and gels
- capacity approx. 200 ml
-- 81 mm wide, 170 mm high and 92 mm deep.
- for wall mounting, Concealed fixing
- includes corrosion-free HEWI mounting materials
- ring-shaped wall-mounted bracket
- Holder with protective ring made of plastic for a safe, defined position and to protect against damage to the insert
- holder and pump head made of metal, powder-coated in HEWI colour CV (deep matt black) with soap dispenser made of matt black polyamide or powder-coated in HEWI colour AS (deep matt white) with soap dispenser made of matt white polyamide
- Used to hold standard liquid soap, Disinfectants and gels
- capacity approx. 200 ml
-- 81 mm wide, 170 mm high and 92 mm deep.
- for wall mounting, Concealed fixing
- includes corrosion-free HEWI mounting materials
Design awards
Awarded byDownloads
2D drawing | DXF | |
Product data sheet | ||
Installation instructions | ||
Cleaning and Care Instructions |
