Article number 900.50.12170 WR}

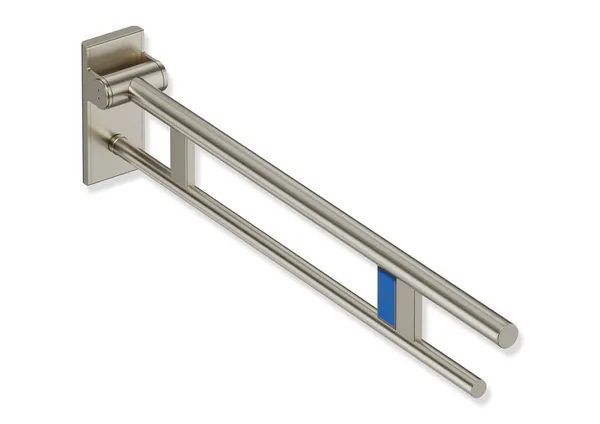

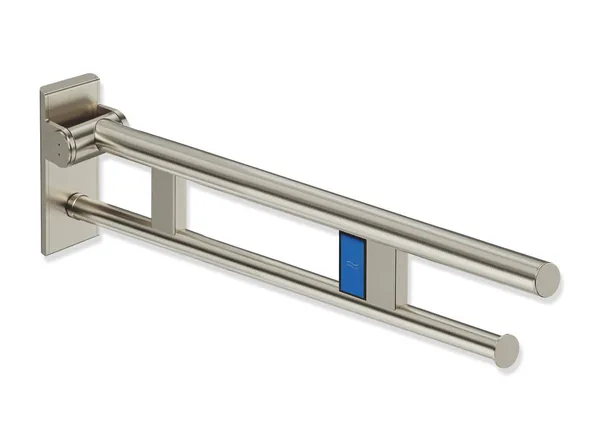

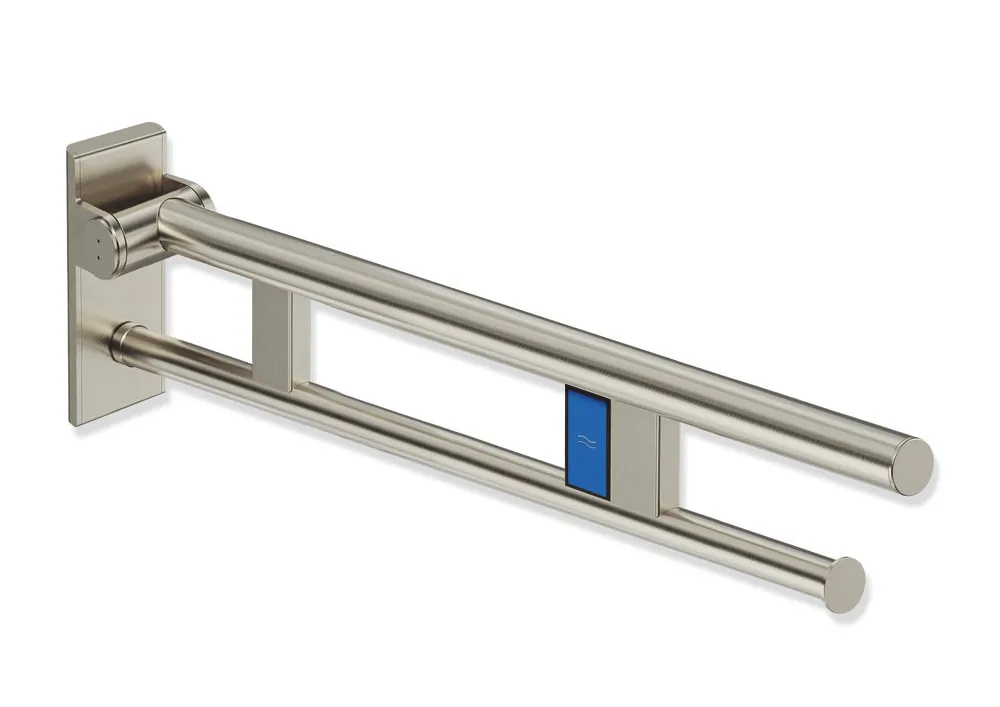

HEWI Duo folding support handle, Design A
Stainless steel, PVD coated, Projection 900 mm, with radio-controlled flushing mechanism, left-hand version, suitable for radio-controlled WC flushing systems made by Geberit, Mepa, Viega, Sanit, Friatec, TECE and Grohe, Loadable up to 100 kg, is produced in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices, fulfils the ÖNORM B1600/1601 requirements.
Show more
Stainless steel, PVD coated, Projection 900 mm, with radio-controlled flushing mechanism, left-hand version, suitable for radio-controlled WC flushing systems made by Geberit, Mepa, Viega, Sanit, Friatec, TECE and Grohe, Loadable up to 100 kg, is produced in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices, fulfils the ÖNORM B1600/1601 requirements.
Current color: WR (brushed nickel)
EAN
4014885700449
Function
hinged
Version
left (user perspective)
Size
900 mm
Colour
Wall plate
Design A
Variant
WC flushing mechanism (radio-controlled)
Assembly
fixed
Material
PVD
hinged support rail Duo, Design (A), System 900
- Two parallel rails, round gripping levels arranged on top of each other
- with radio flush release
- left-hand version
- Can be folded upwards and folded downwards with braked movement
- Blue button (wave symbol) is used to activate the toilet flush
- Transmission frequency 868.4 MHz
- Suitable for wireless WC flushing systems from Geberit, Mepa, Viega, Sanit, Friatec, TECE and Grohe
- Projection 900mm, Height 210mm and width 101mm, diameter of upper rail 33.7 mm, diameter of bottom rail 25 mm
- Weight capacity up to 100kg
- made of high-quality stainless steel, PVD coated
- for mounting with non-corrosive and tested HEWI fixing material for different wall systems (to be ordered separately).
Sealing tape for sealing the fixing points is included in the delivery
- Floor supports 900.50.02070 and 900.50.02170 can be retrofitted
- is produced in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices
- fulfils the requirements of ÖNORM B1600/1601
- Two parallel rails, round gripping levels arranged on top of each other
- with radio flush release
- left-hand version
- Can be folded upwards and folded downwards with braked movement
- Blue button (wave symbol) is used to activate the toilet flush
- Transmission frequency 868.4 MHz
- Suitable for wireless WC flushing systems from Geberit, Mepa, Viega, Sanit, Friatec, TECE and Grohe
- Projection 900mm, Height 210mm and width 101mm, diameter of upper rail 33.7 mm, diameter of bottom rail 25 mm
- Weight capacity up to 100kg
- made of high-quality stainless steel, PVD coated
- for mounting with non-corrosive and tested HEWI fixing material for different wall systems (to be ordered separately).
Sealing tape for sealing the fixing points is included in the delivery
- Floor supports 900.50.02070 and 900.50.02170 can be retrofitted
- is produced in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices
- fulfils the requirements of ÖNORM B1600/1601
