Article number 477.33.103

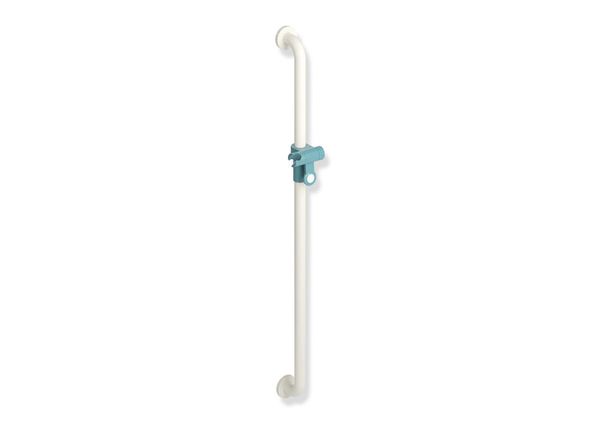

HEWI Rail with shower head holder
polyamide, High gloss, - two-colour shower head rail, - Bar and rosettes: 99 (pure white), Shower head holder: 55 (aqua blue), Centre-to-centre 1100 mm, 33 mm in diameter, with continuously adjustable shower head holder
Show more
polyamide, High gloss, - two-colour shower head rail, - Bar and rosettes: 99 (pure white), Shower head holder: 55 (aqua blue), Centre-to-centre 1100 mm, 33 mm in diameter, with continuously adjustable shower head holder
EAN
4014885666479
Version
continuous steel core/ steel fixing roses
Size
1100 mm
Material
Polyamide
Series 477 ICONIC Shower head rail
- two-colour shower head rail
- made of high gloss polyamide
- Rail and rosettes: 99 (pure white), Shower head holder 55 (aqua blue)
- Rail system with shower head holder
- Suitable for shower heads of various manufacturers
- Shower head holder height adjustable by pulling or pushing a lever and with continuous tilt angle adjustment
- Rail system has corrosion-resistant steel core
- Mounting with rosettes
- Height 1100 mm (centre-to-centre), Depth 90 mm and 33 mm in diameter, Rosettes 70 mm in diameter
- two-colour shower head rail
- made of high gloss polyamide
- Rail and rosettes: 99 (pure white), Shower head holder 55 (aqua blue)
- Rail system with shower head holder
- Suitable for shower heads of various manufacturers
- Shower head holder height adjustable by pulling or pushing a lever and with continuous tilt angle adjustment
- Rail system has corrosion-resistant steel core
- Mounting with rosettes
- Height 1100 mm (centre-to-centre), Depth 90 mm and 33 mm in diameter, Rosettes 70 mm in diameter
Design awards
Awarded by
Downloads
| 2D drawing | DXF | |
| 3DF | DXF | |
| 3DV | DXF | |
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| Ausschreiben.de | Link | |
| Colour Chart | Link | |
| Product video 1 | Link |
Rail with shower head holder
Article number 477.33.103
