Article number 900.33.03240}

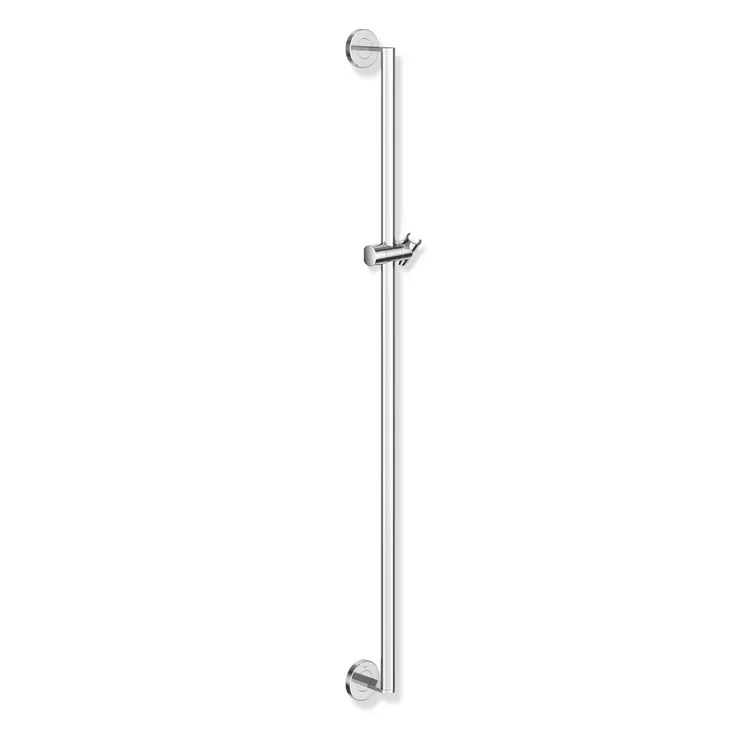

HEWI Rail with shower head holder, System 900

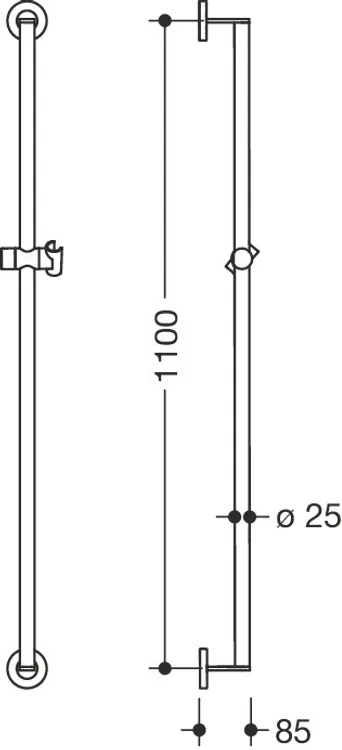

vertical rail with supports perpendicular to the wall, fixing roses and shower head holder, fixing spacing 1100 mm, 85 mm deep, rail diameter 25 mm, tube thickness 2 mm, rose diameter 70 mm, made of stainless steel, chrome, shower head holder made of synthetic material, chrome, suitable for shower heads of various manufacturers, including including non-corrosive and tested HEWI fixing material for wall mounting.
Show more
vertical rail with supports perpendicular to the wall, fixing roses and shower head holder, fixing spacing 1100 mm, 85 mm deep, rail diameter 25 mm, tube thickness 2 mm, rose diameter 70 mm, made of stainless steel, chrome, shower head holder made of synthetic material, chrome, suitable for shower heads of various manufacturers, including including non-corrosive and tested HEWI fixing material for wall mounting.
EAN
4014885526452
Diameter bar
25 mm
Size
1100 mm
Material
Chrome
Shower head rail, System 900
- vertical rail with supports perpendicular to the wall, mounting and shower head holder
- fixing spacing 1100 mm, 85 mm deep
- rail diameter 25 mm, tube thickness 2 mm, rose diameter 70 mm
- made of stainless steel, chrome
- shower head holder made of synthetic material, chrome
- suitable for shower heads of various manufacturers
- shower head holder can be tilted with detent and height-adjusted by turning with spring-assisted return
- conical adapter on shower head holder makes it easier to hook in the shower head
- including non-corrosive and tested HEWI fixing material for wall mounting and sealing tape for sealing the drilling points
- vertical rail with supports perpendicular to the wall, mounting and shower head holder
- fixing spacing 1100 mm, 85 mm deep
- rail diameter 25 mm, tube thickness 2 mm, rose diameter 70 mm
- made of stainless steel, chrome
- shower head holder made of synthetic material, chrome
- suitable for shower heads of various manufacturers
- shower head holder can be tilted with detent and height-adjusted by turning with spring-assisted return
- conical adapter on shower head holder makes it easier to hook in the shower head
- including non-corrosive and tested HEWI fixing material for wall mounting and sealing tape for sealing the drilling points
Design awards
Awarded by
Downloads
| 2D drawing | DXF | |
| 3DF | DXF | |
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| BIM | Link | |
| Colour Chart | Link | |
| Installation video 1 | Link |
Rail with shower head holder
{
Article number 900.33.03240}
