Article number B9505.50L 99

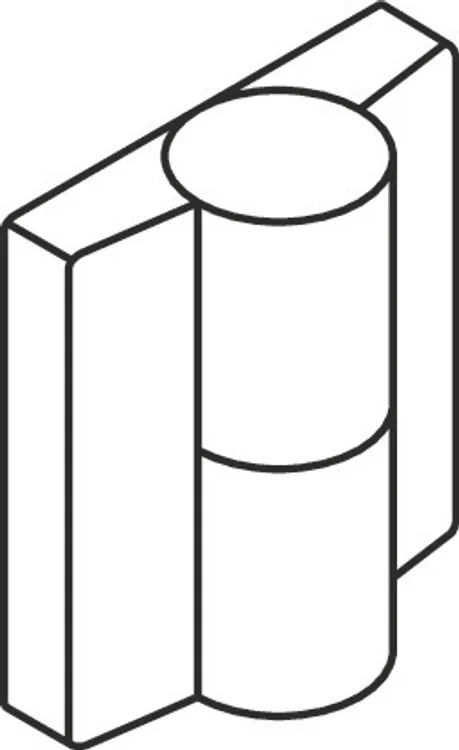

HEWI Screw-on hinge for non-rebated doors
with weight up to 40 kg, made of polyamide with steel support, 54 mm high, Hinge pin diameter 7 mm, maintenance-free polyamide plain bearing., and for screwing onto the wooden doorframe.
Hinge for left-hung door.
Recommendation! When ordering please clarify dimensions and/or features and options
Show more with weight up to 40 kg, made of polyamide with steel support, 54 mm high, Hinge pin diameter 7 mm, maintenance-free polyamide plain bearing., and for screwing onto the wooden doorframe.
Hinge for left-hung door.
Recommendation! When ordering please clarify dimensions and/or features and options
Current color: 99 (pure white)
DIN Direction
Left
EAN
4014884546178
article group
Hinges
Load capacity
bis 40 kg
Colour
Material
Polyamide
Screw-on hinge
for non-rebated doors with weight up to 40 kg.
Held in door element by screwing on and for screwing onto the wooden doorframe.
made of polyamide with steel support made of 3 mm steel sheet with hinge roll, 54 mm high, hinge axis diameter 7 mm, maintenance-free polyamide plain bearings. Polyamide caps for covering the cut recess and the screw fixing.
Hinge for left-hung door
for non-rebated doors with weight up to 40 kg.
Held in door element by screwing on and for screwing onto the wooden doorframe.
made of polyamide with steel support made of 3 mm steel sheet with hinge roll, 54 mm high, hinge axis diameter 7 mm, maintenance-free polyamide plain bearings. Polyamide caps for covering the cut recess and the screw fixing.
Hinge for left-hung door
Downloads
| Product data sheet |
