Article number 316XAES

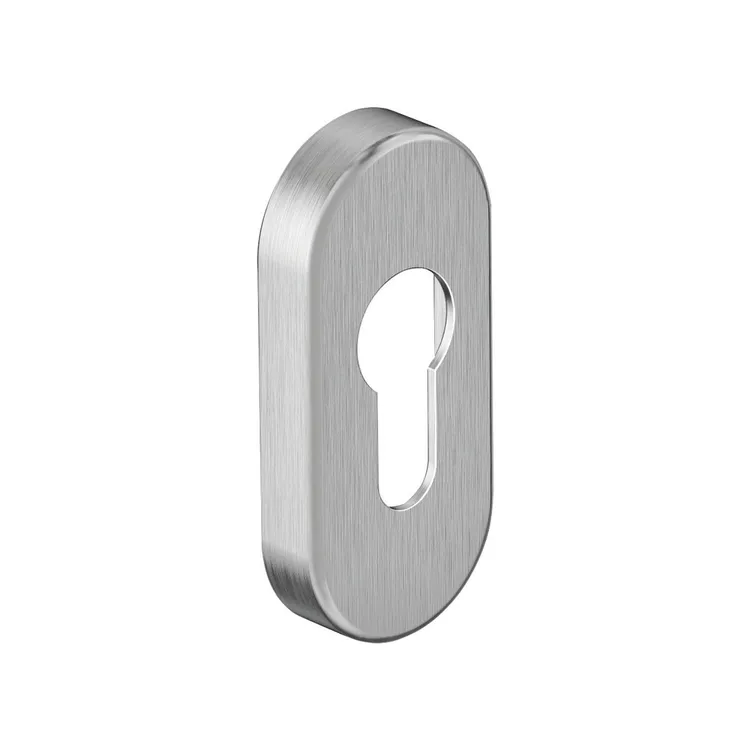

HEWI security escutcheon
made of stainless steel satin surface finish with cylinder cover, external rose, solid, oval 72 x 30 mm, 10 mm high, Internal rose, FS type in polyamide-steel composite, oval 72 x 30 mm, 10.5 mm high, holes for profiled cylinder (Euro (PZ)), Cylinder projections: 10.5 - 15 mm, the HEWI security escutcheon conforms to the requirements of DIN 18273.
Show more made of stainless steel satin surface finish with cylinder cover, external rose, solid, oval 72 x 30 mm, 10 mm high, Internal rose, FS type in polyamide-steel composite, oval 72 x 30 mm, 10.5 mm high, holes for profiled cylinder (Euro (PZ)), Cylinder projections: 10.5 - 15 mm, the HEWI security escutcheon conforms to the requirements of DIN 18273.
EAN
4014884918012
article group
Components | Spare parts
Sustainability
EPD
Technology
H-technology | Class 4
Floor to wall stationary support
Rectangular rose
Material
Stainless steel
Security escutcheon made of stainless steel

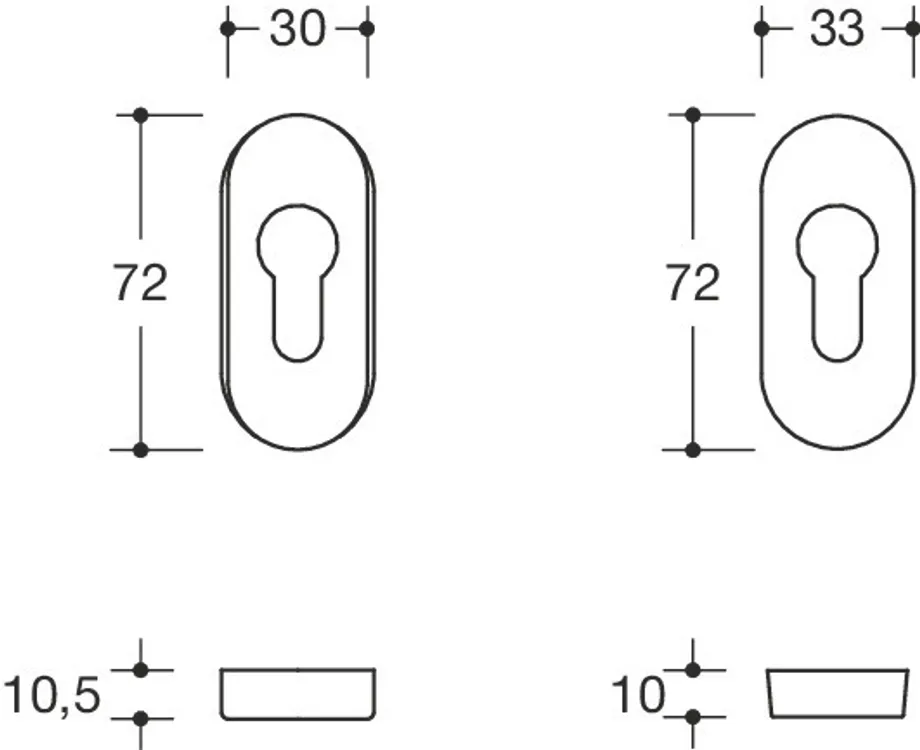

External rose, solid, oval 72 x 30 mm, 10 mm high,
hardened, conical shape, as protection against forced twisting off
Internal rose, FS type in polyamide-steel composite, oval 72 x 30 mm, 10.5 mm high,
concealed screw fixing, for screw-on installation, supplied without screws
Holes for profiled cylinder (Euro (PZ)), for cylinder projections: 10.5 - 15 mm
The security escutcheon conforms to the requirements of DIN 18273
Surface satin finished
External rose, solid, oval 72 x 30 mm, 10 mm high,
hardened, conical shape, as protection against forced twisting off
Internal rose, FS type in polyamide-steel composite, oval 72 x 30 mm, 10.5 mm high,
concealed screw fixing, for screw-on installation, supplied without screws
Holes for profiled cylinder (Euro (PZ)), for cylinder projections: 10.5 - 15 mm
The security escutcheon conforms to the requirements of DIN 18273
Surface satin finished
