Article number 316XAESZ

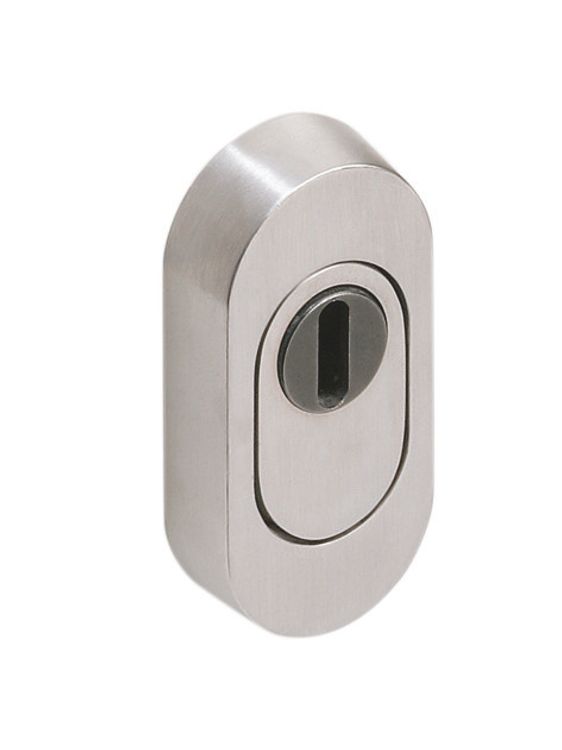

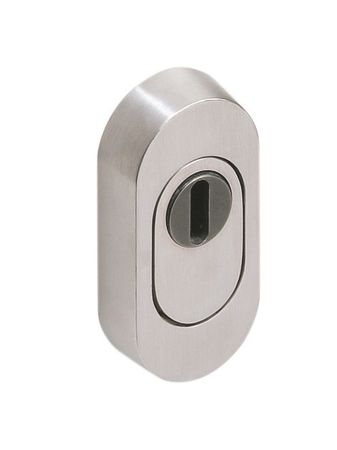

HEWI security escutcheon
made of stainless steel satin surface finish with cylinder cover, external rose, solid, oval 72 x 37 mm, 14 mm high, Internal rose, FS type in polyamide-steel composite, oval 72 x 30 mm, 10.5 mm high, holes for profiled cylinder (Euro (PZ)), Cylinder projections: 10.5 - 15 mm, the HEWI security escutcheon conforms to the requirements of DIN 18273.
Show more made of stainless steel satin surface finish with cylinder cover, external rose, solid, oval 72 x 37 mm, 14 mm high, Internal rose, FS type in polyamide-steel composite, oval 72 x 30 mm, 10.5 mm high, holes for profiled cylinder (Euro (PZ)), Cylinder projections: 10.5 - 15 mm, the HEWI security escutcheon conforms to the requirements of DIN 18273.
EAN
4014884918029
article group
Components | Spare parts
Material
Stainless steel

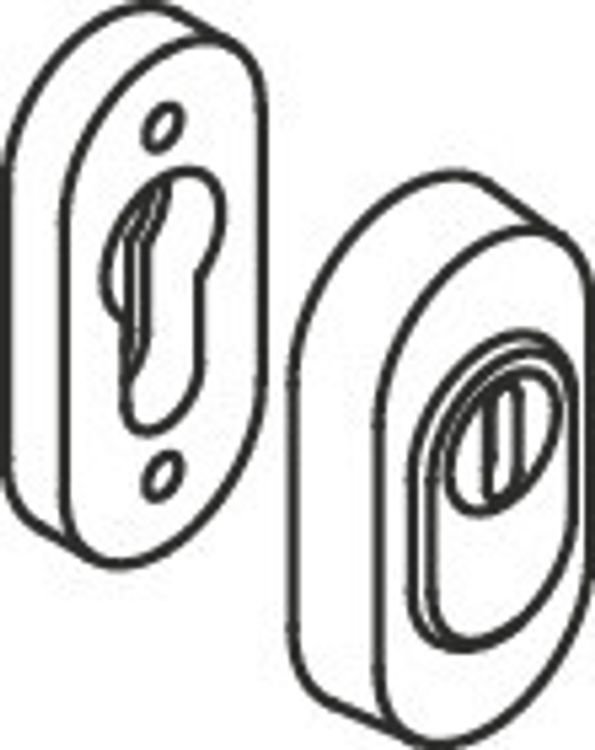

Security escutcheon made of stainless steel with cylinder cover

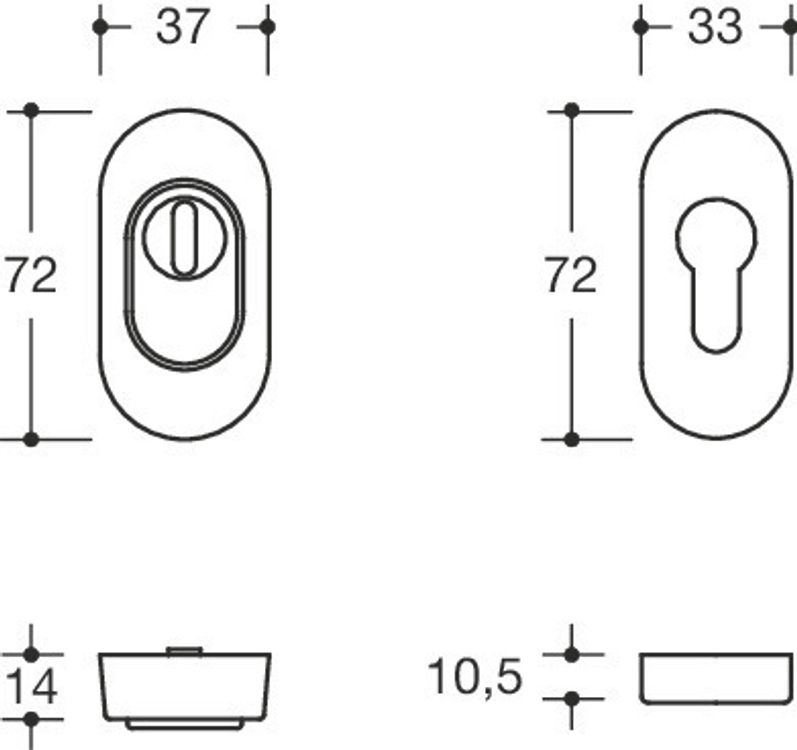

External rose, solid, oval 72 x 37 mm, 14 mm high,
hardened, with integrated cylinder cover with supporting surround,
conical shape, as protection against forced twisting off
Internal rose, FS type in polyamide-steel composite, oval 72 x 30 mm, 10.5 mm high,
concealed screw fixing, for screw-on installation, supplied without screws
Holes for profiled cylinder (Euro (PZ)), for cylinder projections: 10.5 - 15 mm
The security escutcheon conforms to the requirements of DIN 18273
Surface satin finished
External rose, solid, oval 72 x 37 mm, 14 mm high,
hardened, with integrated cylinder cover with supporting surround,
conical shape, as protection against forced twisting off
Internal rose, FS type in polyamide-steel composite, oval 72 x 30 mm, 10.5 mm high,
concealed screw fixing, for screw-on installation, supplied without screws
Holes for profiled cylinder (Euro (PZ)), for cylinder projections: 10.5 - 15 mm
The security escutcheon conforms to the requirements of DIN 18273
Surface satin finished
