Matt edition
Article number 801.35BUS110 99

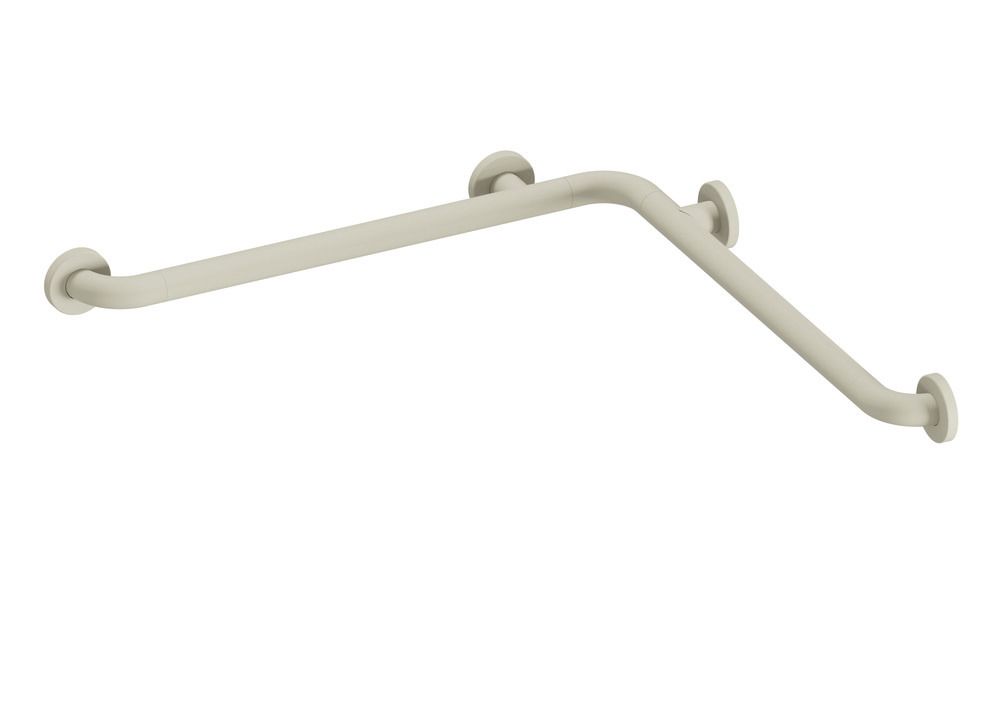

HEWI Shower grab rail (USA) from Range 801
arranged horizontally, rods connected at a right angle with steel fixing roses, horizontal lengths 25 1/2 inch x 25 1/2 inch (647 x 647 mm), 2 3/4 inch (70 mm) deep, rail diameter 1 5/16 inch (33 mm), rose diameter 2 3/4 inch (70 mm), with corrosion-protected steel core throughout, made of high-quality matt polyamide in HEWI colours 99 (pure white), 95 (stone grey) and 92 (anthracite grey), meets the requirements of 2010 ADA standards and ICC/ANSI A117.1-2017.
Show more
arranged horizontally, rods connected at a right angle with steel fixing roses, horizontal lengths 25 1/2 inch x 25 1/2 inch (647 x 647 mm), 2 3/4 inch (70 mm) deep, rail diameter 1 5/16 inch (33 mm), rose diameter 2 3/4 inch (70 mm), with corrosion-protected steel core throughout, made of high-quality matt polyamide in HEWI colours 99 (pure white), 95 (stone grey) and 92 (anthracite grey), meets the requirements of 2010 ADA standards and ICC/ANSI A117.1-2017.
Current color: 99 (pure white)
EAN
4014885612582
Version
continuous steel core/ steel fixing roses
Colour
Material
Polyamide, mat
Shower grab rail (USA) from Range 801
- arranged horizontally, rods connected at a right angle with steel fixing roses

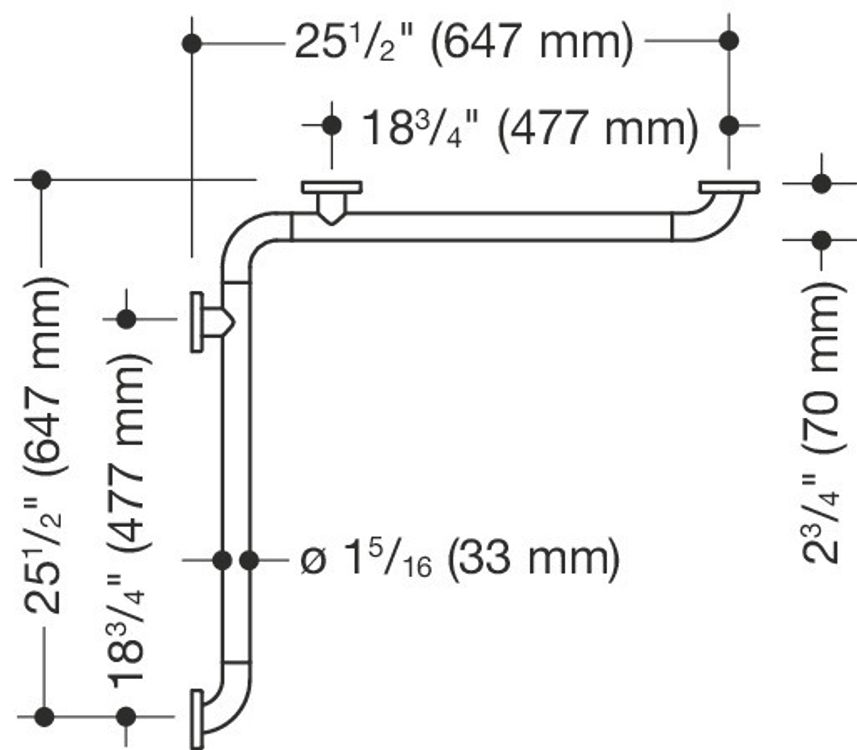

- horizontal lengths 25 1/2 inch x 25 1/2 inch (647 x 647 mm)
- 2 3/4 inch (70 mm) deep, rail diameter 1 5/16 inch (33 mm), rose diameter 2 3/4 inch (70 mm)
- with corrosion-protected steel core throughout
- wall mounting with wall-specific fixing material and roses from HEWI
- can be mounted on the right and left side
- maximum loading capacity 330 lbs (150 kg)
- made of high-quality matt polyamide in HEWI colours 99 (pure white), 95 (stone grey) and 92 (anthracite grey)
- meets the requirements of 2010 ADA standards and ICC/ANSI A117.1-2017
- arranged horizontally, rods connected at a right angle with steel fixing roses
- horizontal lengths 25 1/2 inch x 25 1/2 inch (647 x 647 mm)
- 2 3/4 inch (70 mm) deep, rail diameter 1 5/16 inch (33 mm), rose diameter 2 3/4 inch (70 mm)
- with corrosion-protected steel core throughout
- wall mounting with wall-specific fixing material and roses from HEWI
- can be mounted on the right and left side
- maximum loading capacity 330 lbs (150 kg)
- made of high-quality matt polyamide in HEWI colours 99 (pure white), 95 (stone grey) and 92 (anthracite grey)
- meets the requirements of 2010 ADA standards and ICC/ANSI A117.1-2017
Design awards
Awarded by
Downloads
| 2D drawing | DXF | |
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| Ausschreiben.de | Link | |
| Colour Chart | Link |
