30" x 31 1/2" x 31 1/2" (762 x 800 x 800 mm)
Article number 801.35US200 92
HEWI Shower grab rail (USA) from Range 801
positioned horizontally and vertically, rails connected at a right angle with steel fixing roses, with corrosion-protected steel core throughout, vertical length 30 inch (762 mm), horizontal lengths 31 1/2 inch (800 mm), 2 3/4 inch (70 mm) deep, rail diameter 1 5/16 inch (33 mm), rose diameter 2 3/4 inch (70 mm), made from high-grade synthetic material in the HEWI colors 99 (pure white), 95 (stone gray), 92 (anthracite gray), 90 (jet black), 86 (sand), 84 (umber) and 33 (ruby red), meets the requirements of 2010 ADA standards and ICC/ANSI A117.1-2017.
Show more positioned horizontally and vertically, rails connected at a right angle with steel fixing roses, with corrosion-protected steel core throughout, vertical length 30 inch (762 mm), horizontal lengths 31 1/2 inch (800 mm), 2 3/4 inch (70 mm) deep, rail diameter 1 5/16 inch (33 mm), rose diameter 2 3/4 inch (70 mm), made from high-grade synthetic material in the HEWI colors 99 (pure white), 95 (stone gray), 92 (anthracite gray), 90 (jet black), 86 (sand), 84 (umber) and 33 (ruby red), meets the requirements of 2010 ADA standards and ICC/ANSI A117.1-2017.
Current color: 92 (anthracite grey)
EAN
4014885554585
article group
Shower grab rail
Version
continuous steel core/ steel fixing roses
Colour
Material
Polyamide
HÄFELE Item Number 988.68.1xx
Shower grab rail (USA) from Range 801
- positioned horizontally and vertically, rails connected at a right angle with steel fixing roses
- with corrosion-protected steel core throughout

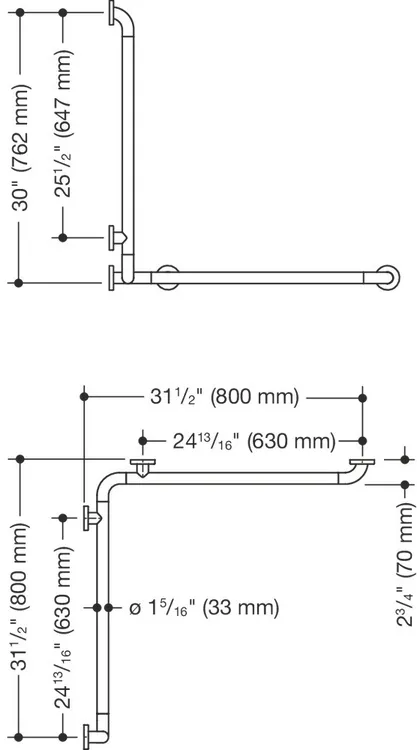

- vertical length 30 inch (762 mm), horizontal lengths 31 1/2 inch (800 mm)
- 2 3/4 inch (70 mm) deep, rail diameter 1 5/16 inch (33 mm), rose diameter 2 3/4 inch (70 mm)
- wall mounting with wall-specific fixing material and roses from HEWI
- can be mounted on the right and left side
- maximum loading capacity 330 lbs (150 kg)
- suitable for removable hanging seats 801.51US100 and 801.51US110
- made from high-grade synthetic material in the HEWI colors 99 (pure white), 95 (stone gray), 92 (anthracite gray), 90 (jet black), 86 (sand), 84 (umber) and 33 (ruby red)
- meets the requirements of 2010 ADA standards and ICC/ANSI A117.1-2017
- positioned horizontally and vertically, rails connected at a right angle with steel fixing roses
- with corrosion-protected steel core throughout
- vertical length 30 inch (762 mm), horizontal lengths 31 1/2 inch (800 mm)
- 2 3/4 inch (70 mm) deep, rail diameter 1 5/16 inch (33 mm), rose diameter 2 3/4 inch (70 mm)
- wall mounting with wall-specific fixing material and roses from HEWI
- can be mounted on the right and left side
- maximum loading capacity 330 lbs (150 kg)
- suitable for removable hanging seats 801.51US100 and 801.51US110
- made from high-grade synthetic material in the HEWI colors 99 (pure white), 95 (stone gray), 92 (anthracite gray), 90 (jet black), 86 (sand), 84 (umber) and 33 (ruby red)
- meets the requirements of 2010 ADA standards and ICC/ANSI A117.1-2017
Design awards
Awarded by
Documents
| Ausschreiben.de | Link | |
| Colour Chart | Link |
Shower grab bar (ADA)
30" x 31 1/2" x 31 1/2" (762 x 800 x 800 mm)
Article number 801.35US200 92
