Shower grab rail (ADA)

version left
Article number 900.35.16460 SC

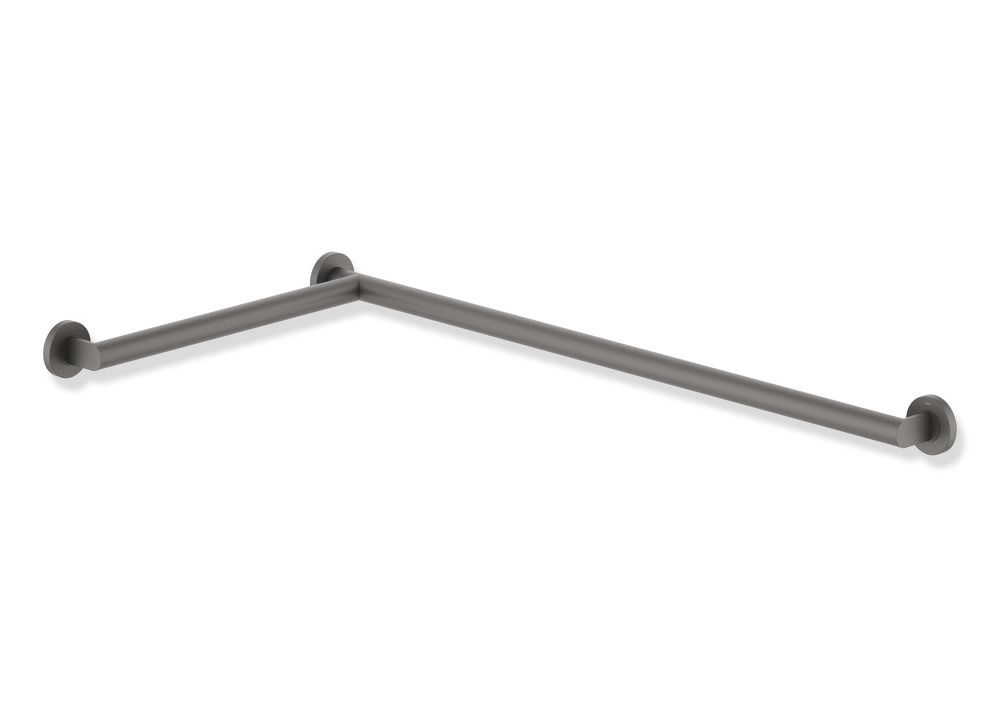

HEWI Shower handrail, System 900
made of high-quality stainless steel, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica), horizontally arranged rails with mounting roses, left-hand version, horizontal lengths 947 x 495 mm, 70 mm deep, rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm, weight capacity up to 150 kg, including HEWI fixing material, fulfils the requirements of the 2010 ADA Standards and ICC/ANSI A117.1-2017.

Current color: SC (matt dark grey pearl mica)

Declaration of consent for use

I have read the conditions for using the media download and hereby accept them

In what size would you like to receive the images?

Gallery

600 x 450 px

460 x 460 px

1000 x 1000 px

Original

Original size

How would you like to receive the images?

Download By email

Downloads and documents

Product data sheet

Add to the comparison list comparison list

EAN

4014885563594

Diameter bar

32 mm

Version

left (user perspective)

Colour

SCSC (matt dark grey pearl mica)

Material

Powder-coated

This article is also available in special colours.

Shower handrail, System 900
- horizontally arranged rails connected at right-angles, with mounting roses
- left-hand version
- horizontal lengths 37 5/16 inch x 19 1/2 inch (947 x 495 mm), 2 3/4 inch (70 mm) deep
- rail diameter 1 1/4 inch (32 mm), tube thickness 1/16 inch (2 mm), rose diameter 2 3/4 inch (70 mm)
- weight capacity up to 330 lbs (150 kg)
- made of high-quality stainless steel, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica)
- reduced number of mounting roses due to innovative corner connection
- including non-corrosive and tested HEWI fixing material for wall mounting and sealing tape for sealing the drilling points
- fulfils the requirements of the 2010 ADA Standards and ICC/ANSI A117.1-2017
