Shower grab rail (ADA)

version left
Article number 900.35.16560 SC

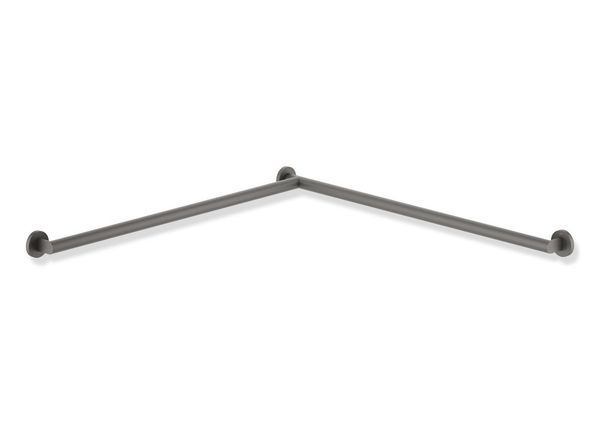

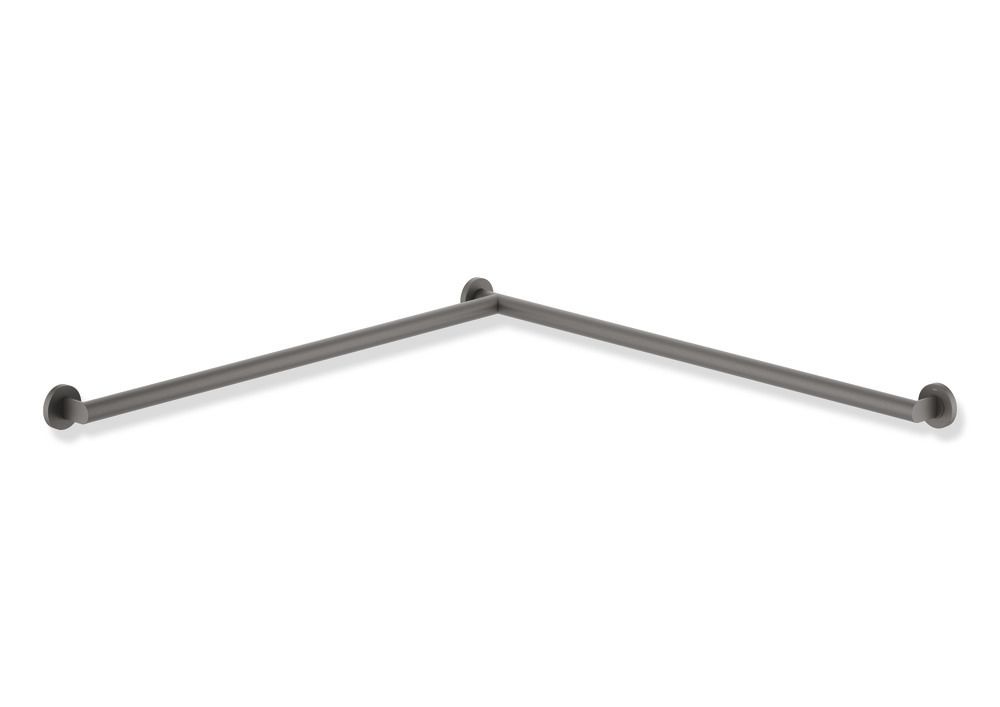

HEWI Shower handrail, System 900
made of high-quality stainless steel, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica), horizontally arranged rails with mounting roses, left-hand version, horizontal lengths 37 5/16 inch (947 mm), 70 mm deep, rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm, weight capacity up to 150 kg, including HEWI fixing material, fulfils the requirements of the 2010 ADA Standards and ICC/ANSI A117.1-2017.

Current color: SC (matt dark grey pearl mica)

Downloads and documents

Product data sheet

Add to the comparison list comparison list

EAN

4014885563631

article group

Shower grab rail

Diameter bar

32 mm

Version

left (user perspective)

Colour

SCSC (matt dark grey pearl mica)

Material

Powder-coated

This article is also available in special colours.

Shower handrail, System 900
- horizontally arranged rails connected at right-angles, with mounting roses
- left-hand version

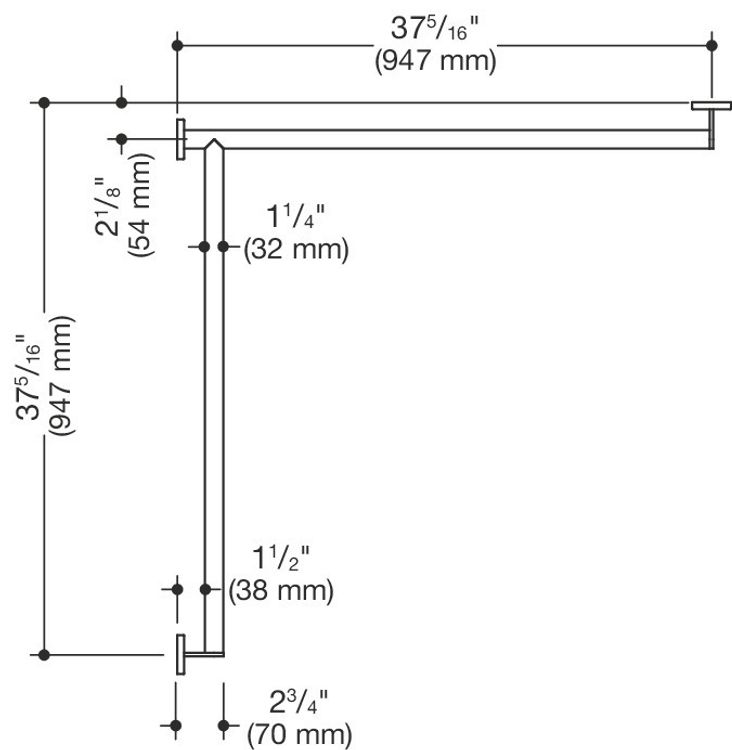

- horizontal lengths 37 5/16 inch (947 mm), 2 3/4 inch (70 mm) deep
- rail diameter 1 1/4 inch (32 mm), tube thickness 1/16 inch (2 mm), rose diameter 2 3/4 inch (70 mm)
- weight capacity up to 330 lbs (150 kg)
- made of high-quality stainless steel, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica)
- reduced number of mounting roses due to innovative corner connection
- including non-corrosive and tested HEWI fixing material for wall mounting and sealing tape for sealing the drilling points
- fulfils the requirements of the 2010 ADA Standards and ICC/ANSI A117.1-2017
