800 x 560 mm, chromoptisch beschichtet, Stahlkern
Article number 950.35.13050
HEWI Shower grab rail WARM TOUCH
horizontal rails joined to form a right angle, made of high-quality chrome-look coated polyamide that is warm to touch, with continuous, corrosion resistant steel core, horizontal lengths 800 mm and 560 mm, 90 mm deep, rail diameter 33 mm, including non-corrosive HEWI fixing material.
Show more
horizontal rails joined to form a right angle, made of high-quality chrome-look coated polyamide that is warm to touch, with continuous, corrosion resistant steel core, horizontal lengths 800 mm and 560 mm, 90 mm deep, rail diameter 33 mm, including non-corrosive HEWI fixing material.
EAN
4014885613237
Version
continuous steel core/ steel fixing roses
Size
800 x 560 mm
Material
Chrome
Shower grab rail
- horizontal rails joined to form a right angle
- with 45° end bends facing the wall
- made of high-quality chrome-look coated polyamide that is warm to touch
- with continuous, corrosion resistant steel core
- horizontal lengths 800 mm and 560 mm
- 90 mm deep, rail diameter 33 mm
- wall connection with discreet supports (diameter 18 mm) perpendicular to wall and flat roses
- rose diameter 80 mm, cap height 13 mm
- easy installation due to individually able fixing plates made of high-quality stainless steel for hanging the shower grab rail
- fixing with grub screw located on the underside of the rose
- including non-corrosive HEWI fixing material
- Please note when using with hanging seats: Compatibility check required.
- A detailed list of possible combinations of hand rails, L-shaped rails and shower handrails with matching hanging seats can be found in our online catalogue in the download area of the respective product.
- horizontal rails joined to form a right angle
- with 45° end bends facing the wall
- made of high-quality chrome-look coated polyamide that is warm to touch
- with continuous, corrosion resistant steel core
- horizontal lengths 800 mm and 560 mm
- 90 mm deep, rail diameter 33 mm
- wall connection with discreet supports (diameter 18 mm) perpendicular to wall and flat roses
- rose diameter 80 mm, cap height 13 mm
- easy installation due to individually able fixing plates made of high-quality stainless steel for hanging the shower grab rail
- fixing with grub screw located on the underside of the rose
- including non-corrosive HEWI fixing material
- Please note when using with hanging seats: Compatibility check required.
- A detailed list of possible combinations of hand rails, L-shaped rails and shower handrails with matching hanging seats can be found in our online catalogue in the download area of the respective product.
Design awards
Awarded by
Downloads

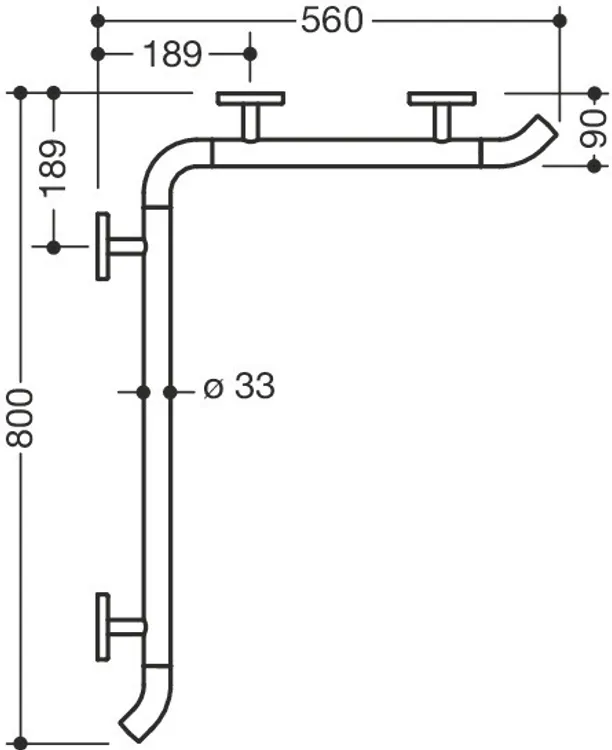

| 2D drawing | DXF | |
| 3DF | DXF | |
| Ordering aid System 800K Compatibility removable hanging seat and rails.pdf | ||
| Product data sheet | ||
| Installation instructions |
Documents
| Colour Chart | Link |
Shower grab rail WARM TOUCH
800 x 560 mm, chromoptisch beschichtet, Stahlkern
Article number 950.35.13050
