{AQ 950
Article number AQ1.12M10340}

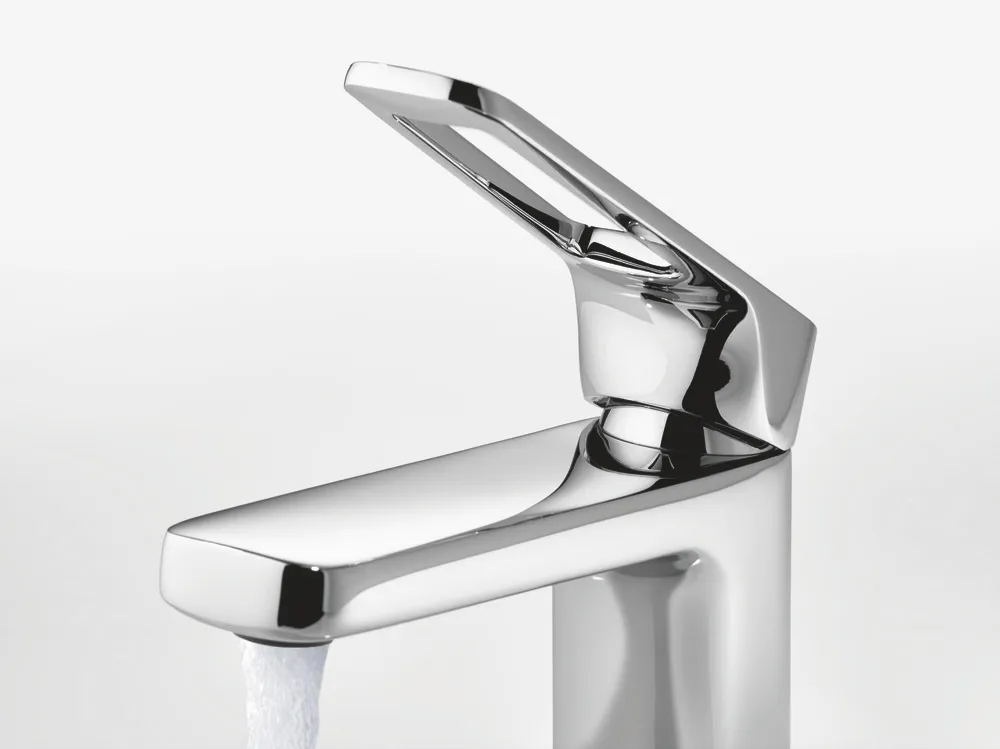

HEWI Single-lever washbasin mixer tap
high-quality chrome-plated, cubic, Flow rate 5 l/min, Brass fitting body, open operating lever with hot-cold marking, 135 mm high, Projection: 187 mm, rigid outlet, not including waste fittings, Noise class 1.
Show more
high-quality chrome-plated, cubic, Flow rate 5 l/min, Brass fitting body, open operating lever with hot-cold marking, 135 mm high, Projection: 187 mm, rigid outlet, not including waste fittings, Noise class 1.
EAN
4014885484813
Fitting
Single-lever washbasin mixer tap
Material
Chrome
Single-lever washbasin mixer tap
- high-quality chrome-plated, cubic
- Flow rate 5 l/min
- Ceramic cartridge Kerox K-35OP, pressure resistant up to 35 bar
- Laminar jet controller with dynamic flow control 5 l/min, angle adjustable and anti-theft protection
- Connection via flexible pressure hoses with woven-in hot-cold marking 450 mm long, G 3/8
- Brass fitting body
- open operating lever with hot-cold marking
- 135 mm high, projection 187 mm
- rigid outlet
- not including waste fittings
- suitable for thermal disinfection according to WRAS
- Noise class 1
- WRAS certified
- high-quality chrome-plated, cubic
- Flow rate 5 l/min
- Ceramic cartridge Kerox K-35OP, pressure resistant up to 35 bar
- Laminar jet controller with dynamic flow control 5 l/min, angle adjustable and anti-theft protection
- Connection via flexible pressure hoses with woven-in hot-cold marking 450 mm long, G 3/8
- Brass fitting body
- open operating lever with hot-cold marking
- 135 mm high, projection 187 mm
- rigid outlet
- not including waste fittings
- suitable for thermal disinfection according to WRAS
- Noise class 1
- WRAS certified
Design awards
Awarded by
Downloads
| 2D drawing | DXF | |
| 3DF | DXF | |
| 3DV | DXF | |
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| BIM | Link | |
| Colour Chart | Link |
Single lever washbasin mixer tap
{AQ 950
Article number AQ1.12M10340}
