600 ml
Article number 805.06.100 99

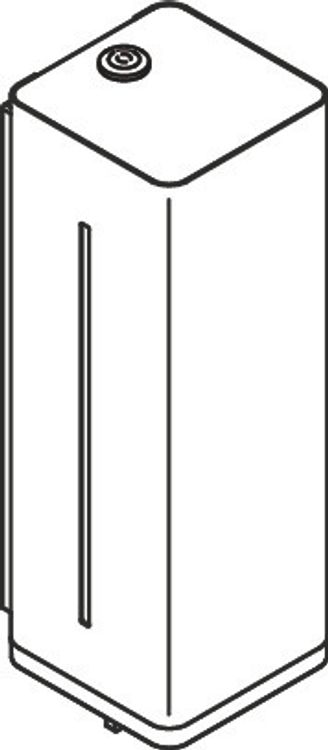

HEWI Range 805 Soap dispenser
cubic body with recessed wall base, with inner container for free filling, capacity 600 ml, inner container can be removed for cleaning, 95 mm wide, 275 mm high and 95 mm deep, wall-mounted base 10 mm deep, made of high-quality stainless steel, Surface satin finished, lever and functional end made of high-quality polyamide in HEWI colours 90 (jet black), 92 (anthracite grey), 98 (signal white) or 99 (pure white), including non-corrosive fixing material, without first filling, not suitable for disinfectant.
Show more cubic body with recessed wall base, with inner container for free filling, capacity 600 ml, inner container can be removed for cleaning, 95 mm wide, 275 mm high and 95 mm deep, wall-mounted base 10 mm deep, made of high-quality stainless steel, Surface satin finished, lever and functional end made of high-quality polyamide in HEWI colours 90 (jet black), 92 (anthracite grey), 98 (signal white) or 99 (pure white), including non-corrosive fixing material, without first filling, not suitable for disinfectant.
Current color: 99 (pure white)
EAN
4014884937655
article group
Disinfectant/soap dispenser
Version
manual
Colour
Material
Stainless steel
Range 805 Soap dispenser
- cubic body with recessed wall base
- used to hold standard liquid soap
- with inner container for free filling, capacity 600 ml
- inner container can be removed for cleaning
- side level indicator
- with locking system as protection against misuse
- 95 mm wide, 275 mm high and 95 mm deep, wall-mounted base 10 mm deep
- for wall mounting
- made of high-quality stainless steel, satin surface finish
- lever and functional end made of high-quality polyamide in HEWI colours 90 (jet black), 92 (anthracite grey), 98 (signal white) or 99 (pure white)
- Suitable for liquid soap with a viscosity of 1,500 to 4,000 mPa-s
- cubic body with recessed wall base
- used to hold standard liquid soap
- with inner container for free filling, capacity 600 ml
- inner container can be removed for cleaning
- side level indicator
- with locking system as protection against misuse
- 95 mm wide, 275 mm high and 95 mm deep, wall-mounted base 10 mm deep
- for wall mounting
- made of high-quality stainless steel, satin surface finish
- lever and functional end made of high-quality polyamide in HEWI colours 90 (jet black), 92 (anthracite grey), 98 (signal white) or 99 (pure white)
- Suitable for liquid soap with a viscosity of 1,500 to 4,000 mPa-s
Design awards
Awarded by
Downloads
| 2D drawing | DXF | |
| 3DF | DXF | |
| 3DV | DXF | |
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| Ausschreiben.de | Link | |
| BIM | Link | |
| Colour Chart | Link |
