{200 ml
Article number 800.06.11041}

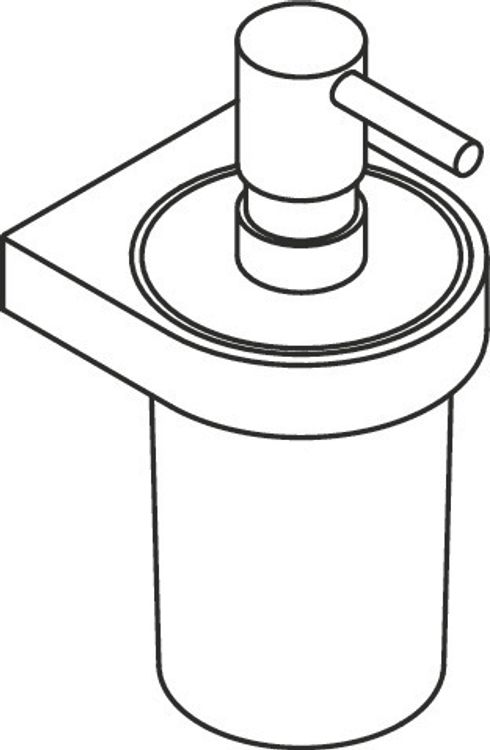

HEWI System 800 holder with Soap or disinfectant dispenser
holder made of metal, high-quality chrome-plated, 81 mm wide, 170 mm high and 92 mm deep, soap dispenser made of high-quality polyamide in HEWI colour 98 (signal white) with a pump made of metal, high-quality chrome-plated, capacity approx. 200 ml, including non-corrosive HEWI fixing material.
Show more
holder made of metal, high-quality chrome-plated, 81 mm wide, 170 mm high and 92 mm deep, soap dispenser made of high-quality polyamide in HEWI colour 98 (signal white) with a pump made of metal, high-quality chrome-plated, capacity approx. 200 ml, including non-corrosive HEWI fixing material.
EAN
4014884987155
Inserts
Synthetic material
Version
manual
Material
Chrome
System 800 Holder with soap or disinfectant dispenser
- ring-shaped wall-mounted bracket
- holder made of metal, high-quality chrome-plated
- holder with protective ring made of synthetic material for a secure, defined position and to protect the insert from damage
- 81 mm wide, 170 mm high and 92 mm deep
- soap dispenser made of high-quality polyamide in HEWI colour 98 (signal white) with a pump made of metal, high-quality chrome-plated
- serves to hold commercially available liquid soap, disinfectants and gels
- capacity approx. 200 ml
- for wall mounting, concealed fixing
- including non-corrosive HEWI fixing material
- ring-shaped wall-mounted bracket
- holder made of metal, high-quality chrome-plated
- holder with protective ring made of synthetic material for a secure, defined position and to protect the insert from damage
- 81 mm wide, 170 mm high and 92 mm deep
- soap dispenser made of high-quality polyamide in HEWI colour 98 (signal white) with a pump made of metal, high-quality chrome-plated
- serves to hold commercially available liquid soap, disinfectants and gels
- capacity approx. 200 ml
- for wall mounting, concealed fixing
- including non-corrosive HEWI fixing material
Design awards
Awarded byDownloads
2D drawing | DXF | |
3DF | DXF | |
Product data sheet | ||
Installation instructions | ||
Cleaning and Care Instructions |
Documents
Colour Chart | Link |
Soap or disinfectant dispenser with holder
{200 ml
Article number 800.06.11041}
