finish - chrome
Article number 100.03.01040

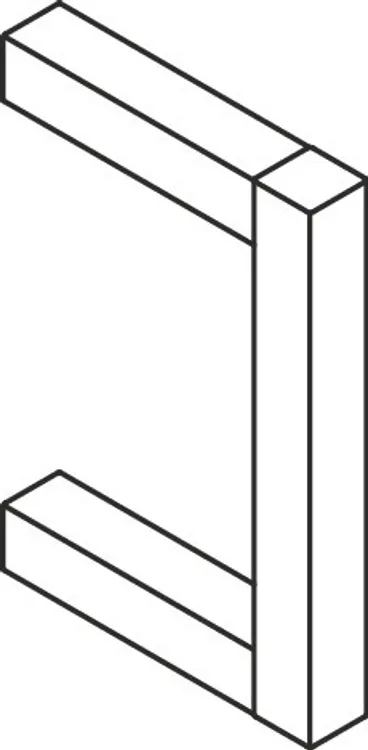

HEWI System 100 Support rail
for holding on to and standing up independently, combinable with shelf 100.03.10045, 20 mm wide, 160 mm high, 106 mm deep, square profile made of metal, high-quality chrome-plated, including non-corrosive fixing material.
Show more for holding on to and standing up independently, combinable with shelf 100.03.10045, 20 mm wide, 160 mm high, 106 mm deep, square profile made of metal, high-quality chrome-plated, including non-corrosive fixing material.
EAN
4014884941997
article group
Support rail
Material
Chrome
System 100 Support rail
- for holding on to and standing up independently
- combinable with HEWI shelf 100.03.10045
- for wall mounting, without roses
- concealed fixing

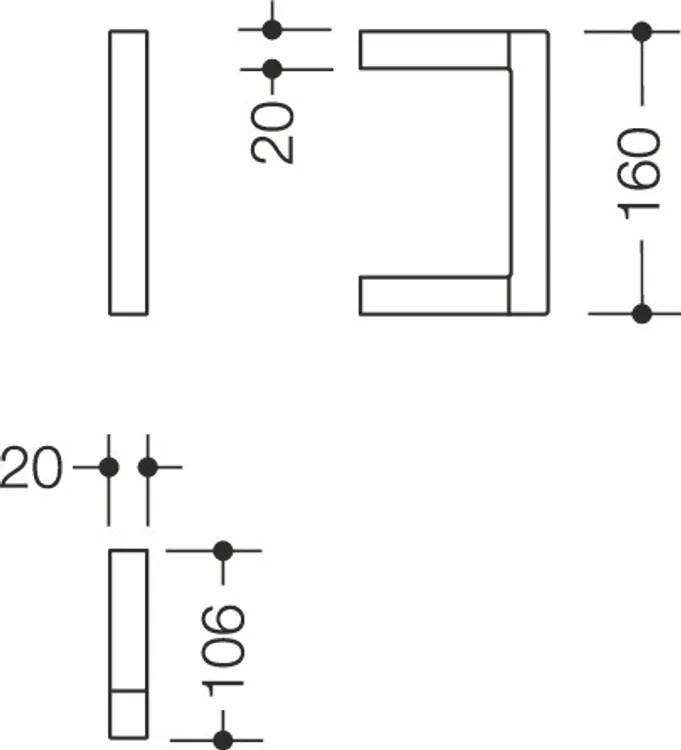

- 20 mm wide, 160 mm high and 106 mm deep
- square profile made of metal, high-quality chrome-plated
- including non-corrosive HEWI fixing material
- for holding on to and standing up independently
- combinable with HEWI shelf 100.03.10045
- for wall mounting, without roses
- concealed fixing
- 20 mm wide, 160 mm high and 106 mm deep
- square profile made of metal, high-quality chrome-plated
- including non-corrosive HEWI fixing material
Design awards
Awarded by
Downloads
| 2D drawing | DXF | |
| 3DF | DXF | |
| 3DV | DXF | |
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| Ausschreiben.de | Link | |
| Colour Chart | Link |
