Support rail

Matt edition
Article number 801.36B120 99

HEWI grab rail
Polyamide, matt, Centre-to-centre 500 mm , Diameter 33 mm, tested up to 200 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg.

Current color: 99 (pure white)

Downloads and documents

Product data sheet

Add to the comparison list comparison list

EAN

4014885599623

article group

Support rail

Diameter bar

33 mm

Version

continuous steel core/ steel fixing roses

Size

500 mm

Colour

99pure white

Material

Polyamide, mat

Range 801 grab bar
- Bar curved up at right-angles at the ends with steel mounting rosettes
- For holding on to and for support
- With continuous, corrosion-resistant steel core
- Wall mounting with wall-specific mounting material and HEWI rosettes
- tested up to 200 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- Centre distance 500 mm

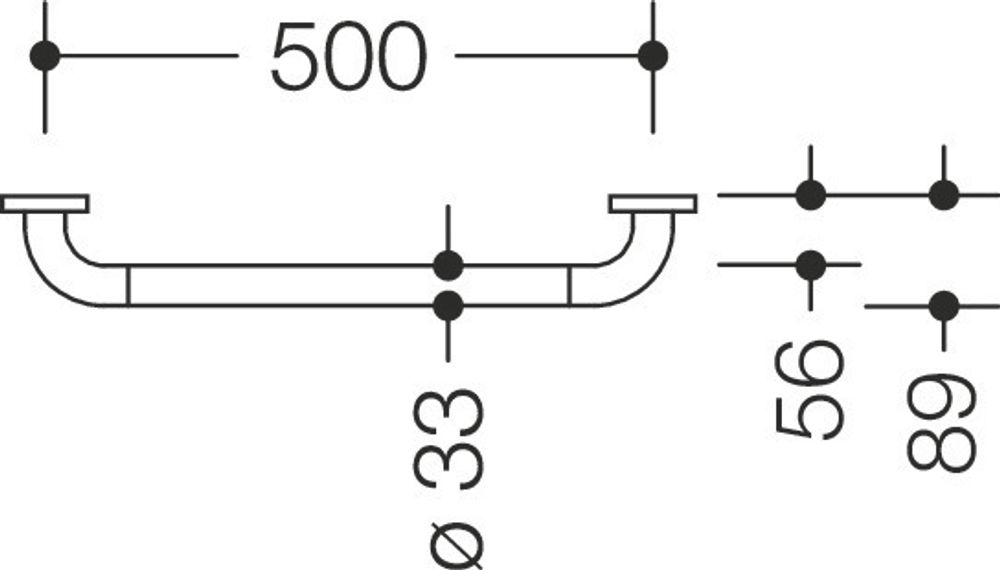

- Depth 89 mm , Clearance to the wall 56 mm , Rod diameter 33 mm, Rosette diameter 70 mm
- made of matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey)
- Please note when using with suspended seats: Compatibility check required.
- A detailed list of the possible combinations of grab rails, Angled rails and shower handrails with matching hanging seats can be found in our online catalogue in the download area of the respective product.
