{Article number 805.36.130}

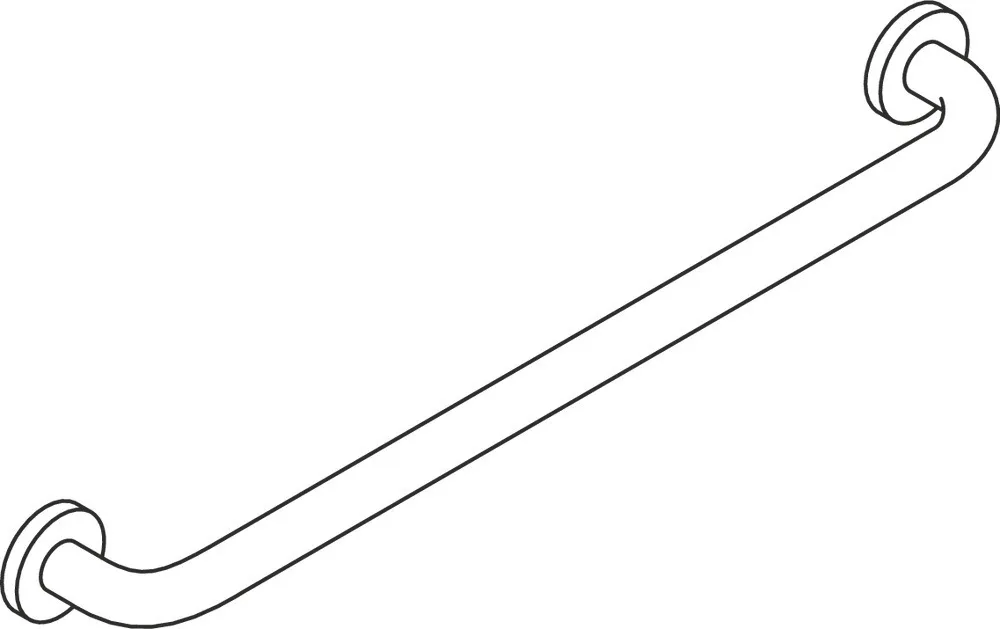

HEWI Range 805 Support rail
rail with right-angled ends and fixing roses, centre-to-centre 600 mm, rail diameter 33 mm, rose diameter 70 mm, made of high-quality stainless steel, Surface satin finished, incl. non-corrosive HEWI fixing material.
Show more
rail with right-angled ends and fixing roses, centre-to-centre 600 mm, rail diameter 33 mm, rose diameter 70 mm, made of high-quality stainless steel, Surface satin finished, incl. non-corrosive HEWI fixing material.
EAN
4014884930021
Size
600 mm
Material
Stainless steel
Range 805 Support rail
- rail with right-angled ends and fixing roses
- for holding on to and providing support
- for wall mounting with special HEWI fixing materials and roses

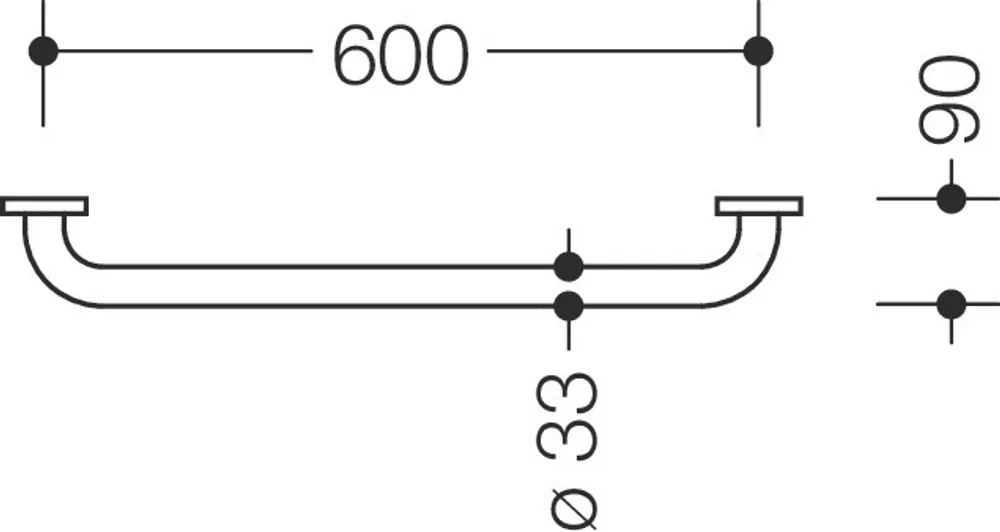

- centre-to-centre 600 mm
- bar diameter 33 mm, tube thickness 2 mm, rose diameter 70 mm
- made of high-quality stainless steel, satin surface finish
- Please note when using with hanging seats: Compatibility check required.
- A detailed list of possible combinations of hand rails, L-shaped rails and shower handrails with matching hanging seats can be found in our online catalogue in the download area of the respective product.
- rail with right-angled ends and fixing roses
- for holding on to and providing support
- for wall mounting with special HEWI fixing materials and roses
- centre-to-centre 600 mm
- bar diameter 33 mm, tube thickness 2 mm, rose diameter 70 mm
- made of high-quality stainless steel, satin surface finish
- Please note when using with hanging seats: Compatibility check required.
- A detailed list of possible combinations of hand rails, L-shaped rails and shower handrails with matching hanging seats can be found in our online catalogue in the download area of the respective product.
Downloads
Documents
| BIM | Link | |
| Colour Chart | Link |
Support rail
{Article number 805.36.130}
