Article number 900.36.003XA}

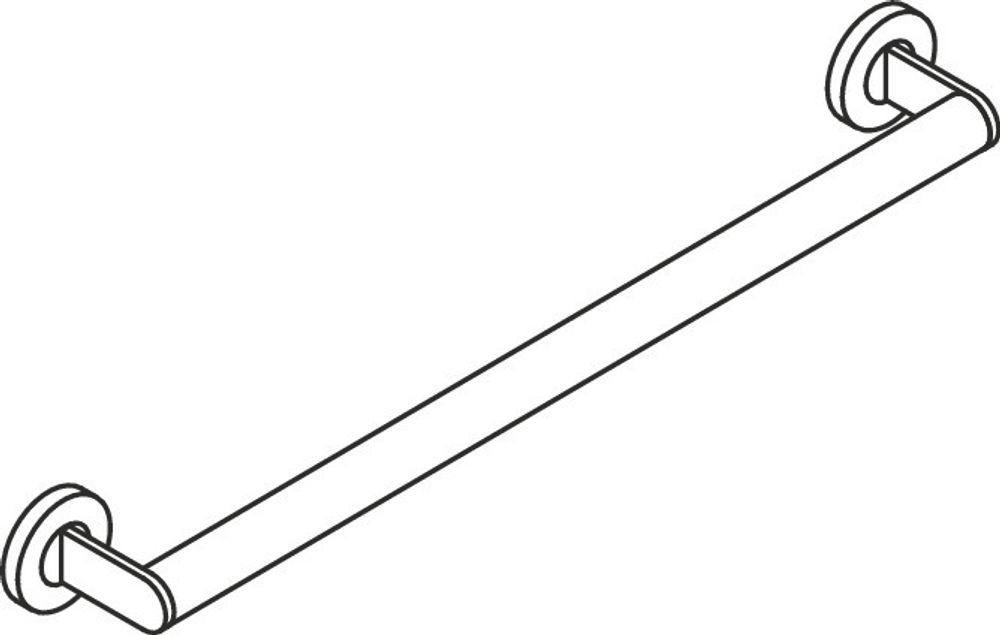

HEWI Grab bar, System 900

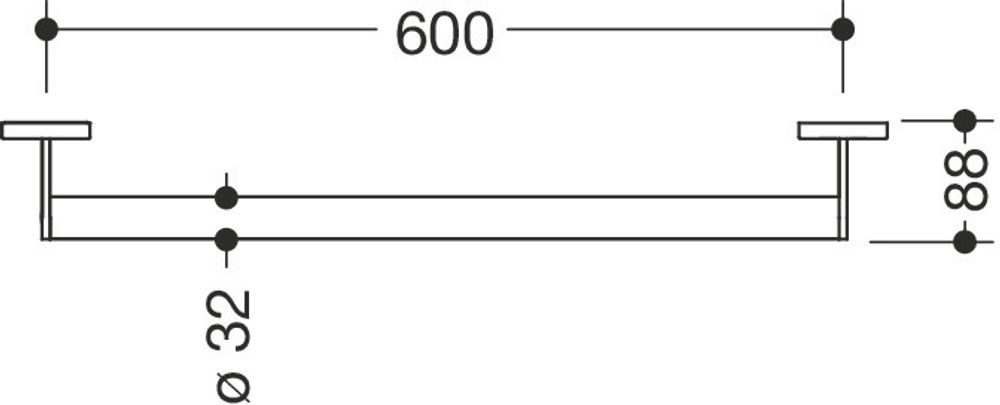

straight rail with supports and roses, made of stainless steel, satin, centre-to-centre 600 mm, 88 mm deep, rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm, including non-corrosive HEWI fixing material.
Show more
straight rail with supports and roses, made of stainless steel, satin, centre-to-centre 600 mm, 88 mm deep, rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm, including non-corrosive HEWI fixing material.
EAN
4014885526803
Diameter bar
32 mm
Size
600 mm
Material
Stainless steel
Grab bar, System 900
- straight rail with supports straight to the wall and roses
- fixing spacing 600 mm, 88 mm deep
- rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm
- made of stainless steel, satin
- including non-corrosive and tested HEWI fixing material for wall mounting and sealing tape for sealing the drilling points
- Please note when using with hanging seats: Compatibility check required.
- A detailed list of possible combinations of hand rails, L-shaped rails and shower handrails with matching hanging seats can be found in our online catalogue in the download area of the respective product.
- straight rail with supports straight to the wall and roses
- fixing spacing 600 mm, 88 mm deep
- rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm
- made of stainless steel, satin
- including non-corrosive and tested HEWI fixing material for wall mounting and sealing tape for sealing the drilling points
- Please note when using with hanging seats: Compatibility check required.
- A detailed list of possible combinations of hand rails, L-shaped rails and shower handrails with matching hanging seats can be found in our online catalogue in the download area of the respective product.
Design awards
Awarded by
Downloads
| 2D drawing | DXF | |
| 3DF | DXF | |
| Ordering aid System900 Compatibility removable hanging seat and rails.pdf | ||
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| BIM | Link | |
| Colour Chart | Link | |
| Installation video 1 | Link |
