Support rail

Article number 900.36.03260 SC

HEWI grab rail
Stainless steel, Powder-coated, Centre distance 500 mm, Diameter 30 mm, tested up to 200 kg when used with HEWI fixing material, Recommended maximum weight of the user: 150 kg.

Current color: SC (matt dark grey pearl mica)

Downloads and documents

Product data sheet

Add to the comparison list comparison list

EAN

4014885558118

article group

Support rail

Diameter bar

30 mm

Size

500 mm

Colour

SCSC (matt dark grey pearl mica)

Assembly

fixed

Material

Powder-coated

This article is also available in special colours.

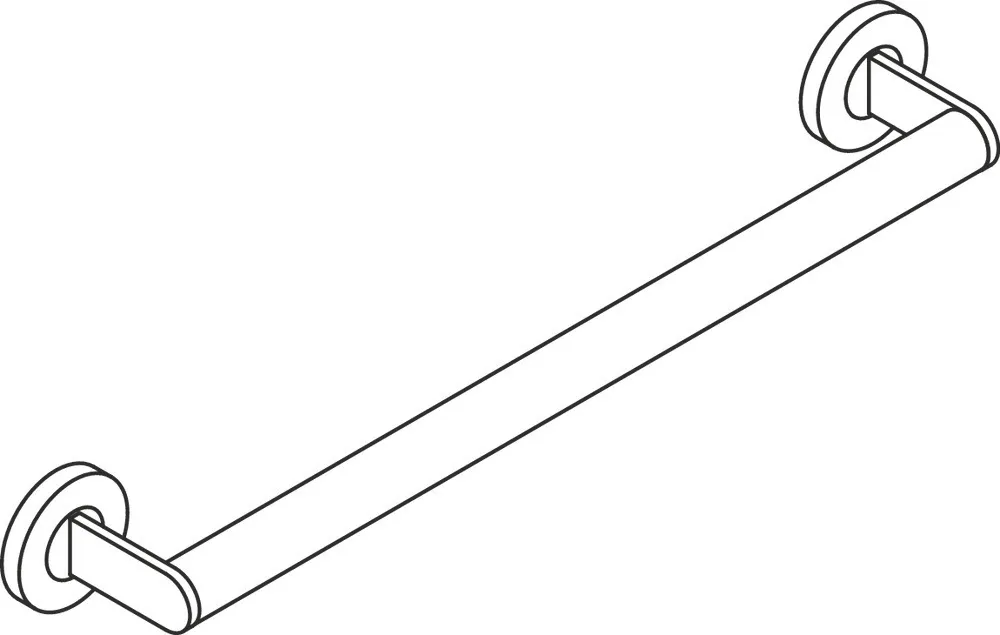

Support rail, System 900
- Straight bar with uprights and rosettes moulded to the wall
- Centre distance 500 mm, 87 mm deep
- Rod diameter 30 mm, Tube thickness 2 mm, Rosette diameter 70 mm
- Made from high-quality stainless steel, powder-coated in HEWI colours DX (deep matt white), DC (matt black) and SC (matt dark grey pearl mica)
- Including non-corrosive and tested HEWI fixing material for wall mounting and sealing tape to seal the drilling points
- Please note when using with suspended seats: Compatibility check required.
- tested up to 200 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- A detailed list of the possible combinations of grab rails, Angled rails and shower handrails with matching hanging seats can be found in our online catalogue in the download area of the respective product.
