Support rail (ADA)

24" (610 mm)
Article number 900.36.06360 SC

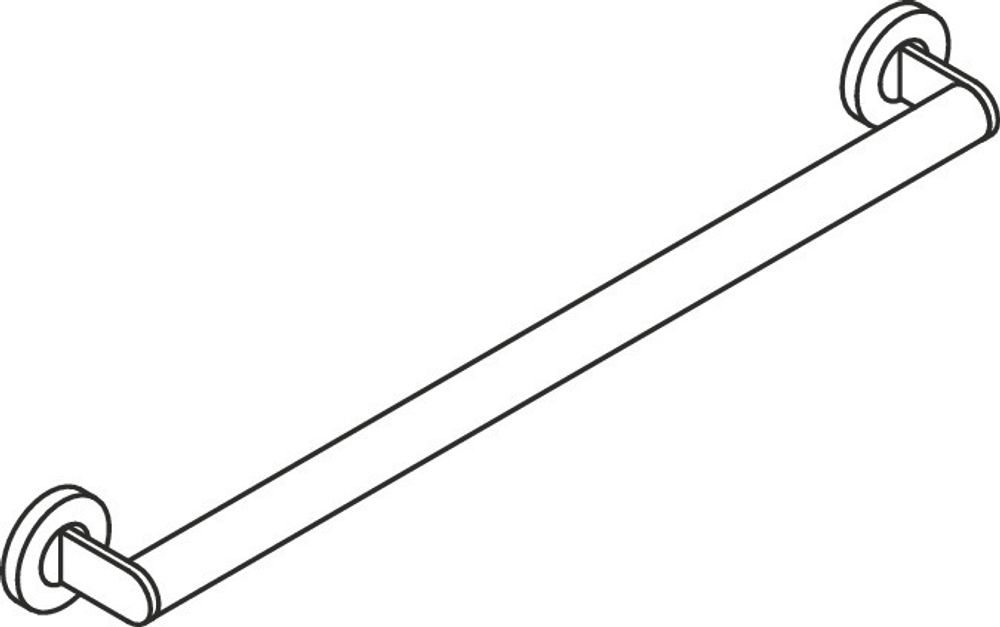

HEWI Grab bar, System 900
straight rail with supports and roses, made of stainless steel, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica), fixing spacing 24 inch (610 mm), 70 mm deep, rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm, weight capacity up to 150 kg
including non-corrosive HEWI fixing material, fulfils the requirements of the 2010 ADA Standards and ICC/ANSI A117.1-2017.

Current color: SC (matt dark grey pearl mica)

Downloads and documents

Product data sheet

Add to the comparison list comparison list

EAN

4014885565116

article group

Support rail

Diameter bar

32 mm

Colour

SCSC (matt dark grey pearl mica)

Assembly

fixed

Material

Powder-coated

This article is also available in special colours.

Grab bar, System 900
- straight rail with supports straight to the wall and roses

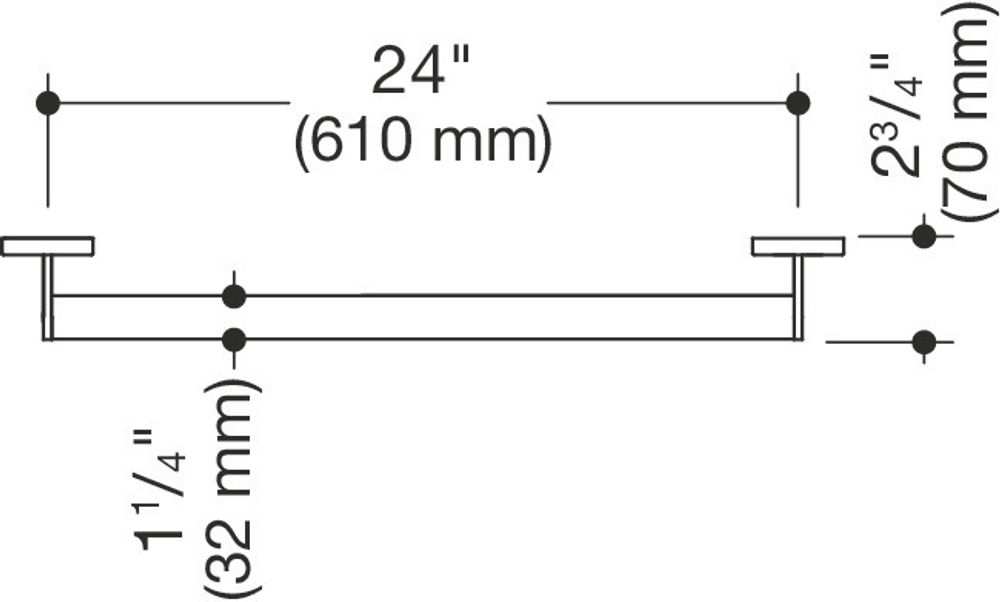

- fixing spacing 24 inch (610 mm), 2 3/4 inch (70 mm) deep
- rail diameter 1 1/4 inch (32 mm), tube thickness 1/16 inch (2 mm), rose diameter 2 3/4 inch (70 mm)
- weight capacity up to 330 lbs (150 kg)
- made of high-quality stainless steel, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica)
- including non-corrosive and tested HEWI fixing material for wall mounting and sealing tape for sealing the drilling points
- fulfils the requirements of the 2010 ADA Standards and ICC/ANSI A117.1-2017
