Support rail

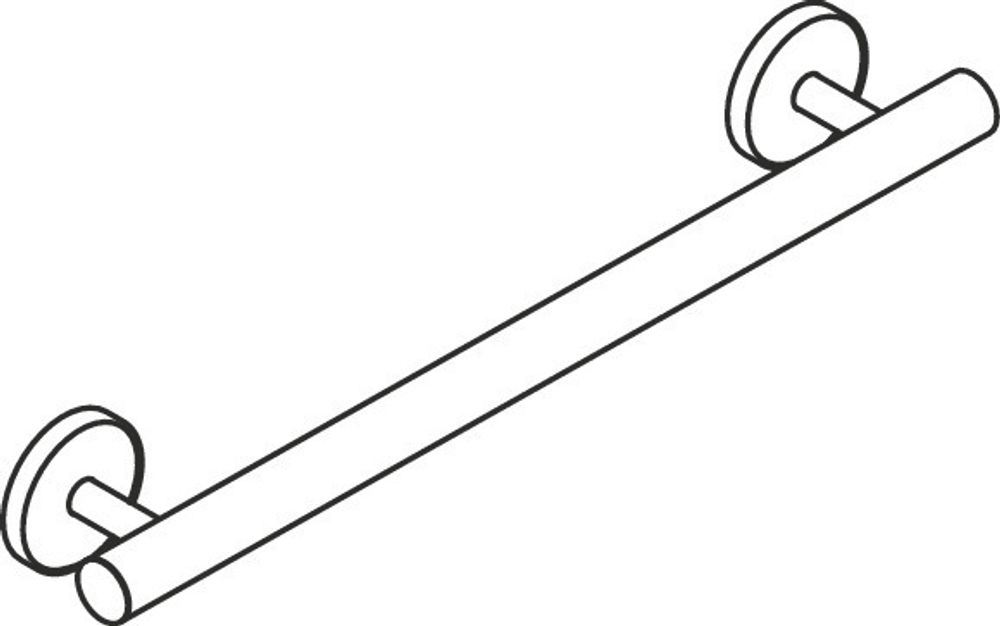

System 800 K Support rail
- Straight bar with uprights and rosettes moulded to the wall
- Used for holding and supporting
- made of high-quality polyamide in the HEWI colours 98 (signal white) or 99 (pure white)
- With continuous, corrosion-resistant steel core

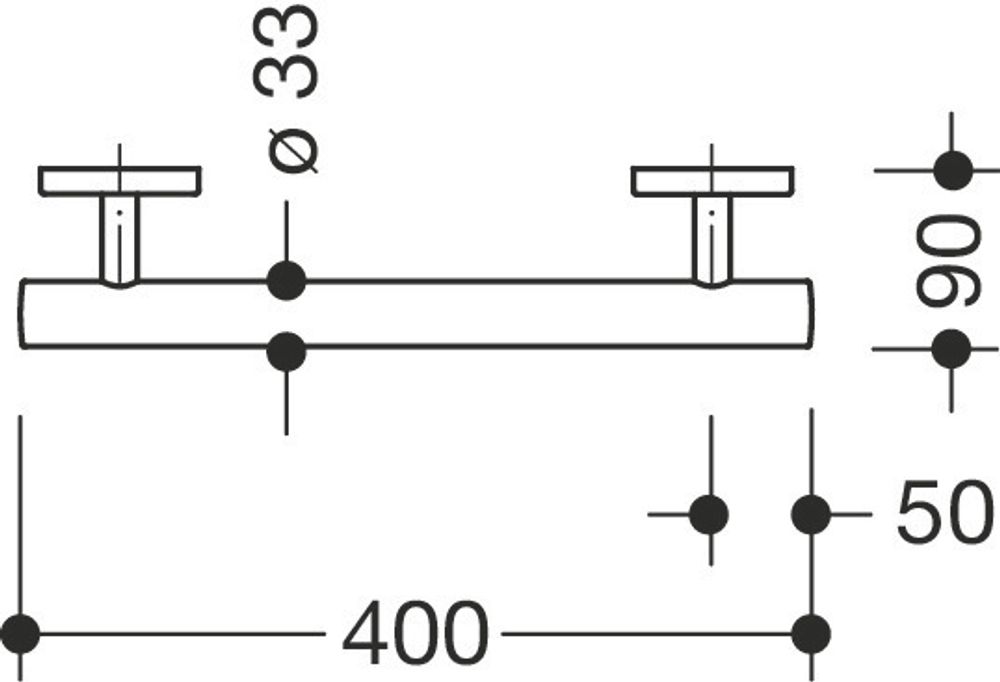

- Outer dimension 400 mm, Rod diameter 33 mm, 90 mm deep
- Wall connection with filigree supports straight to the wall (diameter 18 mm) and flat rosettes
- Rosette diameter 80 mm, cap height 13 mm
- Simple installation thanks to individually mountable fastening plates made of high-quality stainless steel for attaching the grab rail
- including corrosion-free HEWI fixing material
- Please note when using with suspended seats: Compatibility check required.
- tested up to 200 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- A detailed list of the possible combinations of grab rails, Angled rails and shower handrails with matching hanging seats can be found in our online catalogue in the download area of the respective product.
