Matt edition
Article number BA5.0B 99
HEWI Fixing type

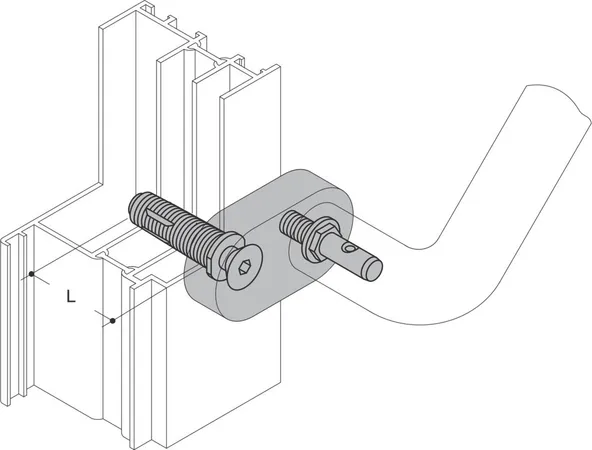

for one-sided handle fixing to solid wood, synthetic material- and 2 - 3 chamber-aluminium-profile. Drillhole in the door 14 mm diameter, Dimension L = 46 mm, door thickness up to 50 mm. Installation tool: hexagon key SW 6 (A/F 6) and SW 10 (A/F 10). Ensures a safe distance of 25 mm from the closing edge. Rose fixing: handle high + 18 mm. Tested to BAGUV guidelines.
Recommendation! When ordering please clarify dimensions and/or features and options
Show more for one-sided handle fixing to solid wood, synthetic material- and 2 - 3 chamber-aluminium-profile. Drillhole in the door 14 mm diameter, Dimension L = 46 mm, door thickness up to 50 mm. Installation tool: hexagon key SW 6 (A/F 6) and SW 10 (A/F 10). Ensures a safe distance of 25 mm from the closing edge. Rose fixing: handle high + 18 mm. Tested to BAGUV guidelines.
Recommendation! When ordering please clarify dimensions and/or features and options
Current color: 99 (pure white)
EAN
4014885593027
article group
Pull Handles | Fixing Types
Colour
Fixing type
for one-sided handle fixing on solid wood, PVC and 2-3 chamber aluminium profiles. Drillhole in the door 14 mm, dimension L = 46 mm, door thickness up to 50 mm. Ensures a safe distance of 25 mm from the closing edge. Rose fixing: overall handle height + 18 mm. Tested to BAGUV guidelines. Ensures a safe distance of 25 mm from the closing edge. Rose fixing: overall handle height + 18 mm. Tested to BAGUV guidelines.
for one-sided handle fixing on solid wood, PVC and 2-3 chamber aluminium profiles. Drillhole in the door 14 mm, dimension L = 46 mm, door thickness up to 50 mm. Ensures a safe distance of 25 mm from the closing edge. Rose fixing: overall handle height + 18 mm. Tested to BAGUV guidelines. Ensures a safe distance of 25 mm from the closing edge. Rose fixing: overall handle height + 18 mm. Tested to BAGUV guidelines.
