{650 mm wide, ergonomic handles, with overflow
Article number 950.11.140}

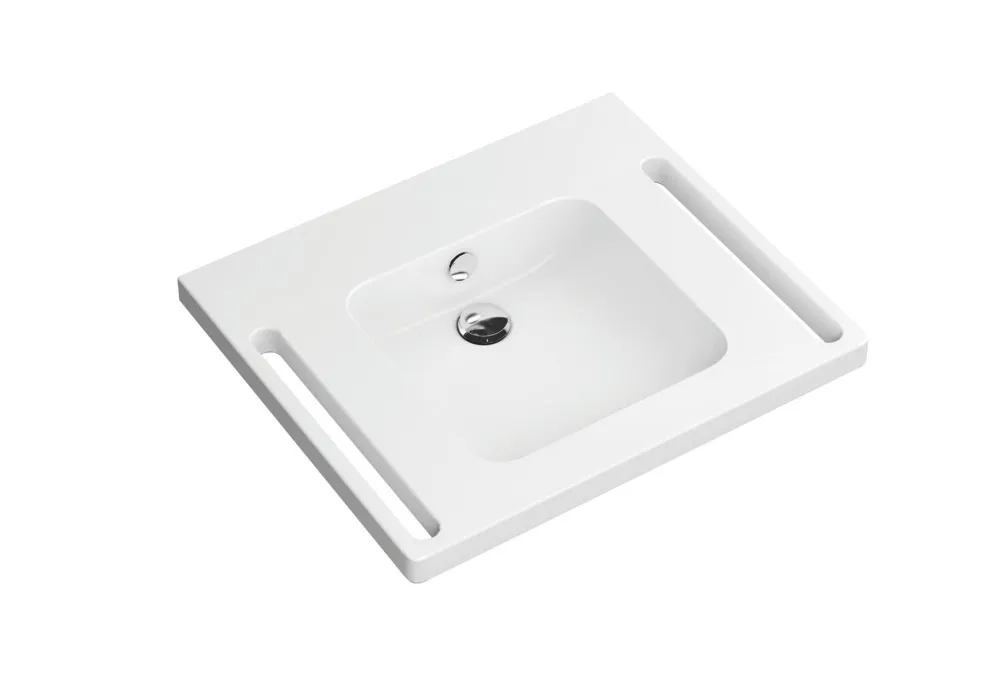

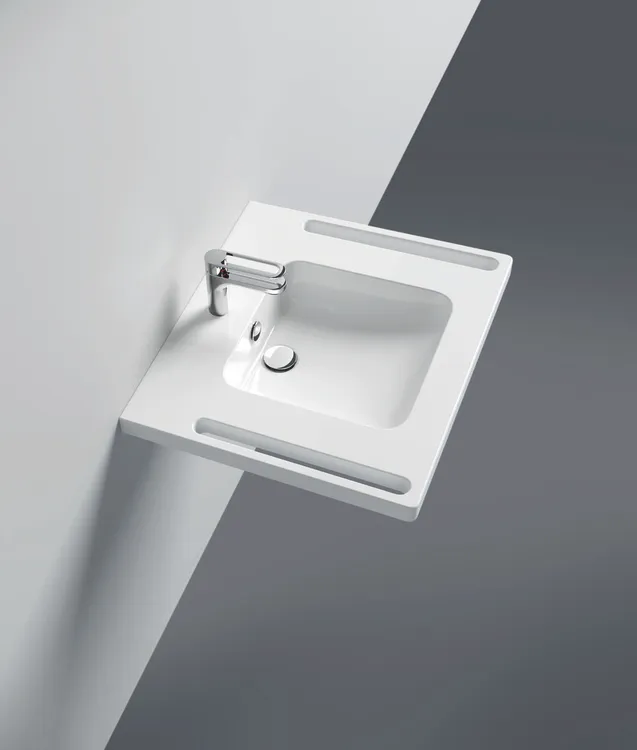

HEWI Washbasin
made of mineral composite material with non-porous surface, integrated handle to hold onto on the side, can also be used as a towel holder, includes overflow with rose and cover, for wall-mounted fittings, wheelchair accessible, meets the requirements of DIN 18040 and ÖNORM B1600/1601, 650 mm wide, 550 mm deep, CE and UKCA marking according to Construction Products Regulation No. 305/2011.
Show more
made of mineral composite material with non-porous surface, integrated handle to hold onto on the side, can also be used as a towel holder, includes overflow with rose and cover, for wall-mounted fittings, wheelchair accessible, meets the requirements of DIN 18040 and ÖNORM B1600/1601, 650 mm wide, 550 mm deep, CE and UKCA marking according to Construction Products Regulation No. 305/2011.
EAN
4014885560067
Fitting preparation
for wall-mounted fittings
Kind
- Accessible washbasins
Washbasin width
650 mm
Washbasin
- made of mineral composite material with non-porous surface
- with shelf and deep rectangular basin with generous radii
- integrated handle to hold onto on the side, can also be used as a towel holder
- includes overflow with rose and cover
- the overflow can be replaced and renewed if necessary
- overflow is mounted between drain and siphon under the washbasin, h=25 mm, ø=70 mm
- for wall fitting
- wheelchair accessible to DIN 18040 and ÖNORM B1600/1601
- loading capacity to EN 14688
- 650 mm wide, 550 mm deep
- wash trough depth 100 mm
- for hanger bolt fixing
- CE and UKCA marking according to Construction Products Regulation No. 305/2011
- made of mineral composite material with non-porous surface
- with shelf and deep rectangular basin with generous radii
- integrated handle to hold onto on the side, can also be used as a towel holder
- includes overflow with rose and cover
- the overflow can be replaced and renewed if necessary
- overflow is mounted between drain and siphon under the washbasin, h=25 mm, ø=70 mm
- for wall fitting
- wheelchair accessible to DIN 18040 and ÖNORM B1600/1601
- loading capacity to EN 14688
- 650 mm wide, 550 mm deep
- wash trough depth 100 mm
- for hanger bolt fixing
- CE and UKCA marking according to Construction Products Regulation No. 305/2011
Design awards
Awarded by
Downloads

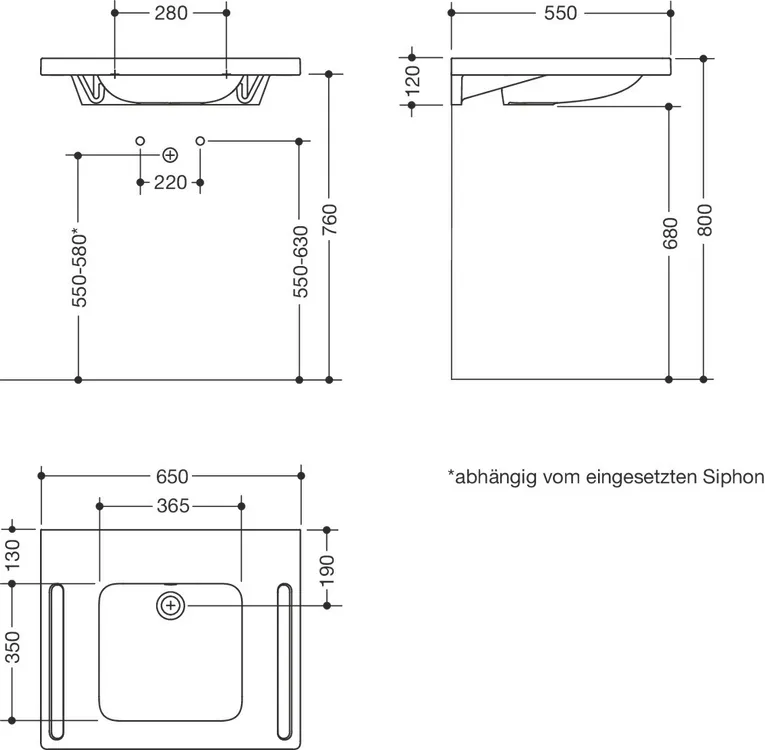

| 2D drawing | DXF | |
| 3DF | DXF | |
| Product data sheet | ||
| Performance declaration | ||
| Assembly note | ||
| Cleaning and Care Instructions |
Documents
| Colour Chart | Link |
