Article number 950.11.163

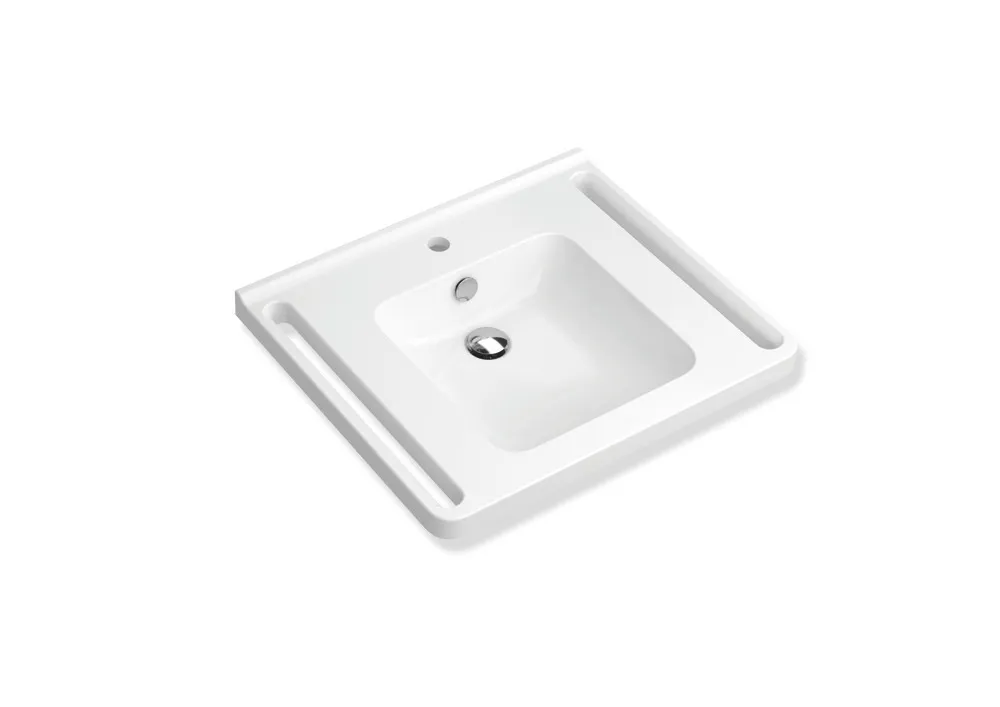

HEWI washbasin
made of mineral composite, alpine white, with shelf and deep rectangular basin, width 650 mm, 550 mm deep, wash bowl recess 100 mm, includes overflow with rose and cover, surge edge to the wall, prepared for single hole mixer tap, integrated ergonomic handle to hold onto on the side, can also be used as a towel holder, wheelchair accessible to DIN 18040 and ÖNORM B1600/1601, CE marking according to Construction Products Regulation No. 305/2011.
Show more
made of mineral composite, alpine white, with shelf and deep rectangular basin, width 650 mm, 550 mm deep, wash bowl recess 100 mm, includes overflow with rose and cover, surge edge to the wall, prepared for single hole mixer tap, integrated ergonomic handle to hold onto on the side, can also be used as a towel holder, wheelchair accessible to DIN 18040 and ÖNORM B1600/1601, CE marking according to Construction Products Regulation No. 305/2011.
EAN
4014885658375
Fitting preparation
for single hole mixer tap
Kind
- Accessible washbasins (gushing edge)
Washbasin width
650 mm
Washbasin
- made of mineral composite with non-porous surface, alpine white
- surge edge to the wall
- with shelf and deep rectangular basin with generous radii
- integrated ergonomic gripping feature on the side, can be used as a towel holder
- wheelchair accessible to DIN 18040 and ÖNORM B1600/1601
- 650 mm wide and 550 mm deep
- wash bowl recess 100 mm
- prepared for single hole mixer tap
- includes overflow with rose and cover
- overflow can be replaced and renewed if necessary
- overflow is mounted between drain and siphon under the washbasin, h=25 mm, ø=70 mm
- weight capacity to EN 14688
- for hanger bolt fixing
- CE marking according to Construction Products Regulation No. 305/2011
- made of mineral composite with non-porous surface, alpine white
- surge edge to the wall
- with shelf and deep rectangular basin with generous radii
- integrated ergonomic gripping feature on the side, can be used as a towel holder
- wheelchair accessible to DIN 18040 and ÖNORM B1600/1601
- 650 mm wide and 550 mm deep
- wash bowl recess 100 mm
- prepared for single hole mixer tap
- includes overflow with rose and cover
- overflow can be replaced and renewed if necessary
- overflow is mounted between drain and siphon under the washbasin, h=25 mm, ø=70 mm
- weight capacity to EN 14688
- for hanger bolt fixing
- CE marking according to Construction Products Regulation No. 305/2011
Design awards
Awarded by
Downloads

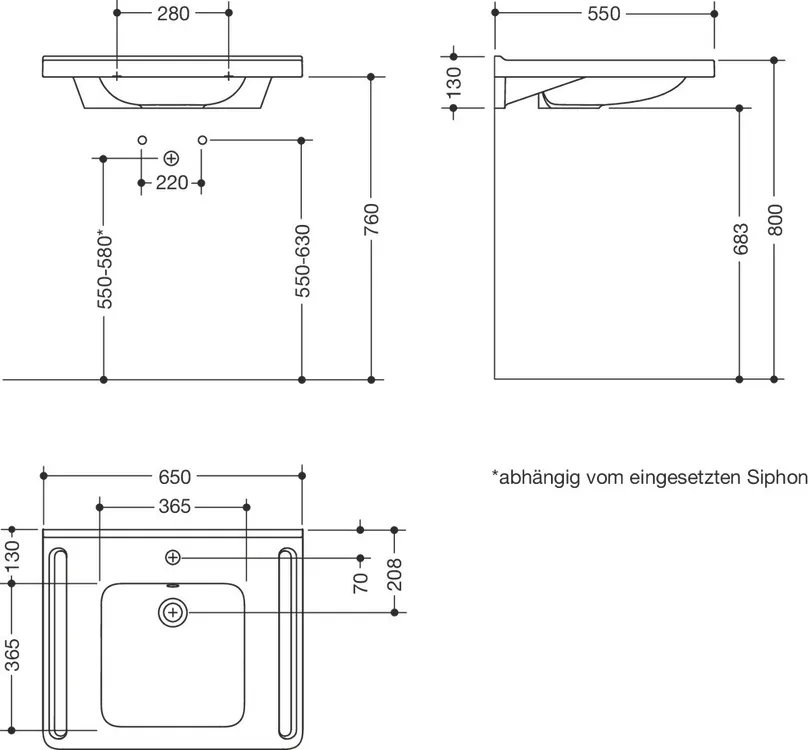

| 2D drawing | DXF | |
| Product data sheet | ||
| Performance declaration | ||
| Assembly note | ||
| Cleaning and Care Instructions |
Documents
| Ausschreiben.de | Link | |
| Colour Chart | Link |
Washbasin
Article number 950.11.163
