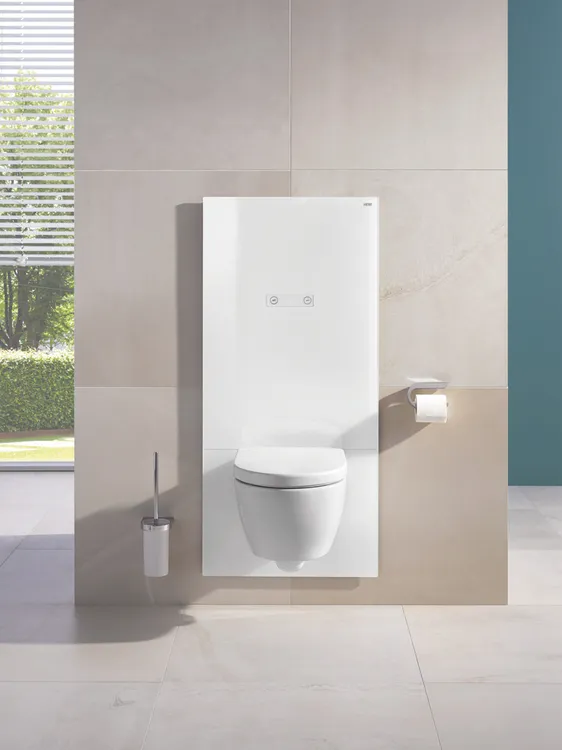

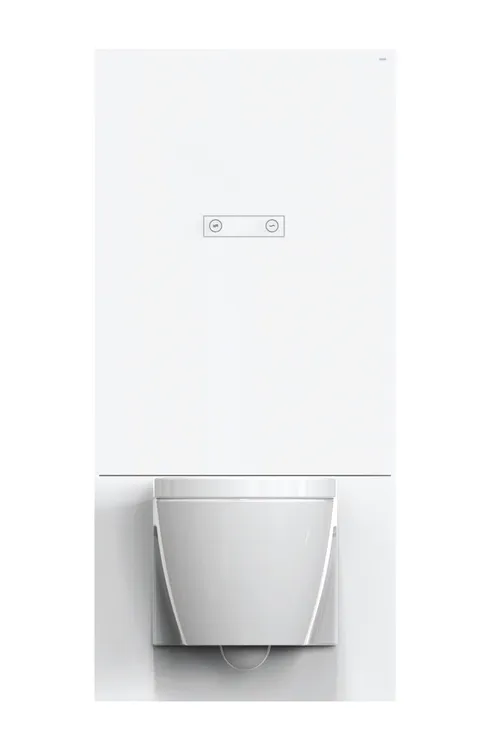

White, manual flushing panel
Article number S50.02.102010
HEWI S 50 WC module
WC expansion module with flat front elevation, for the prewall element WC I, electrically height-adjustable by 150 mm (S50.02.01000, to be ordered separately), supplied without ceramic, appliances, standard ceramic appliances with a fixing spacing of 180 mm or 230 mm can be used, incl. fixing materials for the WC, can be combined with selected bidet-WCs/washlets, dimensions: 606 mm wide, H: 1300 mm, D: 25 mm, Surface made of 6 mm Plexiglas®, with white coloured backing, wall joint with brush seal, with manual flushing panel made of Plexiglas®, inset flush with the surface.
Recommendation! When ordering please clarify dimensions and/or features and options
Show more WC expansion module with flat front elevation, for the prewall element WC I, electrically height-adjustable by 150 mm (S50.02.01000, to be ordered separately), supplied without ceramic, appliances, standard ceramic appliances with a fixing spacing of 180 mm or 230 mm can be used, incl. fixing materials for the WC, can be combined with selected bidet-WCs/washlets, dimensions: 606 mm wide, H: 1300 mm, D: 25 mm, Surface made of 6 mm Plexiglas®, with white coloured backing, wall joint with brush seal, with manual flushing panel made of Plexiglas®, inset flush with the surface.
Recommendation! When ordering please clarify dimensions and/or features and options
EAN
4014885464167
article group
Extension element WC
Variant
manual flushing panel
WC module S 50
- WC expansion module with flat front elevation
- For the prewall element WC I, III and V, electrically height-adjustable by 150 mm (S50.02.01000, S50.02.01100 or S50.02.01200, to be ordered separately)
- Supplied without ceramic appliances, standard ceramic appliances with a fixing spacing of 180 mm or 230 mm can be used
- incl. fixing materials for the WC and Fidlock fixing for the remote control (retaining element S50.01.00001, to be ordered separately)
- can be combined with selected bidet-WCs/washlets
- dimensions: W: 606 mm, H: 1300 mm, D: 25 mm
- Surface made of 6 mm Plexiglas®, with white coloured backing
- Wall joint with brush seal
- With manual flushing panel made of Plexiglas®, inset flush with the surface
- WC expansion module with flat front elevation
- For the prewall element WC I, III and V, electrically height-adjustable by 150 mm (S50.02.01000, S50.02.01100 or S50.02.01200, to be ordered separately)
- Supplied without ceramic appliances, standard ceramic appliances with a fixing spacing of 180 mm or 230 mm can be used
- incl. fixing materials for the WC and Fidlock fixing for the remote control (retaining element S50.01.00001, to be ordered separately)
- can be combined with selected bidet-WCs/washlets
- dimensions: W: 606 mm, H: 1300 mm, D: 25 mm
- Surface made of 6 mm Plexiglas®, with white coloured backing
- Wall joint with brush seal
- With manual flushing panel made of Plexiglas®, inset flush with the surface
Design awards
Awarded by
Downloads

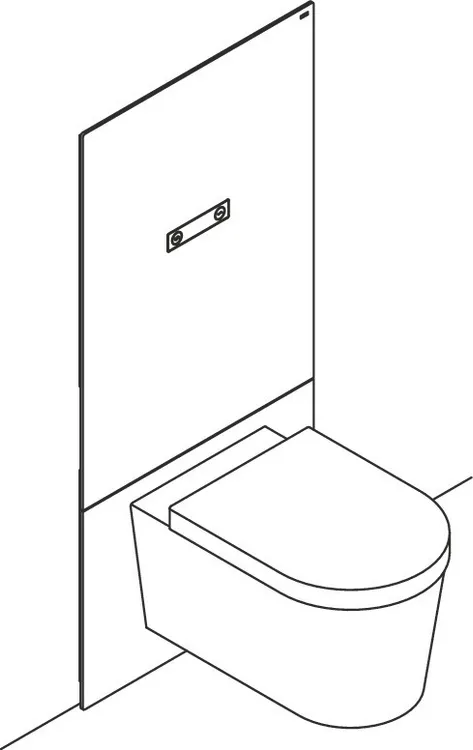

| 2D drawing | DXF | |
| 3DF | DXF | |
| 3DV | DXF | |
| Operating instructions | ||
| Product data sheet | ||
| Installation instructions | ||
| Assembly note | ||
| Cleaning and Care Instructions | ||
| Planning aid |
Documents
| Ausschreiben.de | Link | |
| Colour Chart | Link | |
| Product video 1 | Link |
