Article number 802.01.100L 99

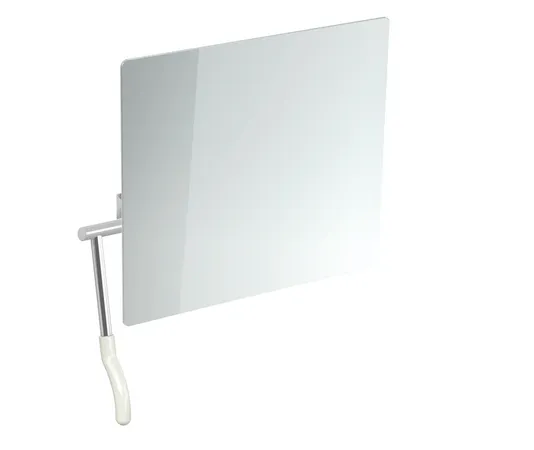

Range 802 LifeSystem Adjustable mirror (lever on left)
rectangular crystal glass mirror with rounded edges and integrated anti-splinter film, lever on left, 725 mm wide, 741 mm high, mirror 69 mm deep, clear distance between wall and handle 139 mm, gripping rail made of high-gloss chrome-plated brass, axle made of polished and anodised aluminium in colour E6 EV1, with ergonomic handle made of polyamide according to HEWI colour chart, including non-corrosive fixing material.
Show more rectangular crystal glass mirror with rounded edges and integrated anti-splinter film, lever on left, 725 mm wide, 741 mm high, mirror 69 mm deep, clear distance between wall and handle 139 mm, gripping rail made of high-gloss chrome-plated brass, axle made of polished and anodised aluminium in colour E6 EV1, with ergonomic handle made of polyamide according to HEWI colour chart, including non-corrosive fixing material.
Current color: 99 (pure white)
EAN
4014884770542
article group
Mirror
With LED
No
Kind
- Adjustable mirrors
Version
with shatter protection film
Colour
Material
Polyamide
L/R options seen from user's view
Range 802 LifeSystem Adjustable mirror (lever on left)
- rectangular crystal glass mirror with rounded edges and integrated anti-splinter film
- easy adjustment of the tilt between 0 to 28° from a seated position
- lever on left
- 725 mm wide, 741 mm high, mirror 69 mm deep, clear distance between wall and handle 139 mm
- gripping rail made of high-gloss chrome-plated brass, axle made of polished and anodised aluminium in colour E6 EV1
- with ergonomic handle made of polyamide according to HEWI colour chart
- including non-corrosive HEWI fixing material.
- rectangular crystal glass mirror with rounded edges and integrated anti-splinter film
- easy adjustment of the tilt between 0 to 28° from a seated position
- lever on left
- 725 mm wide, 741 mm high, mirror 69 mm deep, clear distance between wall and handle 139 mm
- gripping rail made of high-gloss chrome-plated brass, axle made of polished and anodised aluminium in colour E6 EV1
- with ergonomic handle made of polyamide according to HEWI colour chart
- including non-corrosive HEWI fixing material.
Design awards
Awarded by
Downloads
| 2D drawing | DXF | |
| 3DF | DXF | |
| 3DV | DXF | |
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| Ausschreiben.de | Link | |
| Colour Chart | Link |
