meets the requirements of BS standard, model lefthand
Article number 900.51.907XA 98

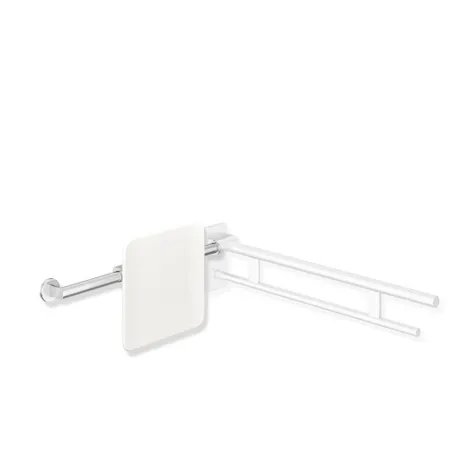

HEWI Backrest rail, System 900
backrest with fixing rails on both sides, one-sided installation on the wall with roses (right), one-sided fitting onto hinged support rails, design (A) from the System 900 (left), 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm, centre-to-centre adjustable (clear dimension between the spar of the hinged support rail and the centre-to-centre of the wall fixing 564-664 mm), backrest made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey), connection made of high-quality stainless steel, satin surface, including non-corrosive fixing material, fulfils the requirements to British-Standard BS 8300:2009 (+A1:2010)/Doc M.
Show more backrest with fixing rails on both sides, one-sided installation on the wall with roses (right), one-sided fitting onto hinged support rails, design (A) from the System 900 (left), 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm, centre-to-centre adjustable (clear dimension between the spar of the hinged support rail and the centre-to-centre of the wall fixing 564-664 mm), backrest made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey), connection made of high-quality stainless steel, satin surface, including non-corrosive fixing material, fulfils the requirements to British-Standard BS 8300:2009 (+A1:2010)/Doc M.
Current color: 98 (signal white)
EAN
4014885539513
article group
Backrest
Mounting distance
564 - 664 mm
Colour
Wall plate
Design A
Variant
one sided hinged support rail
Material Seat/ Backrest
Synthetic material
Material
Stainless steel
Backrest rail, System 900
- backrest with fixing rails on both sides
- serves as back support for toilet users
- one-sided installation on the wall with roses (right)
- one-sided fitting onto hinged support rails, design (A) from the System 900 (left)
- 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm
- centre-to-centre adjustable (clear dimension between the spar of the hinged support rail and the centre-to-centre of the wall fixing 564-664 mm)
- backrest made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey)
- connection made of high-quality stainless steel, surface satin
- including non-corrosive and tested HEWI fixing material
- fulfils the requirements to Britsh-Standard BS 8300:2009 (+A1:2010)/Doc M.
- backrest with fixing rails on both sides
- serves as back support for toilet users
- one-sided installation on the wall with roses (right)
- one-sided fitting onto hinged support rails, design (A) from the System 900 (left)
- 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm
- centre-to-centre adjustable (clear dimension between the spar of the hinged support rail and the centre-to-centre of the wall fixing 564-664 mm)
- backrest made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey)
- connection made of high-quality stainless steel, surface satin
- including non-corrosive and tested HEWI fixing material
- fulfils the requirements to Britsh-Standard BS 8300:2009 (+A1:2010)/Doc M.
Design awards
Awarded by
