HEWI disinfectant and soap dispenser


805.06.350

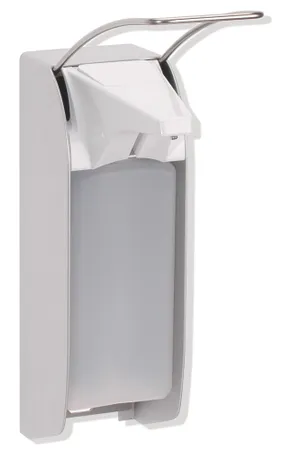

Picture shows item in colour 98 (signal white)



Product information

  • half-open body made of high-quality stainless steel, satin surface finish
  • for dispensing controlled quantities of alcohol-based hand disinfectants
  • for 500 ml disposable bottles
  • the disposable bottles are easy to replace from the front
  • dispenser with long lever
  • metered quantity with multiple settings, dispensing pump made of stainless steel
  • dispenser and pump dishwasher safe and autoclavable up to 134 °C, 3 bar
  • 82 mm wide, 245 mm high and 215 mm deep
  • for wall mounting
  • discharge cover made of synthetic material in HEWI colours 90 (jet black), 92 (anthracite grey), 98 (signal white) or 99 (pure white)
  • incl. 500 ml empty container for free (re-) filling

Technical specifications

Material and colour
Surface/Colours
Stainless steel
XA
Polyamide
98
99
92
90

Downloads

HEWI colour chart
Installation instructions (de, en, fr)
2D drawing
3D drawing
Product Data Sheet
Tender specifications
Download everything

Design Awards

  • iF design award 2008
  • red dot award: Product Design - Honourable Mention 2008
