HEWI Hinged seat


900.51.203XA

meets the requirements of BS standard Surface finish: A = satin

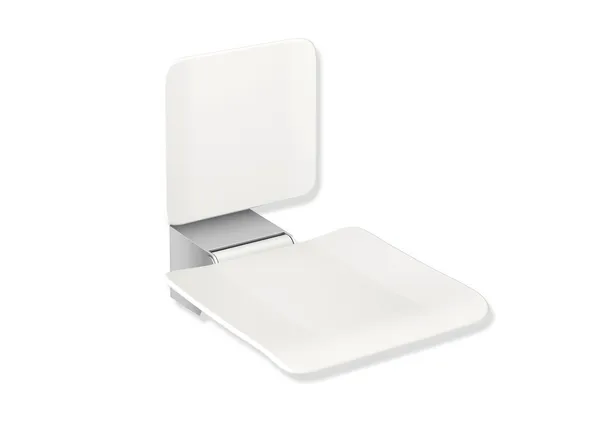

Picture shows item in colour 98 (signal white)
Picture shows item in colour 92 (anthracite grey)



Product information

  • construction consisting of wall bracket, continuous seat and backrest to be mounted separately
  • hinged seat with slip-resistant, textured seat made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey)
  • reinforcement of the seat made of aluminium, powder coated in the colour of the seat
  • wall bracket made of stainless steel, satin
  • seat can be folded up to save space
  • backrest with structured backrest made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey)
  • wall connection made of aluminium, powder coated in the colour of the backrest
  • weight capacity up to 150 kg
  • 450 mm wide, 650 mm deep and 532 mm high
  • seat 450 mm wide and 450 mm deep
  • for mounting with non-corrosive and tested HEWI fixing material
  • including fixing material of the backrest
  • fixing material of the seat for different wall systems (to be ordered separately)
  • sealing tape and sealing discs for sealing the fixing points according to DIN 18534 are included in the scope of delivery
  • fulfils the requirements to Britsh-Standard BS 8300:2009+A1:2010/Doc M

Technical specifications

Material and colour
Surface/Colours
XA
XA
Alternative surfaces/colours
Chr
Chr
Powder coatings
CV
ER
AS
AX

Downloads

HEWI colour chart
BIM
Drill holes
Installation instructions (en)
2D drawing
3D drawing
Product Data Sheet
Tender specifications
Download everything

Design Awards

  • iF gold award 2019
  • German Design Award 2019 - Winner
  • German Innovation Award 2019
  • Iconic Awards 2018 innovative architecture winner
  • universal design expert winner 2019
  • universal design consumer winner 2019
  • ZVSHK Award 2019
Technical information subject to alteration
