Article number 900.50.21540

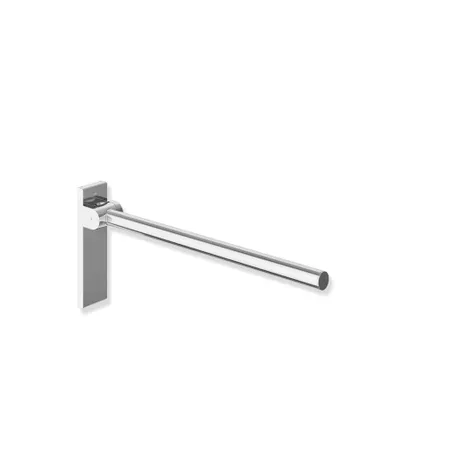

HEWI Mono hinged support rail, design (B), System 900
w/one horizontal, round gripping level, stainless steel, chrome, projection 600 mm, 256 mm high and 75 mm wide, rail dia. 33.7 mm, weight capacity up to 75 kg, wall plate made of polyamide w/integrated steel core and cover made of chrome stainless steel, install. w/non-corrosive, tested HEWI fixing material (to be ordered separately). produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices.
Show more w/one horizontal, round gripping level, stainless steel, chrome, projection 600 mm, 256 mm high and 75 mm wide, rail dia. 33.7 mm, weight capacity up to 75 kg, wall plate made of polyamide w/integrated steel core and cover made of chrome stainless steel, install. w/non-corrosive, tested HEWI fixing material (to be ordered separately). produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices.
EAN
4014885523642
article group
Hinged support rail
Function
hinged
Version
suitable for both sides
Size
600 mm
Wall plate
Design B
Variant
without additional function
Assembly
fixed
Material
Chrome
Hinged support rail Mono, design (B), System 900
- with one horizontal, round gripping level
- can be folded upwards and folded downwards with braked movement
- 600 mm projection, 256 mm high and 75 mm wide, 33.7 mm rail diameter
- weight capacity up to 75 kg
- made of stainless steel, chrome
- wall plate made of polyamide with integrated steel core and cover made of chrome stainless steel
- for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of supply
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- with one horizontal, round gripping level
- can be folded upwards and folded downwards with braked movement
- 600 mm projection, 256 mm high and 75 mm wide, 33.7 mm rail diameter
- weight capacity up to 75 kg
- made of stainless steel, chrome
- wall plate made of polyamide with integrated steel core and cover made of chrome stainless steel
- for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of supply
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
Design awards
Awarded by
Downloads
| 2D drawing | DXF | |
| 3DF | DXF | |
| Ordering aid HEWI_Ordering-aid_Height-adjustable-plate.pdf | ||
| Drilling pattern | JPG | |
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| Ausschreiben.de | Link | |
| BIM | Link | |
| Colour Chart | Link | |
| Installation video 1 | Link |
