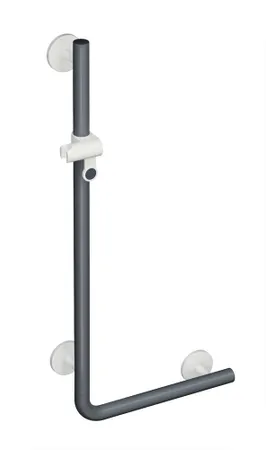

L-shaped support rail with shower head holder, special length

Article number 950.33.2S91 92

HEWI L-shaped support rail with shower head holder System 800 K
made of high-quality polyamide, rail and gripping area of the shower head holder according to HEWI colour chart, Shower head holder, supports and roses made of high-quality polyamide in the HEWI colour 98 (signal white), with continuous, corrosion resistant steel core, vertical length made-to-measure from 600 mm to 1250 mm, horizontal lengths made-to-measure from 300 mm to 850 mm, 90 mm deep, rail diameter 33 mm, can be mounted in left hand or right hand position, including non-corrosive HEWI fixing material.
Recommendation! When ordering please clarify dimensions and/or features and options
Show more
Please indicate A1 and A1 when ordering.
L-shaped support rail with shower head holder System 800 K
- vertical and horizontal rails joined to form an L-shape, with shower head holder
- L-shaped support rail made of high-quality polyamide
- rail and gripping area of the shower head holder according to HEWI colour chart
- shower head holder, supports and roses made of high-quality polyamide in the HEWI colour 98 (signal white)
- with continuous, corrosion resistant steel core
- vertical length made-to-measure from 600 mm to 1250 mm, horizontal length made-to-measure from 300 mm to 850 mm, 90 mm deep, rail diameter 33 mm
- wall connection with discreet supports (diameter 18 mm) perpendicular to wall and flat roses
- rose diameter 80 mm, cap height 13 mm
- shower head holder can be continuously tilted and, after pulling or pushing a large lever, its height can be adjusted
- conical adapter on shower head holder makes it easier to hook in the handheld shower head
- suitable for shower heads of various manufacturers
- easy installation due to individually installed mounting plates made of high-quality stainless steel for hanging the L-shaped support rail
- can be mounted in left hand or right hand position
- including non-corrosive HEWI fixing material
- Please note when using with hanging seats: Compatibility check required.
- A detailed list of possible combinations of hand rails, L-shaped rails and shower handrails with matching hanging seats can be found in our online catalogue in the download area of the respective product.
Version
continuous steel core/ steel fixing roses
Size
Längenvariabel
Colour
92anthracite grey
Angle
90° L-shaped support rail
Material
Polyamide

L-shaped support rail with shower head holder, special length

Article number 950.33.2S91 92
