HEWI SENSORIC Electronic washbasin fitting


AQ1.12S20160

AQ 800

Available in: DEATFRUKBEPLNLLU
Distributors
Add to wishlist
Configure

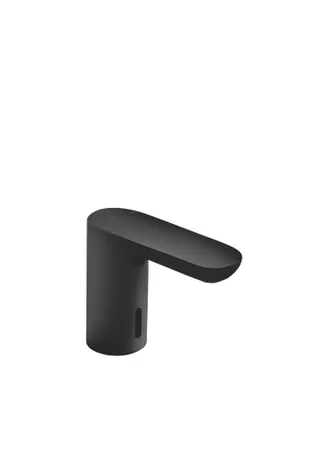

Picture shows item in colour DC (matt black)
Picture shows item in colour DC (matt black)



Product information

  • matt black powder-coated, round
  • Flow rate 5 l/min
  • Battery operation
  • Use of a standard long-life lithium battery (Type CR-P2)
  • for cold and mixed water
  • Cold water: 3/8" T-distributor necessary, see accessories Art. No. 65755
  • can be used with backflow preventer with dirt filter, see accessories art. no. 70247
  • Laminar jet controller with dynamic flow control 5 l/min, angle adjustable and anti-theft protection
  • adjustable, active, nuisance tripping-resistant infrared sensors
  • Electronic module with adjustable sensing range, hygiene flushing, continuous flushing and cleaning mode
  • Sensor parameters preset in the factory: after-run time: approx. 1-2 s, continuous running: max. 4 min, sensing range: 200 mm, cleaning mode: 60 s, hygiene flushing is deactivated
  • asymmetrical sensing range, stable object detection
  • settings and service also possible by means of app via smartphone, see accessories Art. No. 65713
  • safety shutdown in the event of failure of the operating voltage, user-defined settings are retained
  • without temperature adjustment lever: hygienic, vandal and misuse resistant
  • the preset temperature lies within the comfort zone from 30°C to 36°C
  • Temperature settings and adjustment can be easily made during installation due to side access
  • Connection via flexible pressure hoses with woven-in hot-cold marking 450 mm long, G 3/8"
  • integrated dirt trap screens
  • Brass fitting body
  • 118 mm high, projection 158 mm
  • rigid outlet
  • not including waste fittings
  • Noise class 1
  • suitable for thermal disinfection according to WRAS
  • conforms EN 15091
  • WELL Label in preparation

Technical specifications

Material and colour
Surface
DC
Alternative surface
Chr
Features

Certificates

  • HEWI sensoric

Downloads

HEWI colour chart
WELL Certificate
WRAS Certificate
Exploded view, year of construction since 01.04.2021
Operating instructions sensor setting (de, en, fr, nl, it, es, pl)
Installation instructions (de, en, fr, nl, it, es, pl)
2D drawing
Product Data Sheet
Tender specifications
Download everything

Design Awards

  • iF design award 2017
  • German Design Award 2018 - Winner
Technical information subject to alteration
