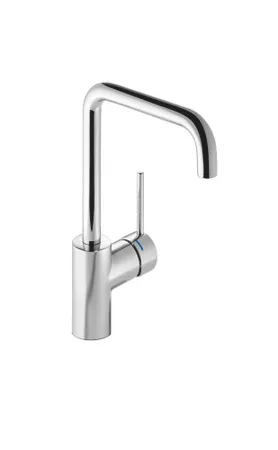

HEWI Single lever washbasin mixer tap


AQ1.12M10440

AQ 477/801

Available in: DEATFRUKBEPLNLLU
Distributors
Add to wishlist
Configure







Product information

  • high-quality chrome-plated, round tube
  • Flow rate 5 l/min
  • Ceramic cartridge Kerox K-35B, pressure resistant up to 35 bar
  • Laminar jet controller with dynamic flow control 5 l/min, anti-theft protection
  • Connection via flexible pressure hoses with woven-in hot-cold marking 450 mm long, G 3/8
  • Brass fitting body
  • open operating lever with hot-cold marking
  • 270 mm high, projection 187 mm
  • Swivel outlet, optionally lockable
  • not including waste fittings
  • Noise class 1
  • suitable for thermal disinfection according to WRAS
  • WRAS certified
  • with WELL label
  • for washbasins, a minimum distance of 70 mm between tap hole and wall is required

Technical specifications

Material and colour
Surface fitting
Chr
Features

Downloads

HEWI colour chart
WELL Certificate
WRAS Certificate
Exploded view, year of construction since 01.01.2017
Installation instructions (de, en, fr, nl, it, es, pl)
Care tips (de, en, fr, nl, it, es, pl)
Maintenance outlet exchange (de, en, fr, nl, it, es, pl)
2D drawing
3D drawing
Product Data Sheet
Tender specifications
Download everything

Design Awards

  • iF design award 2017
  • German Design Award 2018 - Winner
Technical information subject to alteration
