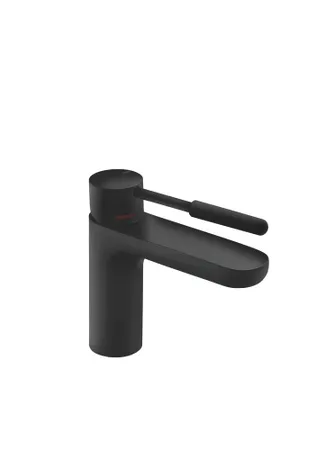

HEWI Single lever washbasin mixer tap


AQ1B12M10260

Matt edition

Available in: DEATFRUKBEPLNLLU
Distributors
Add to wishlist
Configure
Picture shows item in colour CV (matt black - matt black)
Picture shows item in colour RN (matt black - white matt)
Picture shows item in colour CV (matt black - matt black)
Picture shows item in colour RN (matt black - white matt)
Picture shows item in colour CV (matt black - matt black)
Picture shows item in colour CV (matt black - matt black)



Product information

  • matt black powder-coated, round, with coloured gripping element made of polyamide in HEWI colours 98 (signal white), or 90 (jet black), matt
  • Flow rate 5 l/min
  • Ceramic cartridge Kerox K-35OP, pressure resistant up to 35 bar
  • Laminar jet controller with dynamic flow control 5 l/min, angle adjustable and anti-theft protection
  • Connection via flexible pressure hoses with woven-in hot-cold marking 450 mm long, G 3/8
  • Brass fitting body
  • open operating lever with hot-cold marking
  • 141 mm high, projection 159 mm
  • rigid outlet
  • not including waste fittings
  • suitable for thermal disinfection according to WRAS
  • Noise class 1
  • WRAS certified
  • WELL Label in preparation

Technical specifications

Material and colour
Surfaces
RN
CV
Features

Downloads

HEWI colour chart
WELL Certificate
WRAS Certificate
Exploded view, year of construction since 01.04.2021
Installation instructions (de, en, fr, nl, it, es, pl)
2D drawing
Product Data Sheet
Tender specifications
Download everything

Design Awards

  • iF design award 2017
  • German Design Award 2018 - Winner
Technical information subject to alteration
